217056 - Szerelőlap

217056 - Szerelőlap

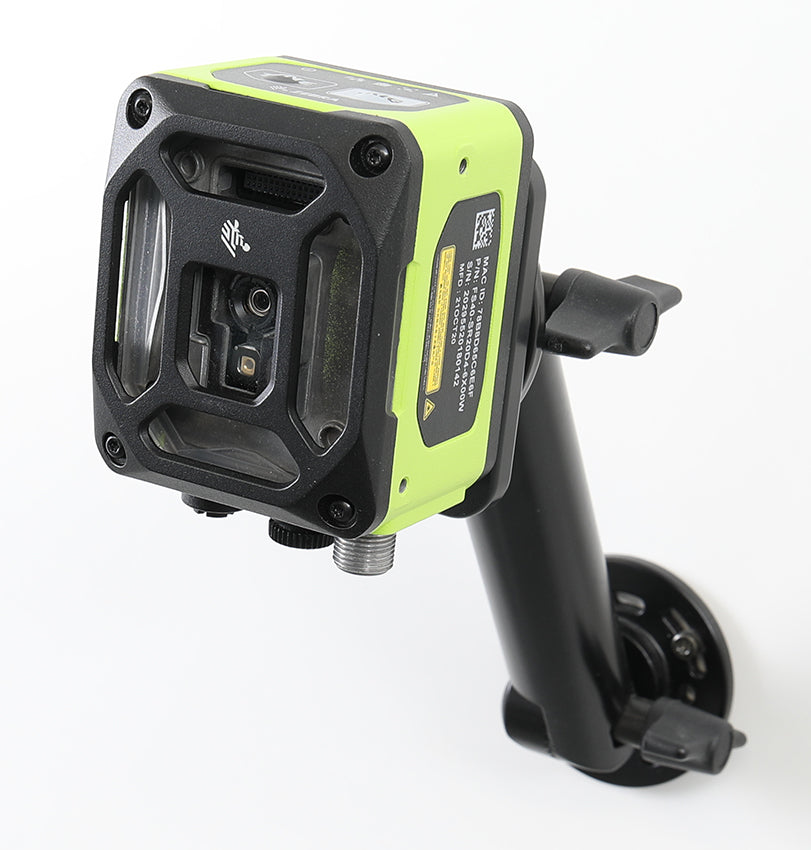

Zebra Machine Vision készülékhez.

15.750 Ft
15.750 Ft
Akciós Elfogyott

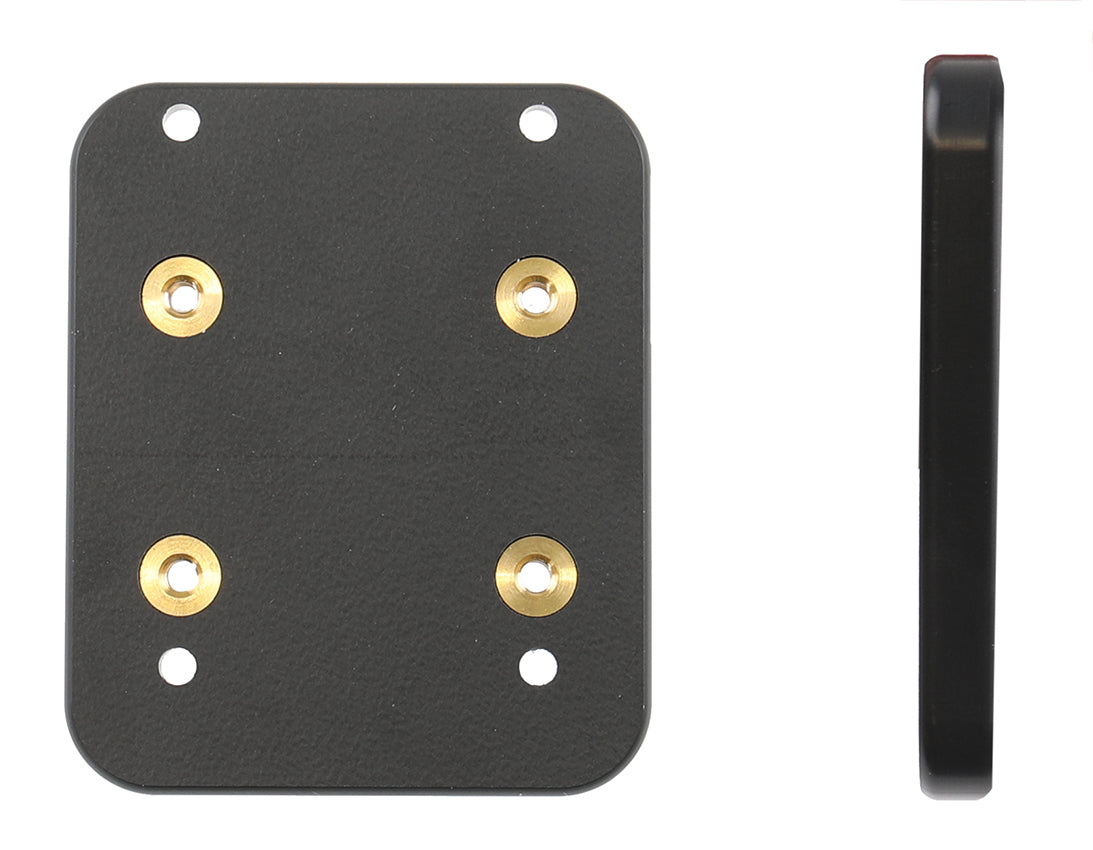

Robust mounting plate for installing of Zebra industrial scanners on Brodit Pedestal mount. For professional everyday use in rought environments. Holds your equipment firmly in place, very strong design. Provides for an efficient, safe and confortable working environment with your device within easy sight and reach.

Made of high grade ABS/Acetal plastic. Color: black. Made in Sweden.
  • Egy éves garancia
Minden részlet megtekintése

TOVÁBBI INFORMÁCIÓK

Beszerelés lépései

alternatetext alternatetext alternatetext alternatetext

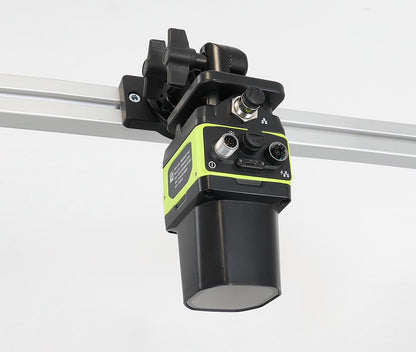

Please read all of the instructions and look at the pictures before attaching the mount. The pictures show examples of how an assembly can be done. The device can be placed in any direction provided the threaded holes match the holes in the mount.

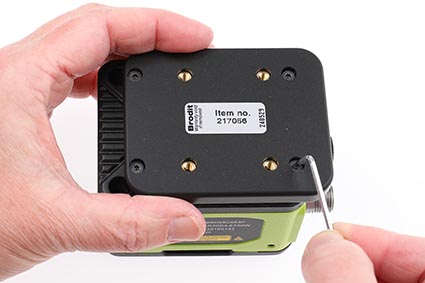

1. Use the small screws to mount the unit to the mounting plate.



2. Place the Pedestal top mount so that the holes on the mounting plate line up. Secure with the included screws.

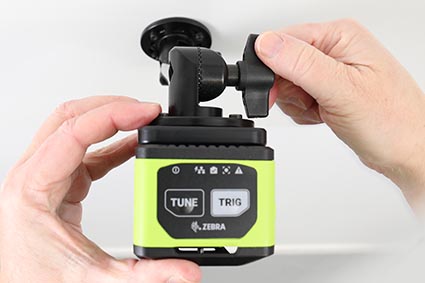

3. Screw back the top of the Pedestal mount.

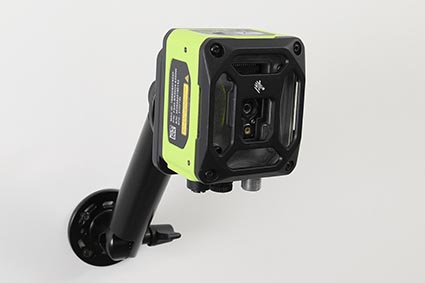

4. The product is in place.

Használati útmutató letöltése

Kompatibilis modellek

  • Zebra FS40
  • Zebra VS70
