217170 - Rögzítő kiegészítők

217170 - Rögzítő kiegészítők

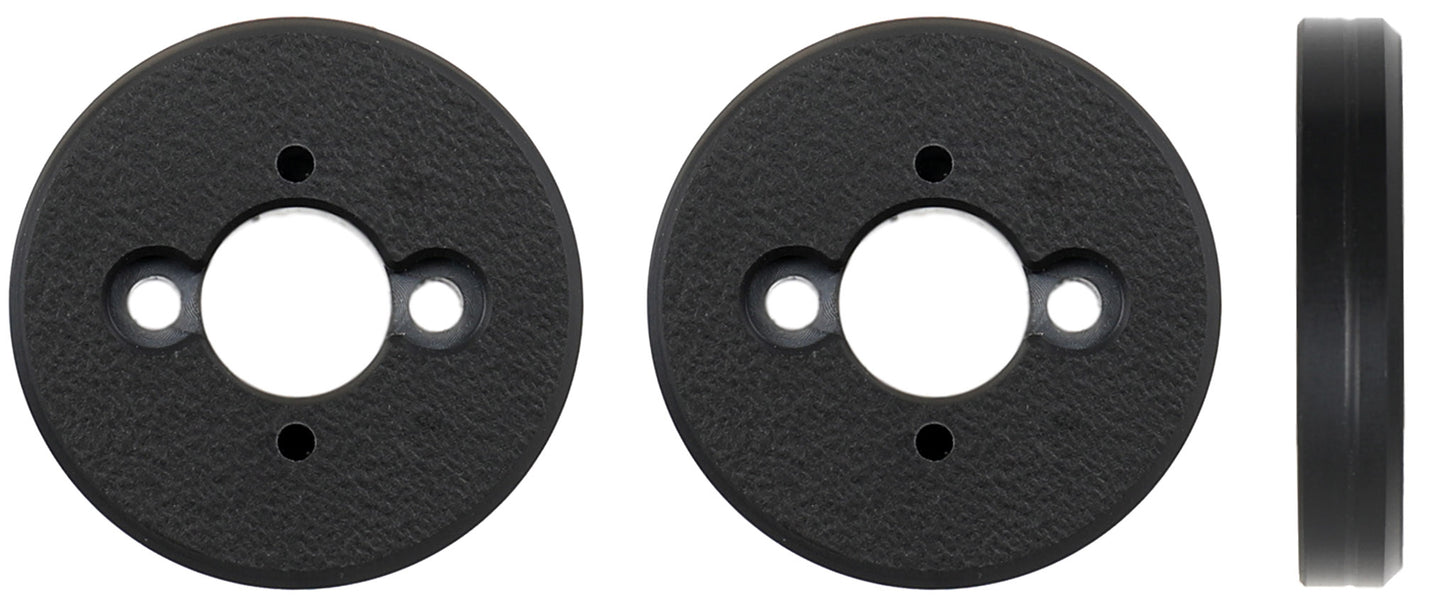

Spacer plates for label/media rolls for use on Brodit printer mount with paper roll function. Fits rolls with minimum inner dimension 38 mm. Size: Outside diameter 37 mm, 7 mm thickness.

11.990 Ft
11.990 Ft
Akciós Elfogyott

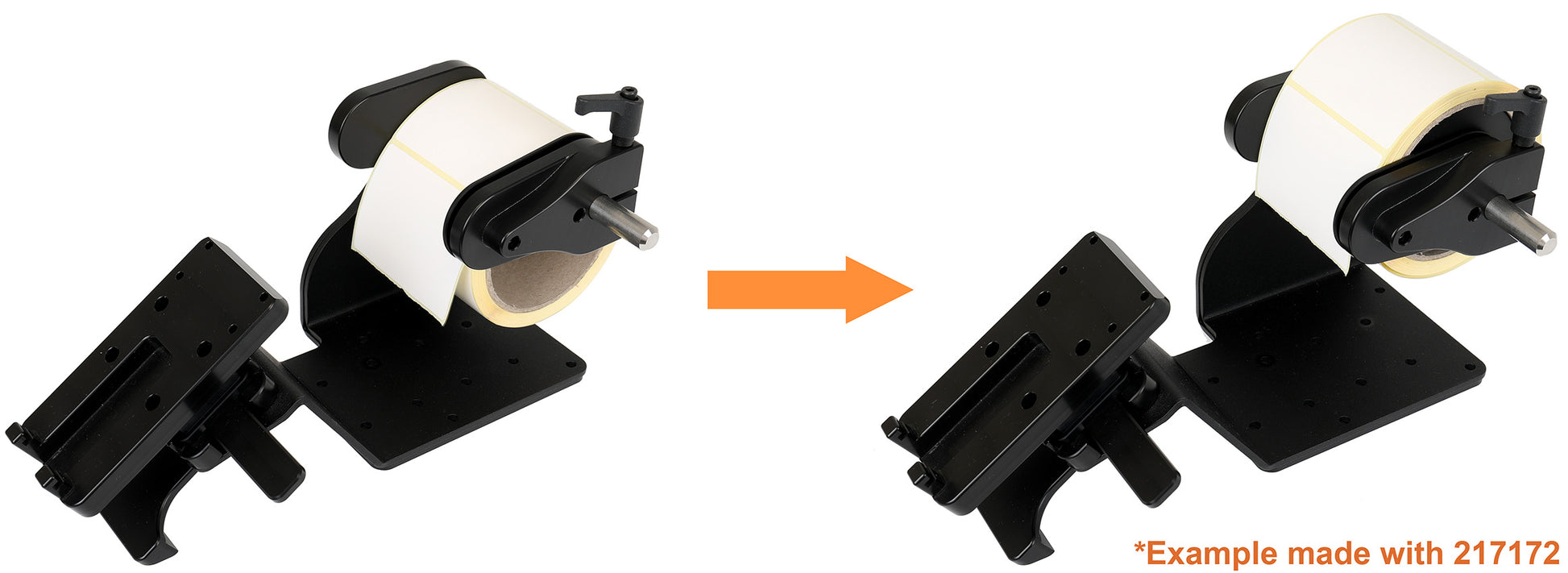

Spacer plates for label and media rolls designed for use with Brodit printer mounts with paper roll function. The plates raise the roll’s center position, allowing larger rolls to be used and ensuring a smoother feed from the roll to the printer.

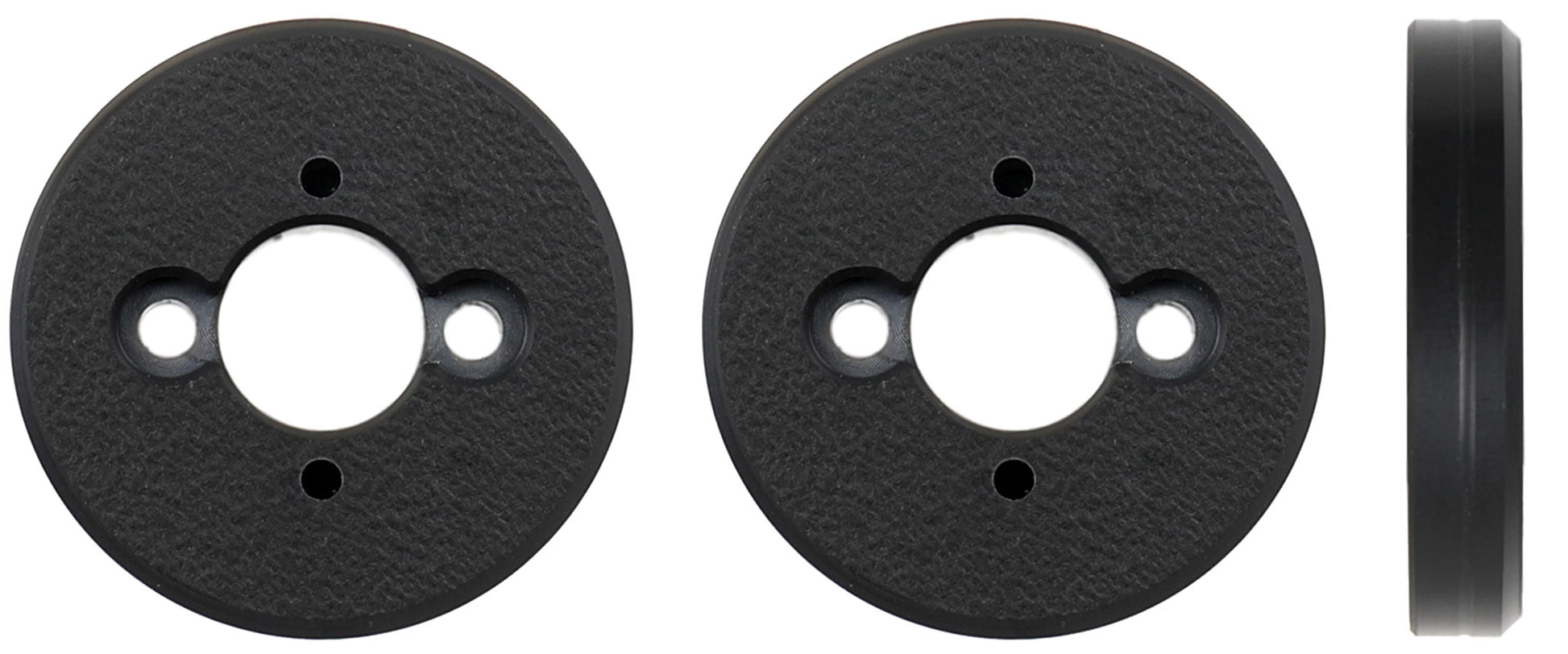

Outer dimensions: diameter 37 mm, thickness 7 mm.
Fits rolls with a minimum inner dimension of 38 mm.

Four screws for installation are included. Made of high-quality ABS plastic. Color: black. Made in Sweden.

  • Egy éves garancia
Minden részlet megtekintése

TOVÁBBI INFORMÁCIÓK

Beszerelés lépései

alternatetext alternatetext alternatetext alternatetext

Please read all of the instructions and look at the pictures before attaching the holder.

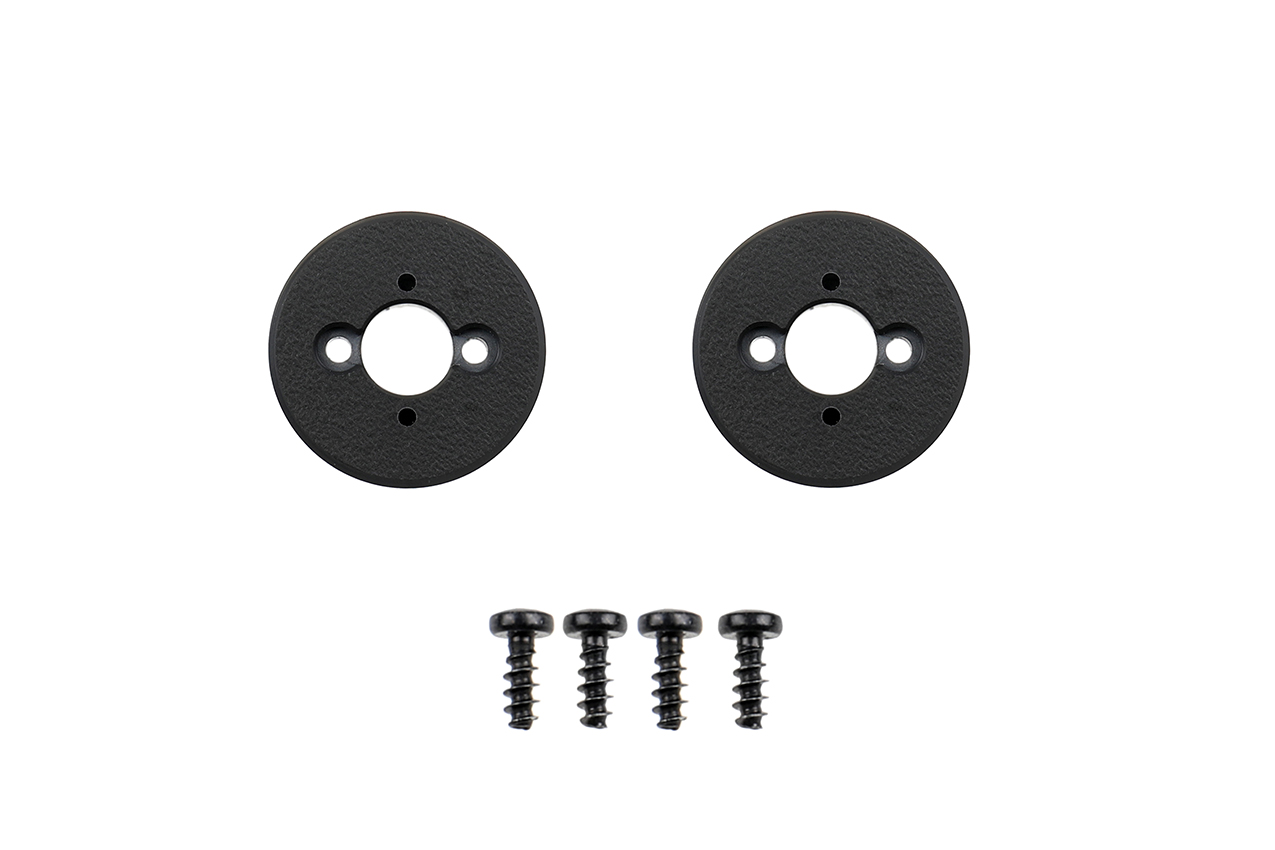

1. Note! Some older printer mounts may lack pre-drilled holes. If your mount does not have them, download the drilling instruction (PDF) at www.brodit.com/en/product/217170 Once you have verified that the mount has pre-drilled holes, or drilled them according to the instruction, take out the spacer plates and the supplied screws.

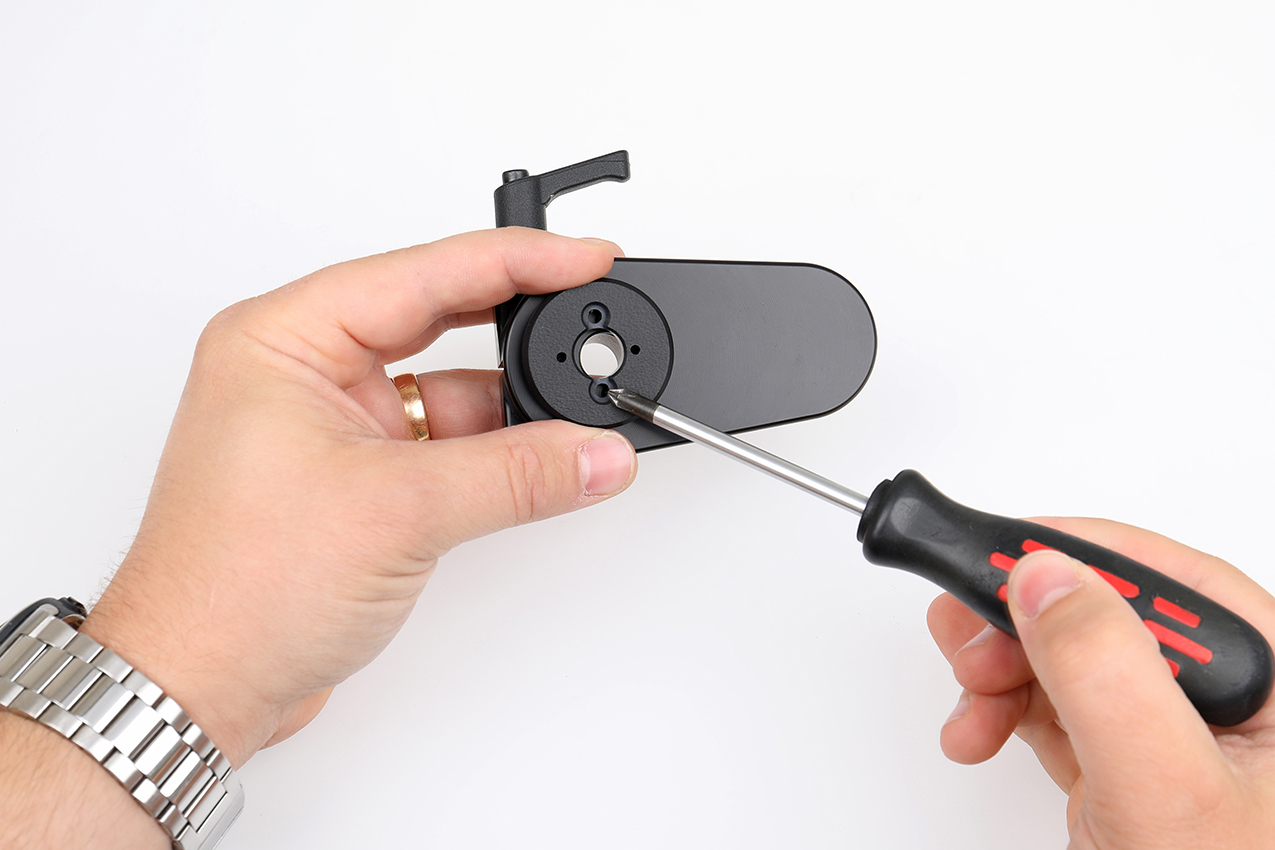

2. Place one of the spacer plates onto the paper roll side support as shown in the picture. Attach the plate using the supplied screws.

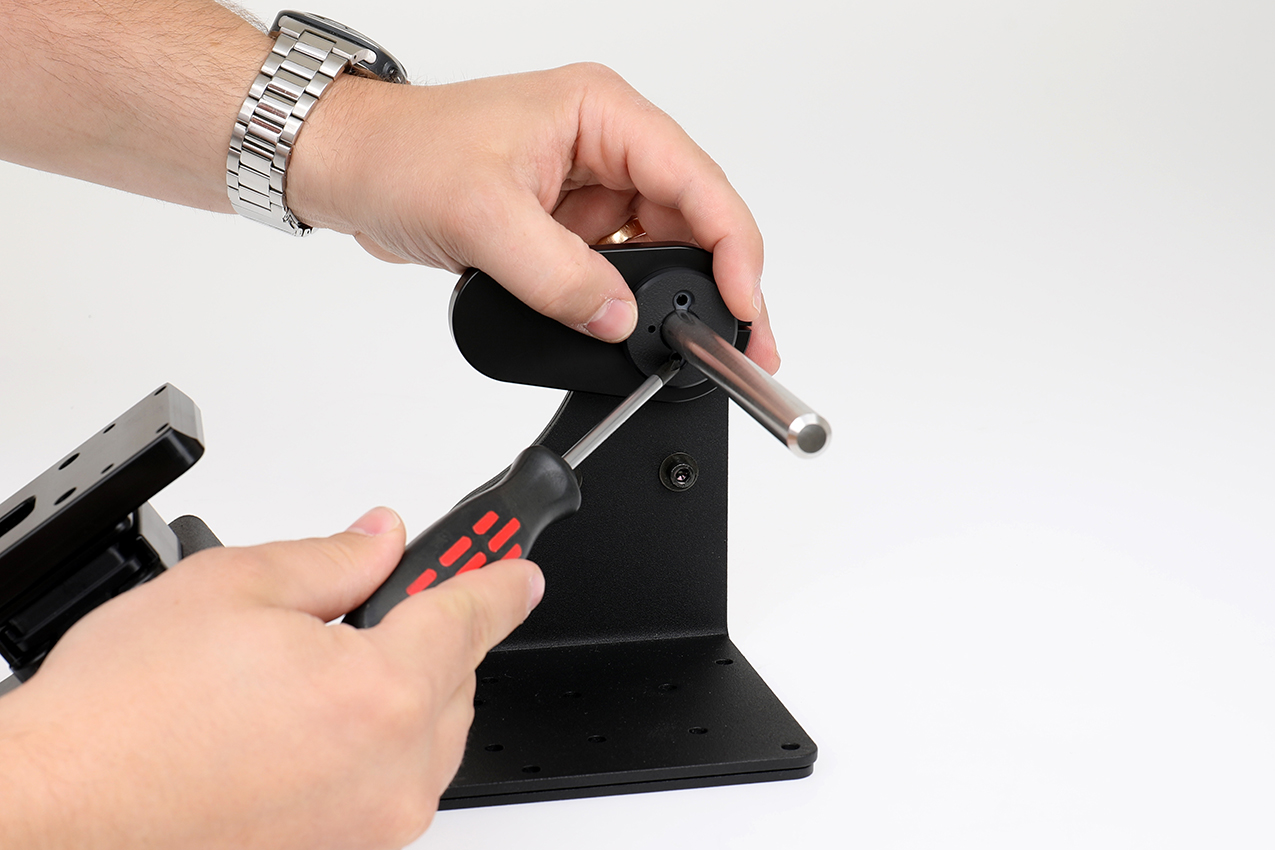

3. Place the other spacer plate onto the opposite side support as shown in the picture. Attach the plate using the supplied screws.

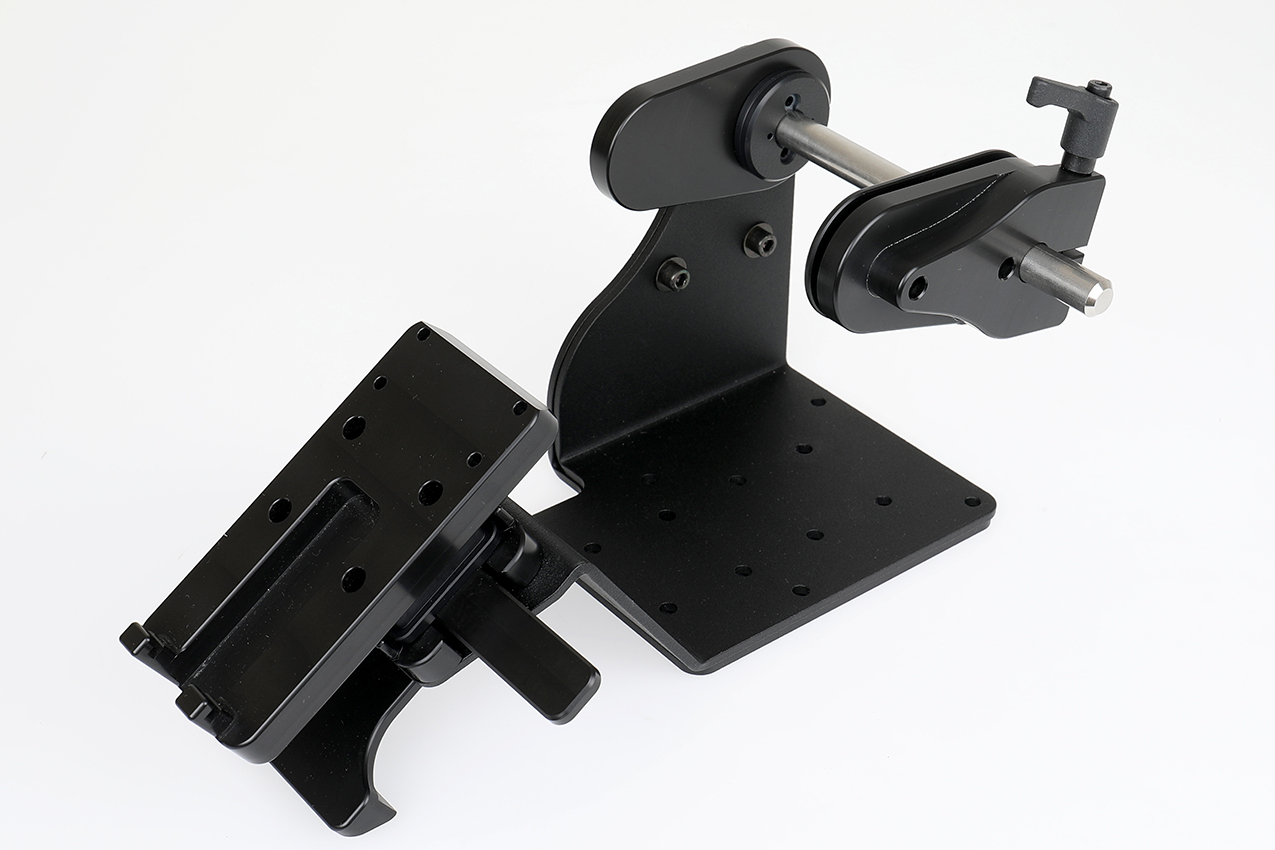

4. The installation is complete.



Használati útmutató letöltése

Kompatibilis modellek

  • Nincs megadott érték
