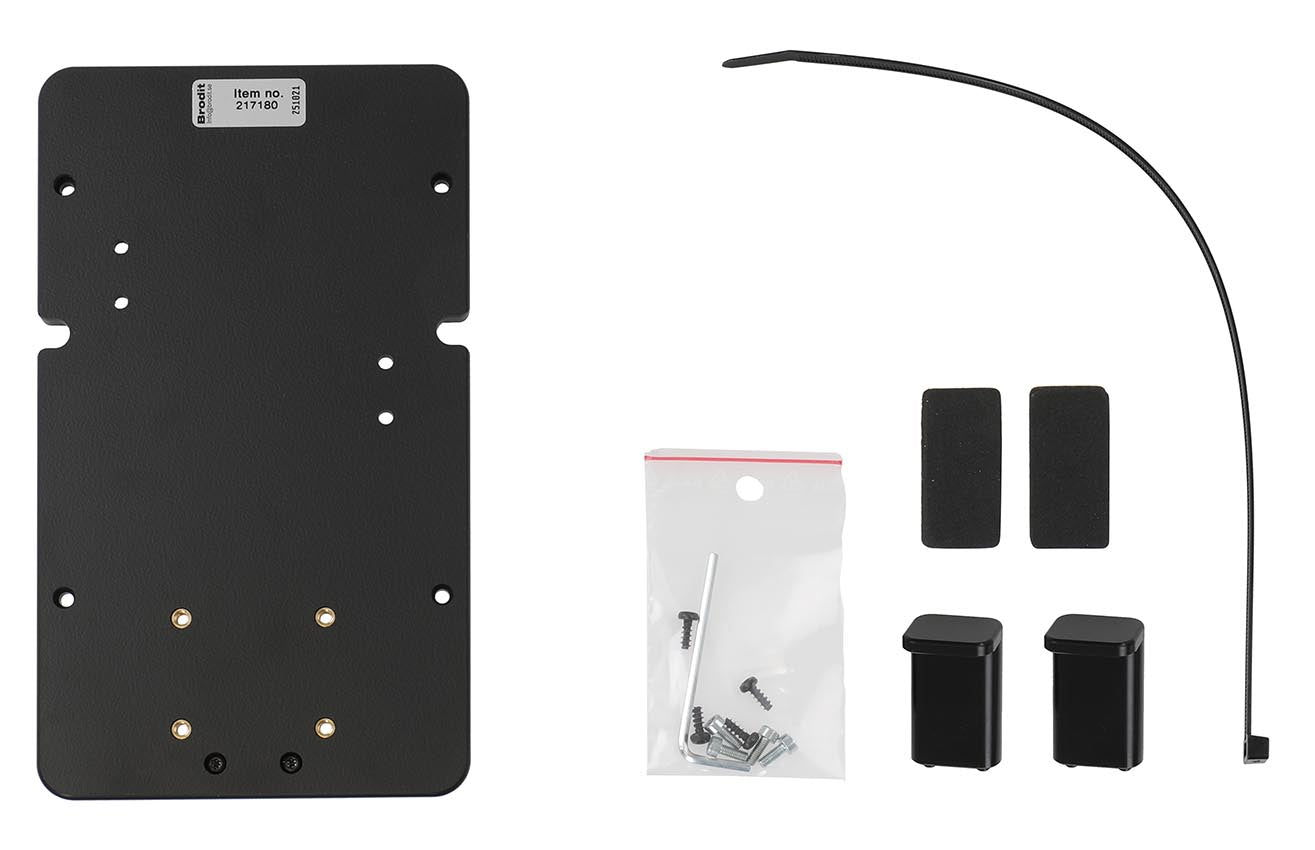

217180 - Mount - Rögzítő

217180 - Mount - Rögzítő

With AMPS holes.

24.500 Ft
24.500 Ft
Akciós Elfogyott
This printer mount offers a smart, stable, and space-efficient solution for installing your printer. The design has been carefully developed to combine functionality and convenience, making it easy to create a more organized and ergonomic workspace.

The mount adds only 7 mm in thickness, allowing the printer to sit close to the surface and take up minimal space – perfect for workplaces where every centimeter counts. The robust design ensures that the printer remains securely in place. Another advantage is the ability to secure cables neatly and safely, reducing the risk of tangling, wear, and accidental disconnections, while giving the installation a more professional and organized appearance.

The mount features an AMPS hole pattern, allowing for easy and flexible installation. It can be quickly attached to a pedestal mount on a pipe, rod, or any flat surface, depending on your needs and working environment.

Manufactured from high-quality ABS/Acetal plastic, the mount provides excellent strength, dimensional stability, and long service life. Color: black. Made in Sweden.
  • Egy éves garancia
Minden részlet megtekintése

TOVÁBBI INFORMÁCIÓK

Beszerelés lépései

alternatetext alternatetext alternatetext alternatetext

Please read all of the instructions and look at the pictures before attaching the mount.

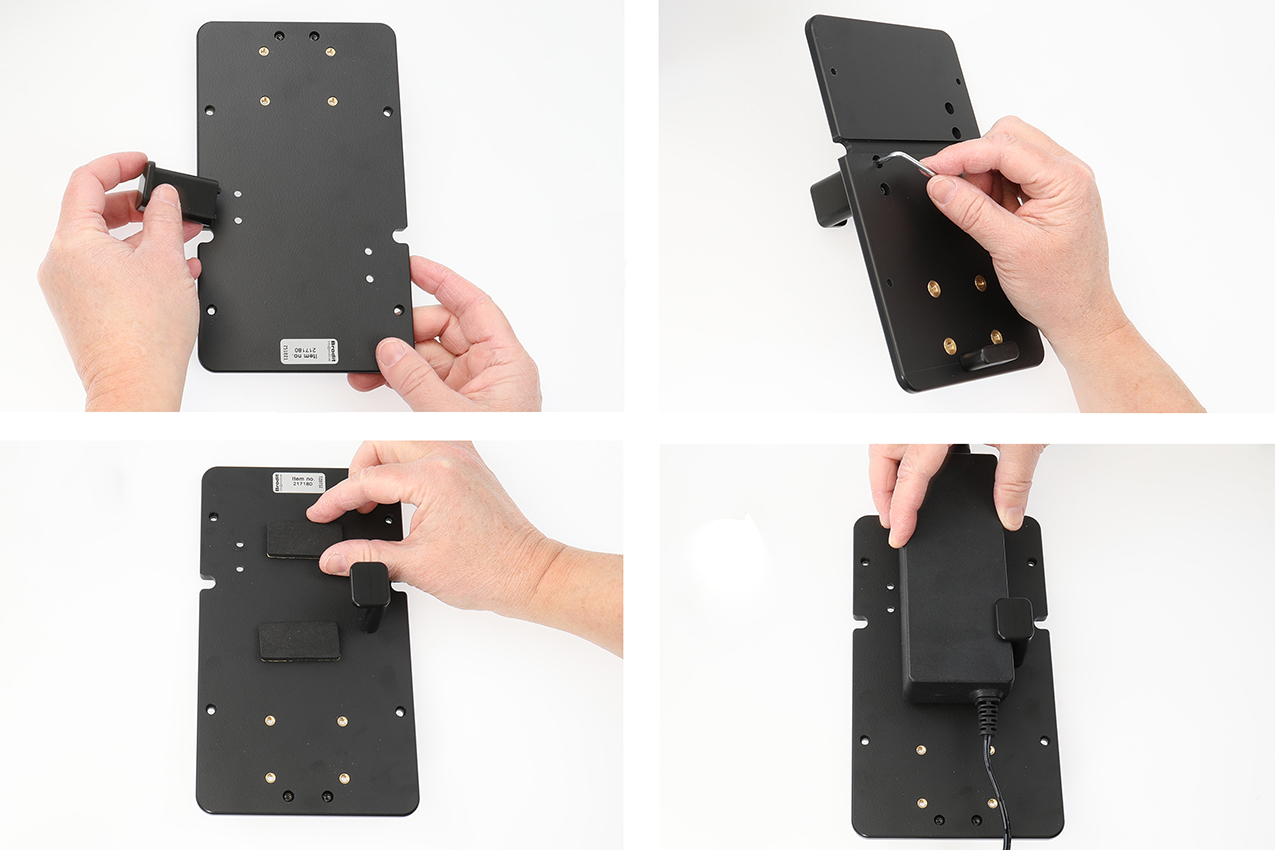

1. Screw a side support onto the flat side of the mount. Attach the foam pads to the mount. Put the charging box into place under the side support. It is important not to position the charging box to close to the AMPS holes.

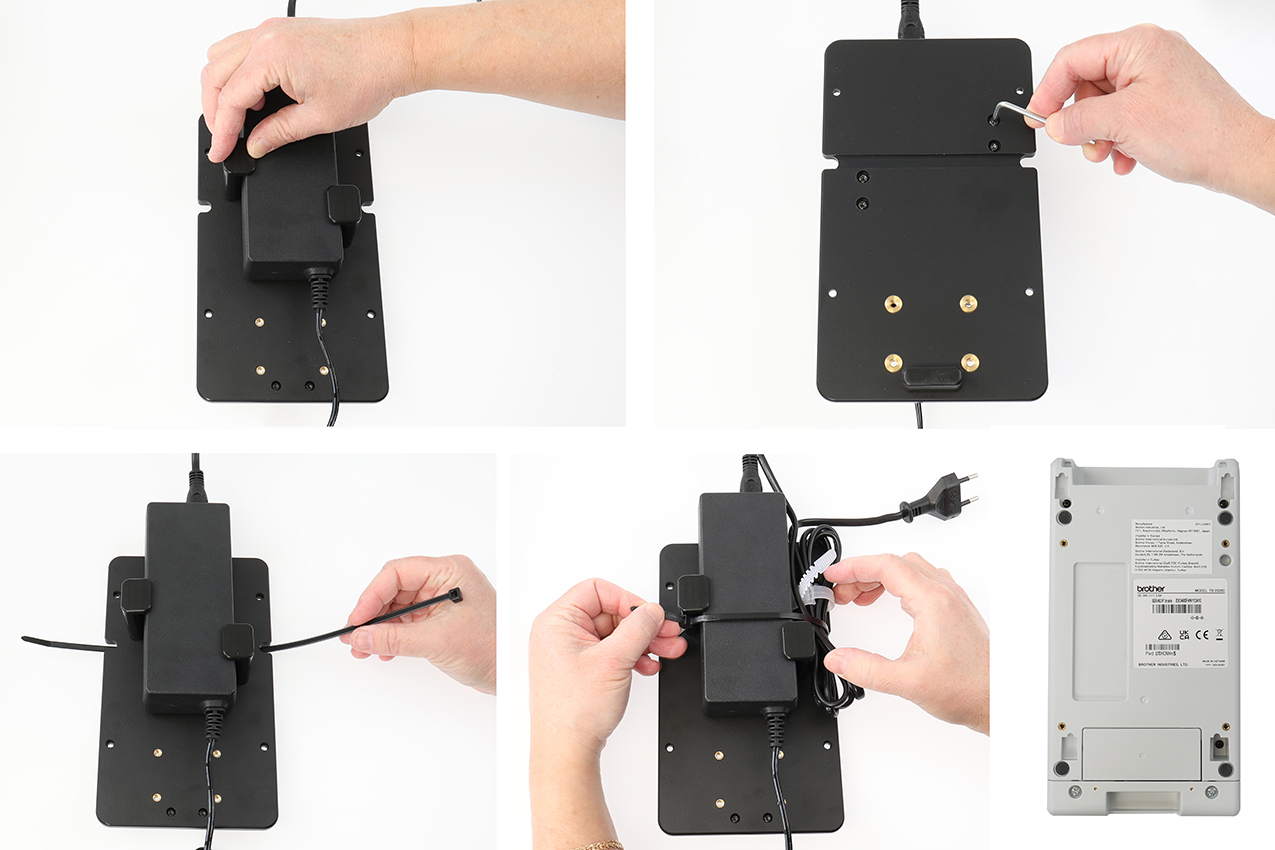

2. Put the other side support in place so it holds the charging box. Screw the side support into place. Place the cable tie in the slot and fasten the charging box and cables. Lay the printer back side up on the table.

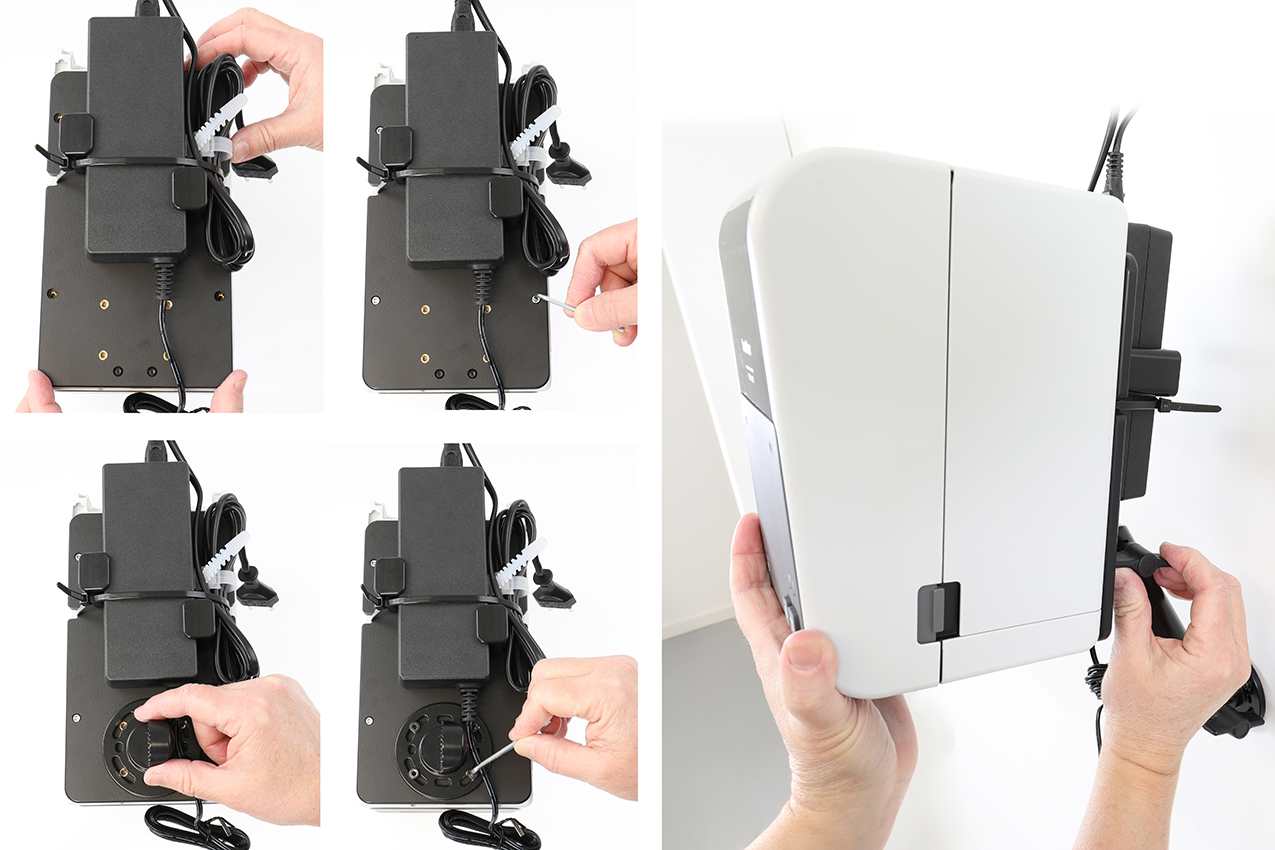

3. Place the mount onto the printer so the holes match. Attach the mount onto the printer with the four enclosed screws.

For installation onto a pedestal mount: Attach the pedestal mount top plate onto the mount. Attach the printer in place onto the pedestal mount.

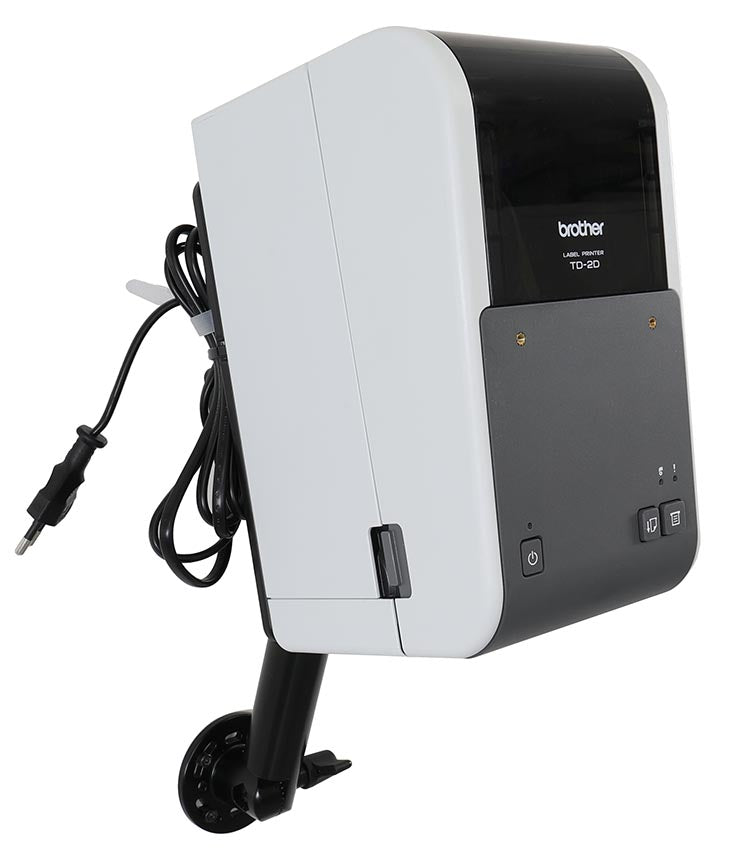

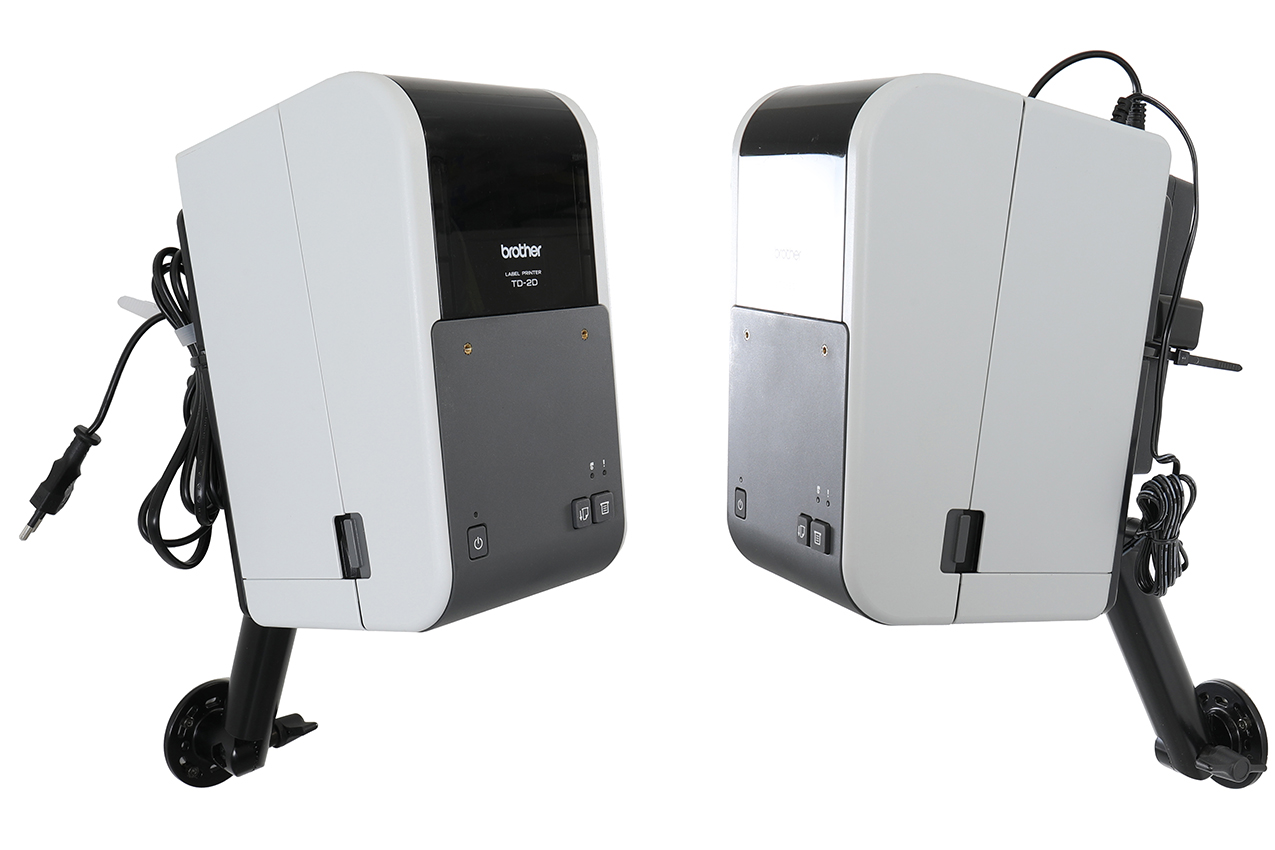

4. The mount is in place, with a printer in place.

Használati útmutató letöltése

Kompatibilis modellek

  • Brother TD-2310D
  • Brother TD-2320D
  • Brother TD-2320DSA
  • Brother TD-2320F
  • Brother TD-2350D
  • Brother TD-2350DSA
  • Brother TD-2350F
