217204 - Mount - Rögzítő

217204 - Mount - Rögzítő

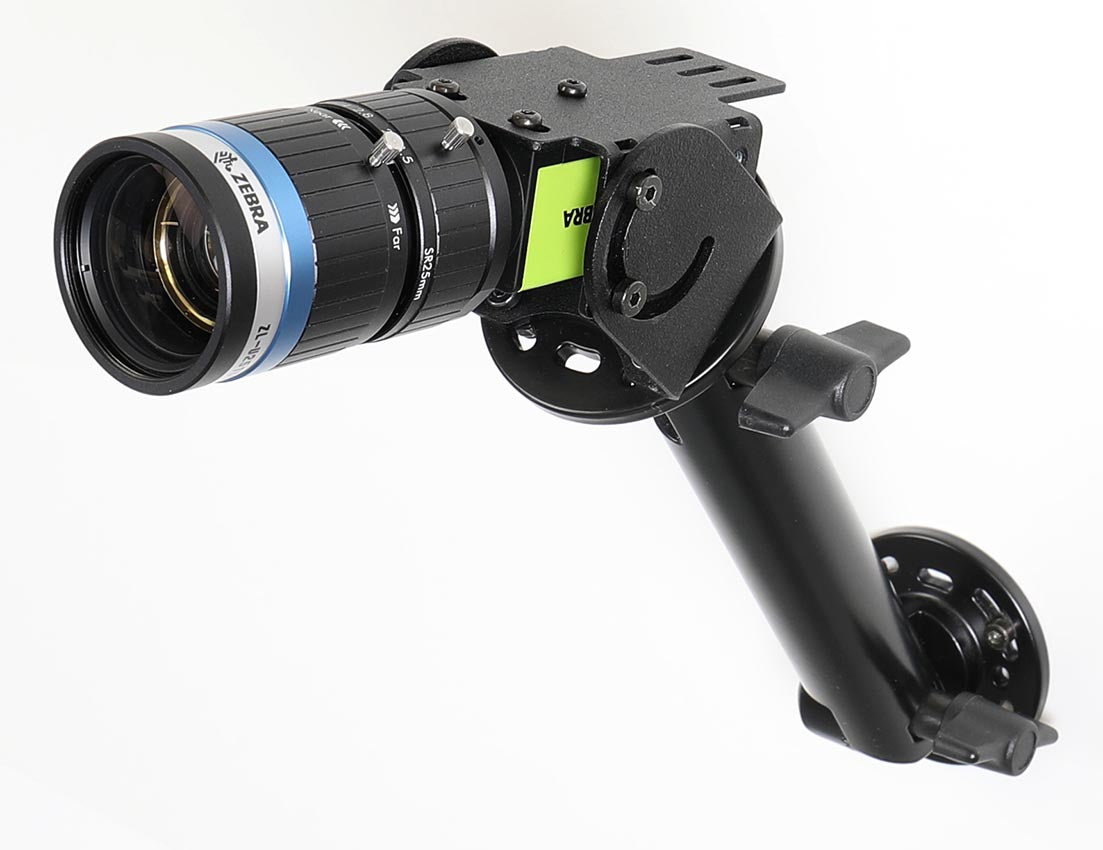

U-Bracket for Zebra Machine Vision.

59.990 Ft
59.990 Ft
Akciós Elfogyott
Robust mount for installing of Zebra industrial scanners on Brodit Pedestal mount or Bosch aluminium profiles. For professional everyday use in rought environments. Holds your equipment firmly in place, very strong design. Provides for an efficient, safe and confortable working environment with your device within easy sight and reach.

Made of metal. Color: Black. Made in Sweden.
  • Egy éves garancia
Minden részlet megtekintése

TOVÁBBI INFORMÁCIÓK

Beszerelés lépései

alternatetext alternatetext alternatetext alternatetext

Please read all of the instructions and look at the pictures before attaching the mount. The pictures show examples of how an assembly can be done. The device can be placed in any direction provided the threaded holes match the holes in the mount.

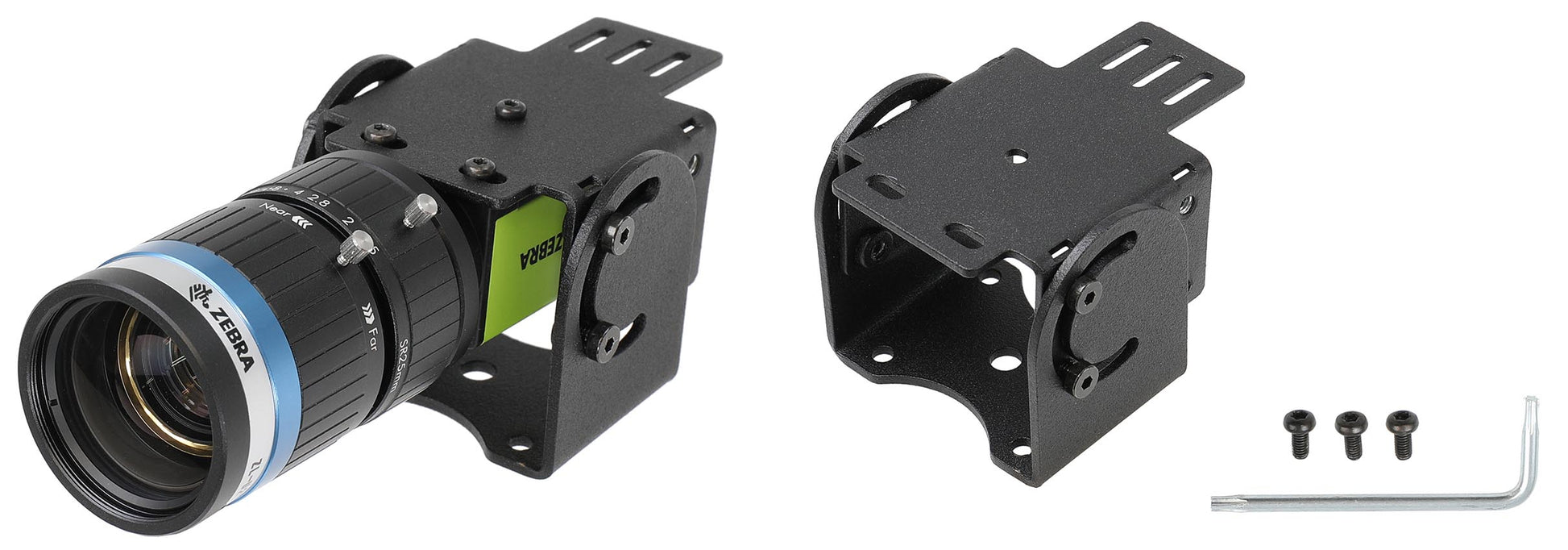

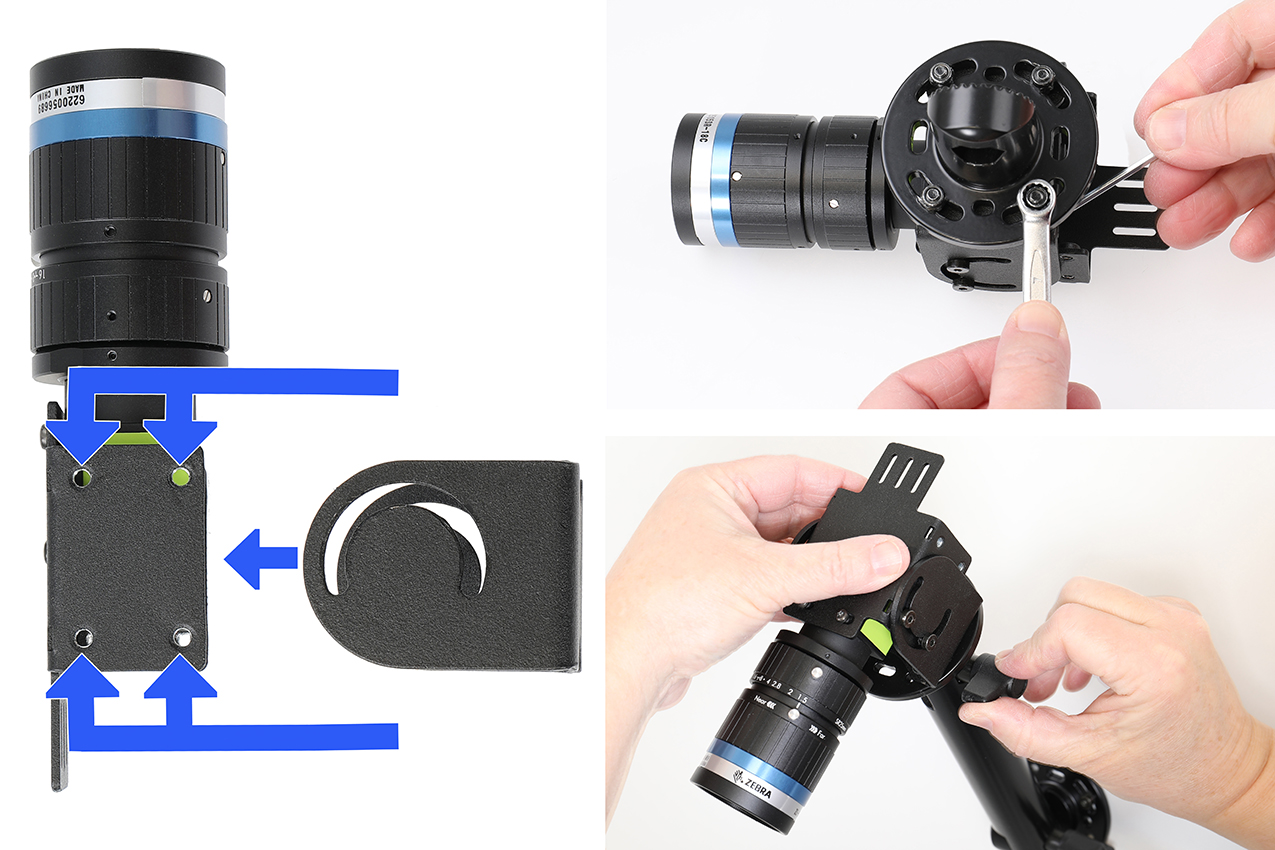

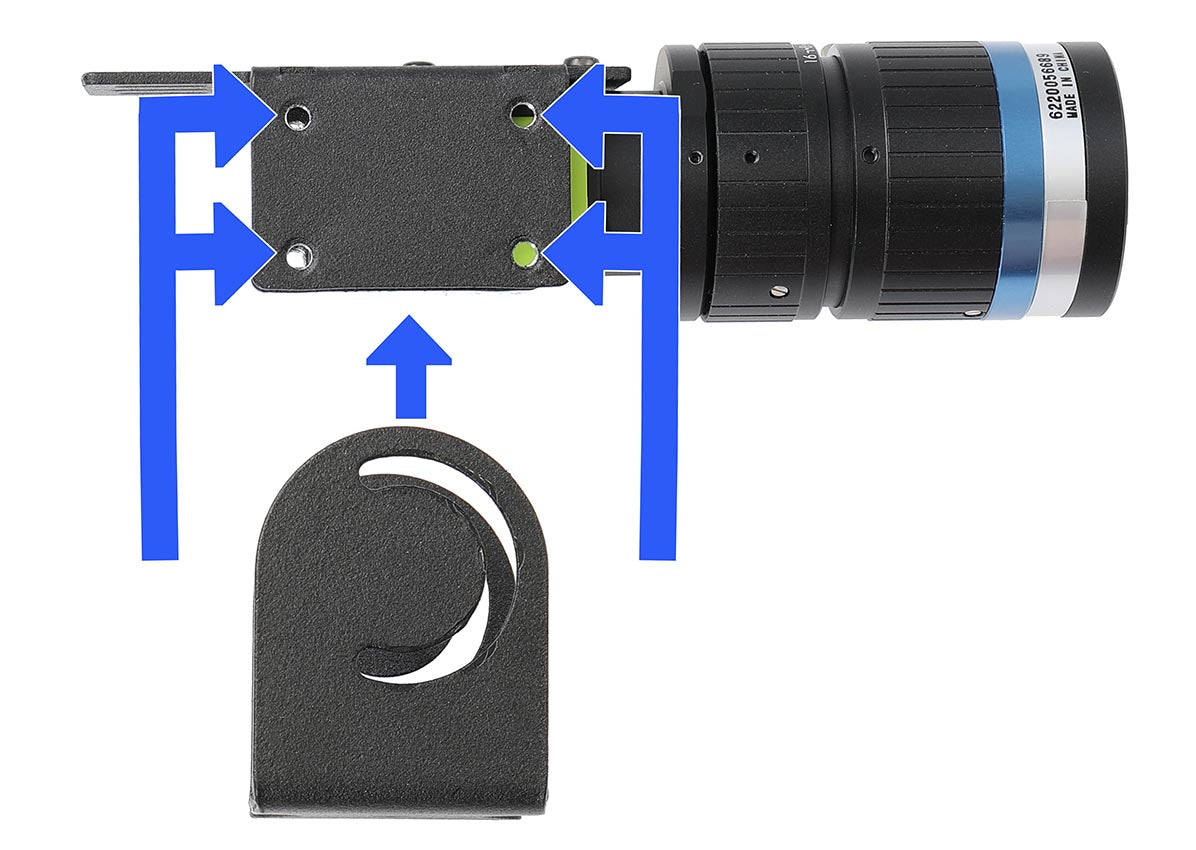

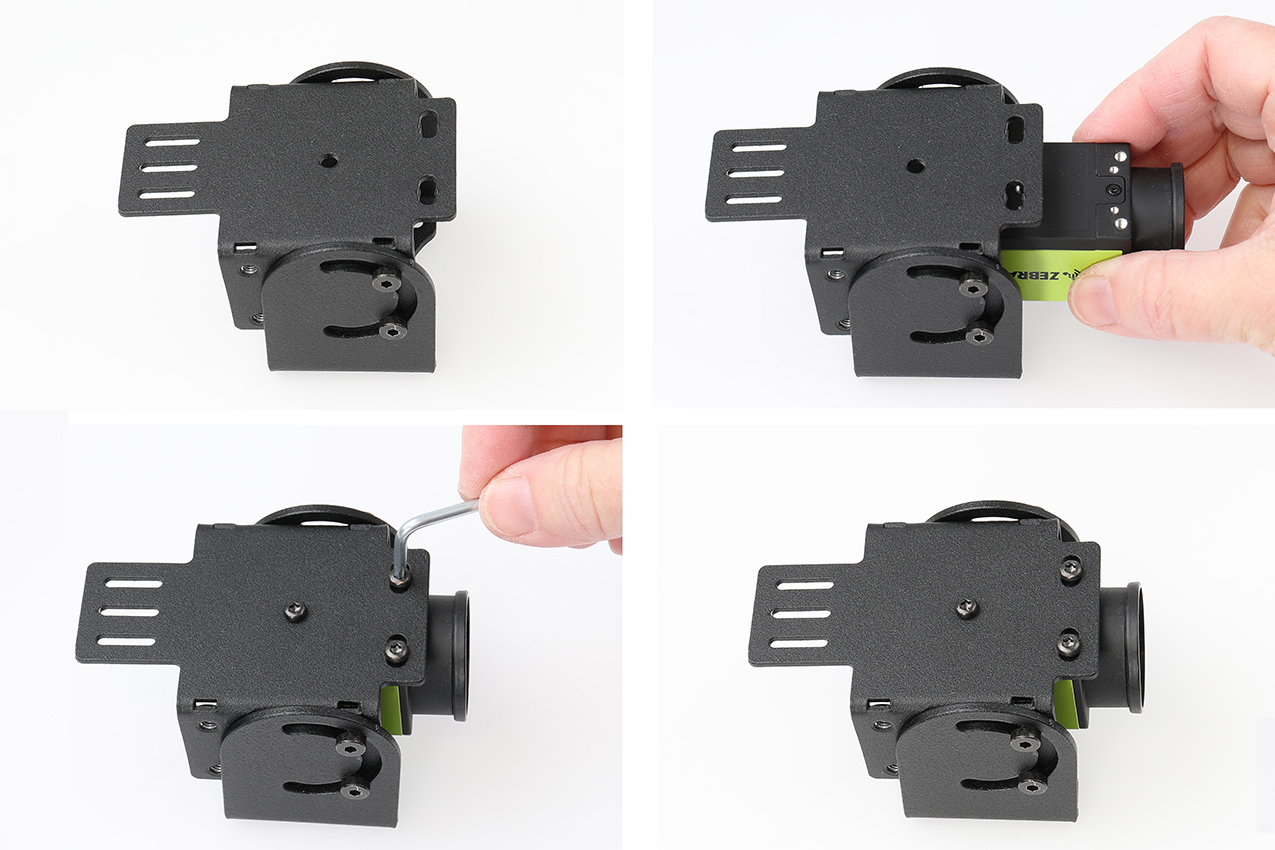

1. Position your Zebra device as shown in the image and fasten the device using the supplied screws.

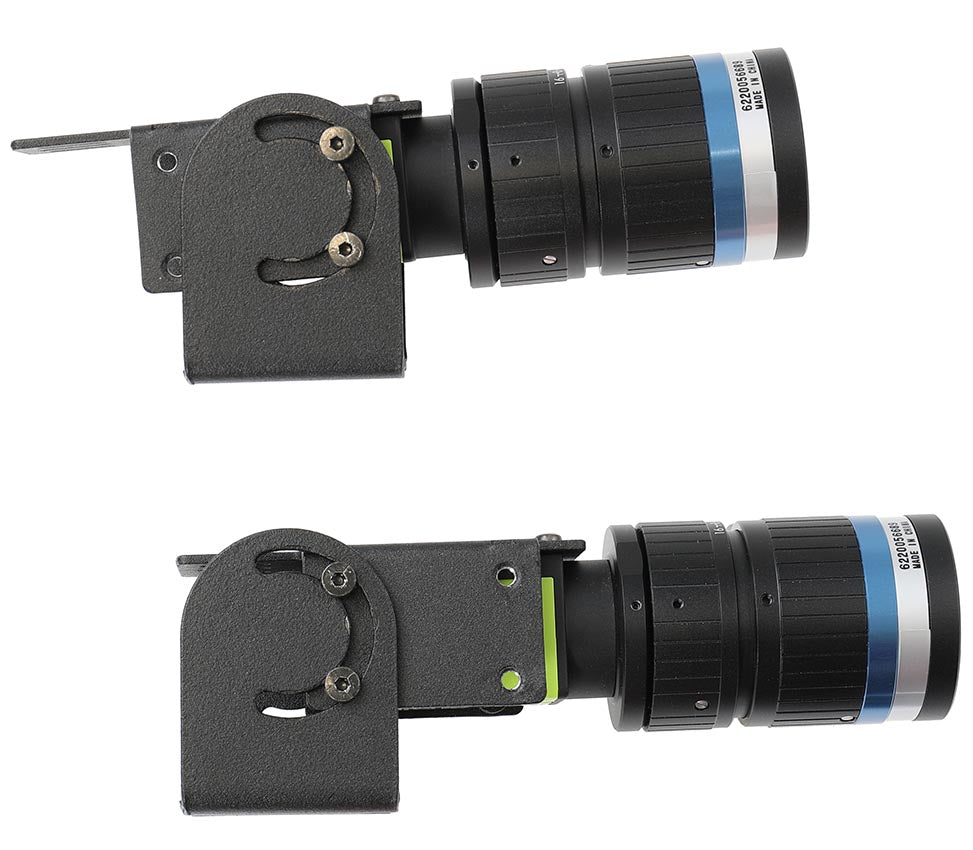

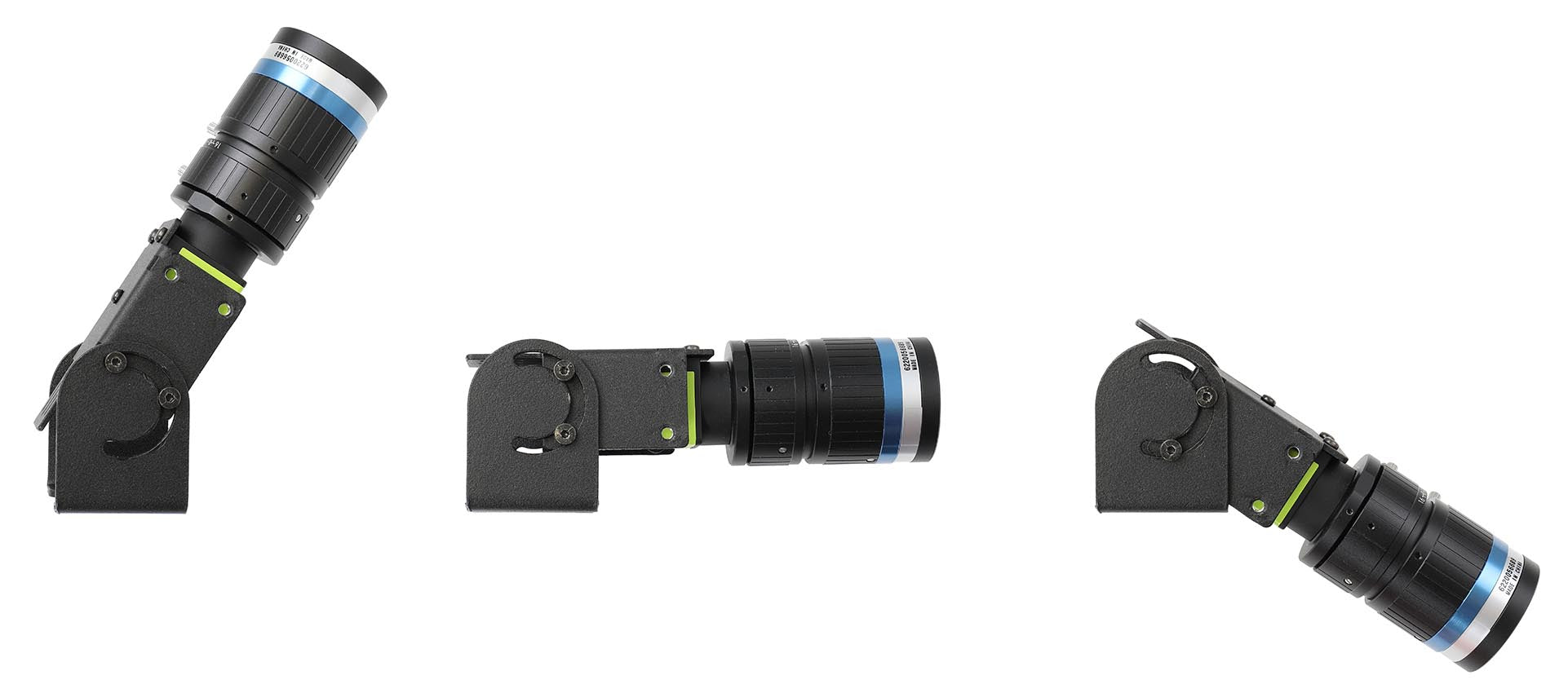

2. Position the angled part of the bracket so that the holes align. Adjust the angle, then fasten the angled part. On the back of the U-Bracket, mount your pedestal mount.

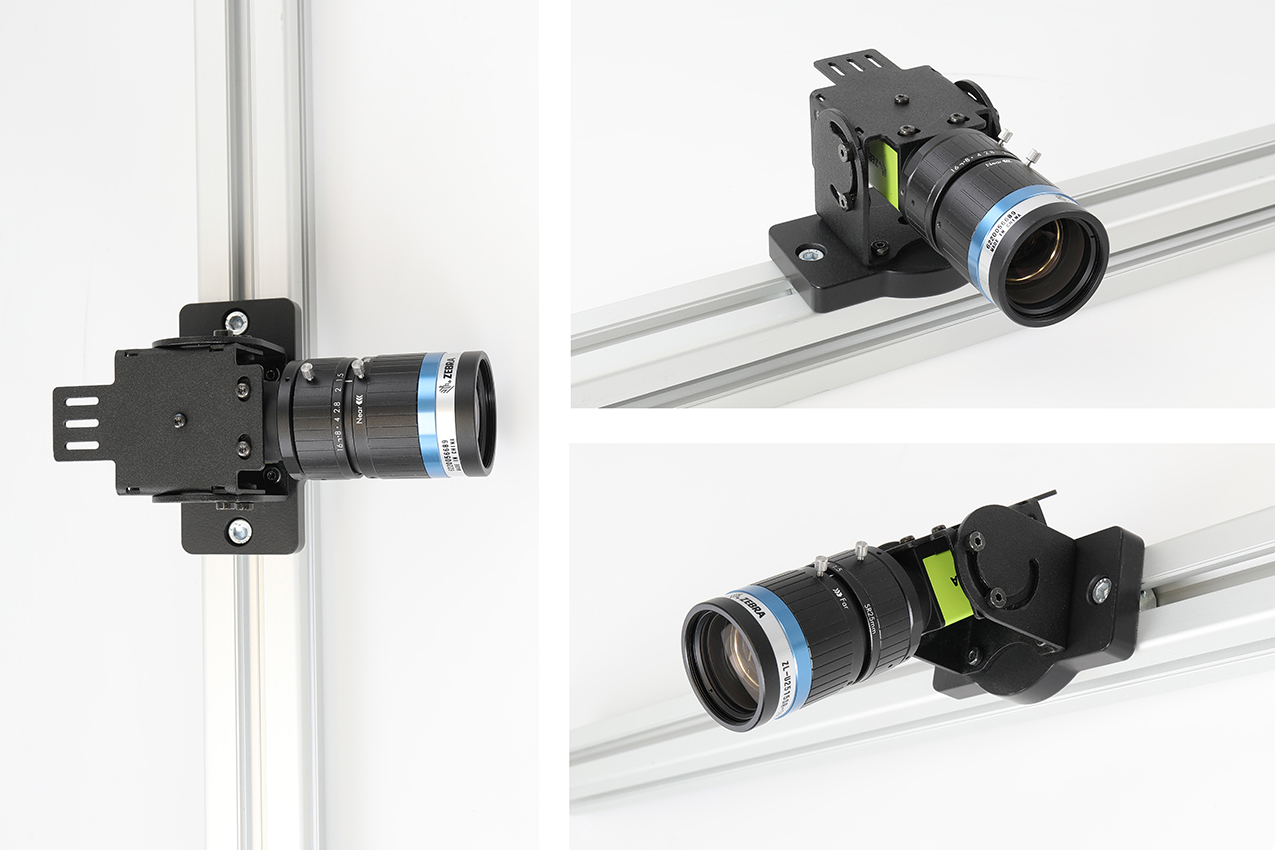

3. The product fully assembled on a Bosch aluminum profile.

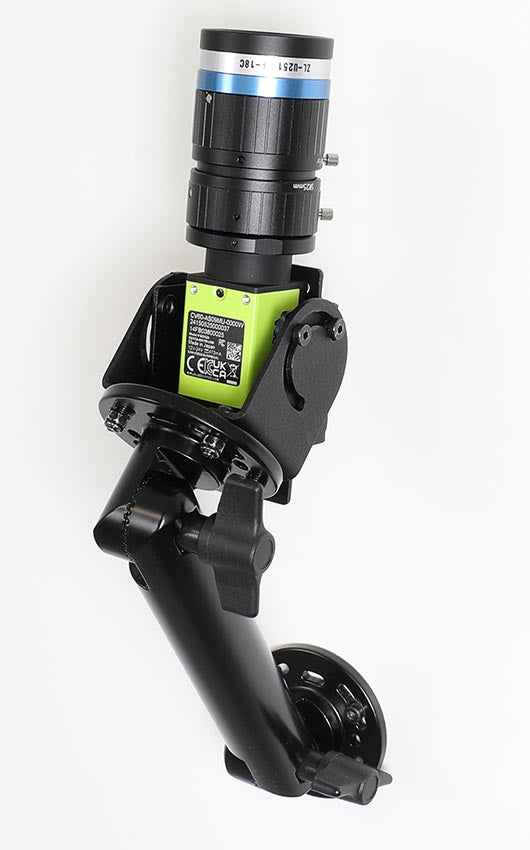

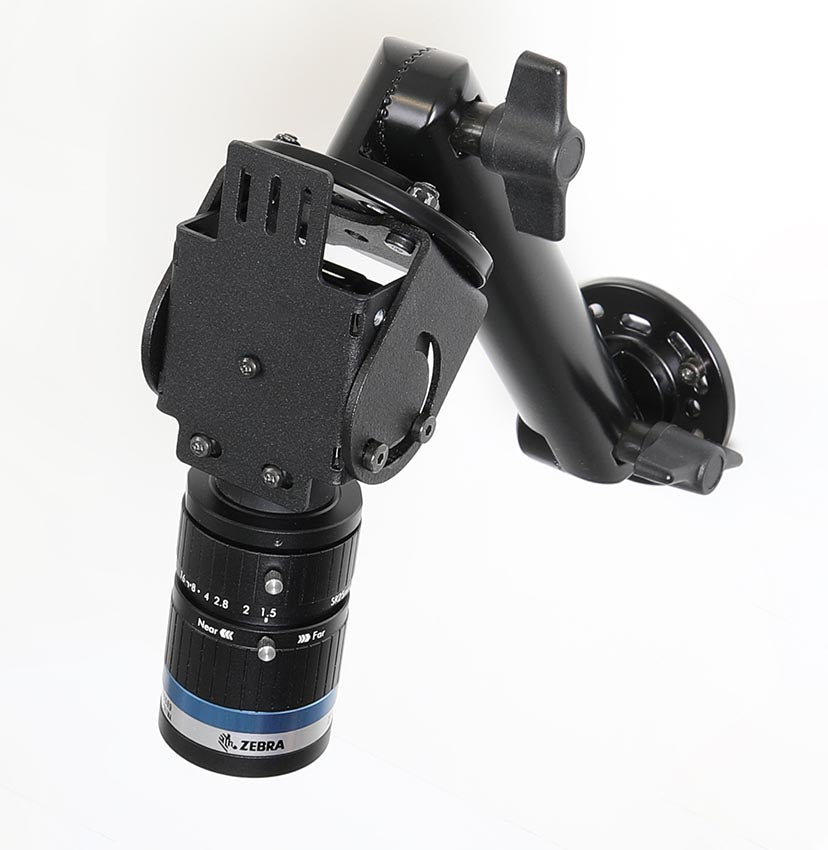

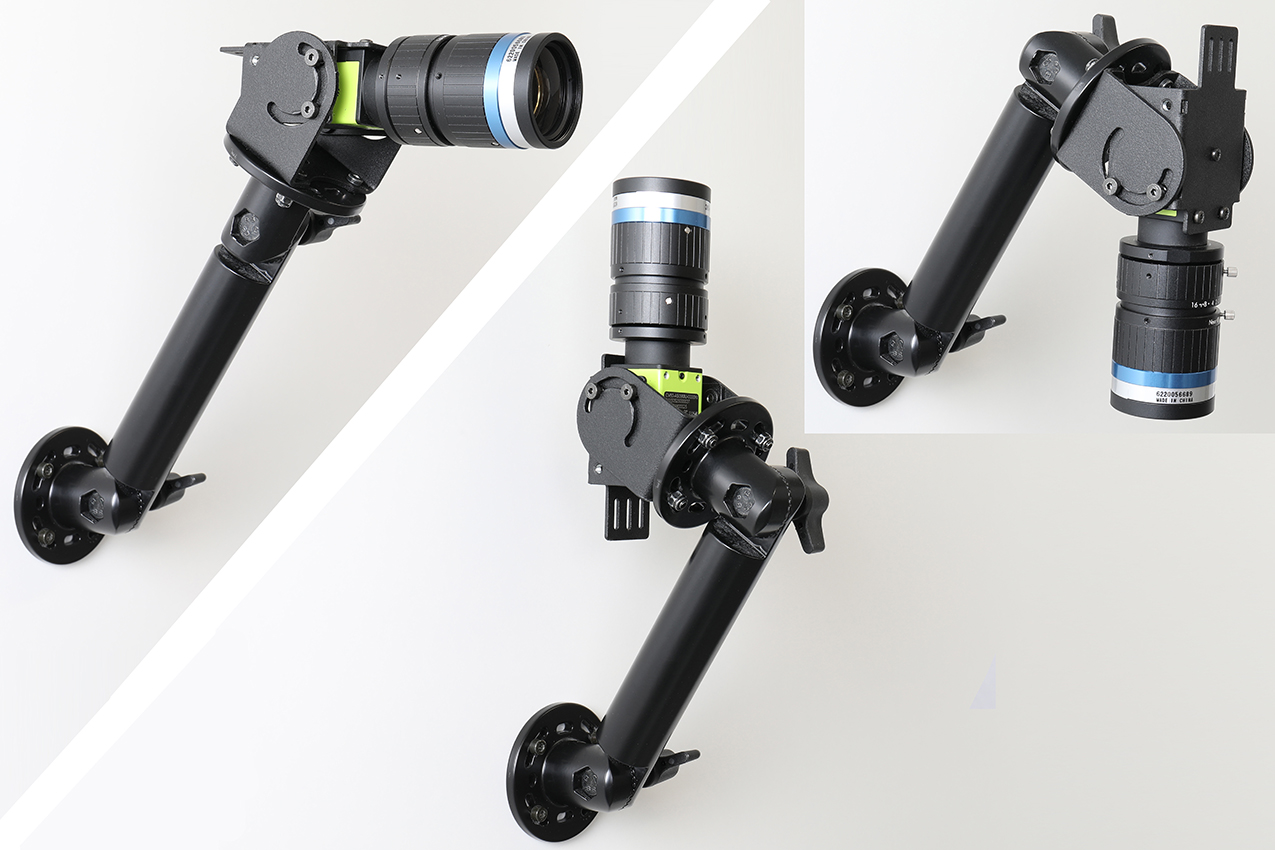

4. The product fully assembled on a Brodit pedestal mount.

Használati útmutató letöltése

Kompatibilis modellek

  • Zebra CV60
