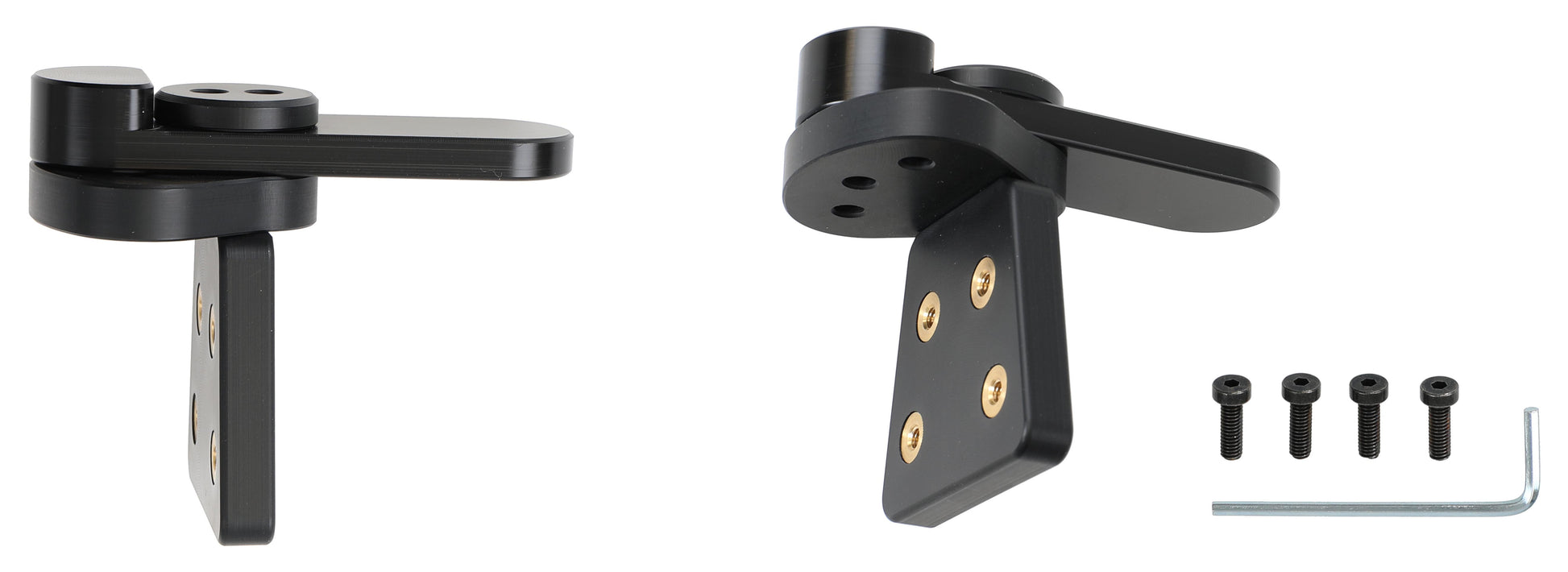

Retention-lock module for Module Upgrade holders.

51.990 Ft
51.990 Ft
Akciós Elfogyott
Retention-lock module. The product is compatible with Module Upgrade holders, this means that you can updrade such a holder with a spring stud lock if desired.

For use with the following products:
Item no. 711310 Passive holder with tilt swivel. Fits for device with or without handstrap. Module Upgrade Cradle.
Item no. 712310 Active holder with cig-plug. 3A charging. 12/24V. With Easy-switching system. Charging via pogo pins. Fits for device with or without handstrap. Module Upgrade Cradle.
Item no. 713310  Active holder for fixed installation. 2A charging. 12/24V. With Easy-switching system. Charging via pogo pins. Fits for device with or without handstrap. Module Upgrade Cradle.
  • Egy éves garancia
Minden részlet megtekintése

TOVÁBBI INFORMÁCIÓK

Beszerelés lépései

alternatetext alternatetext alternatetext alternatetext

Please read all of the instructions and  look at the pictures before attaching the holder.

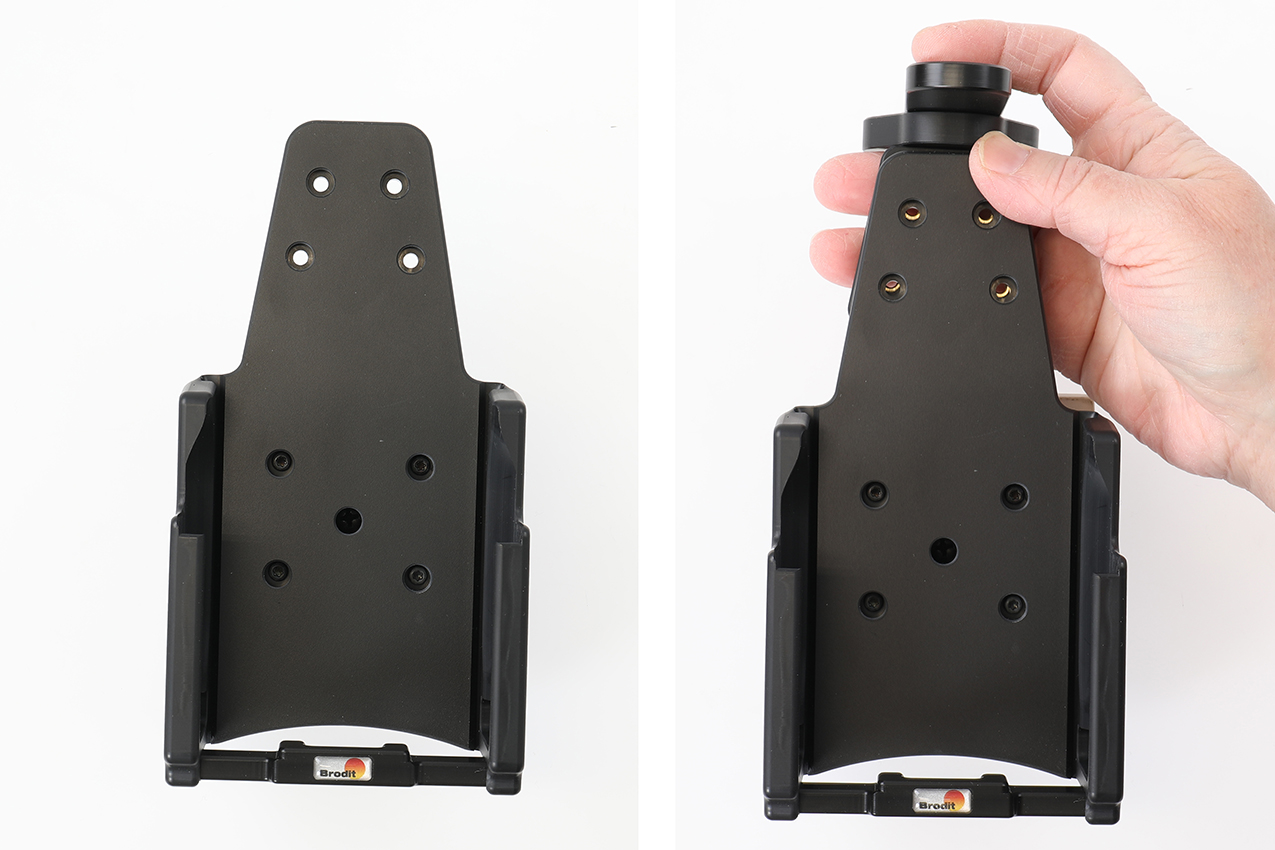

1. Place the lock module behind the holder so the screws fits in the holes.

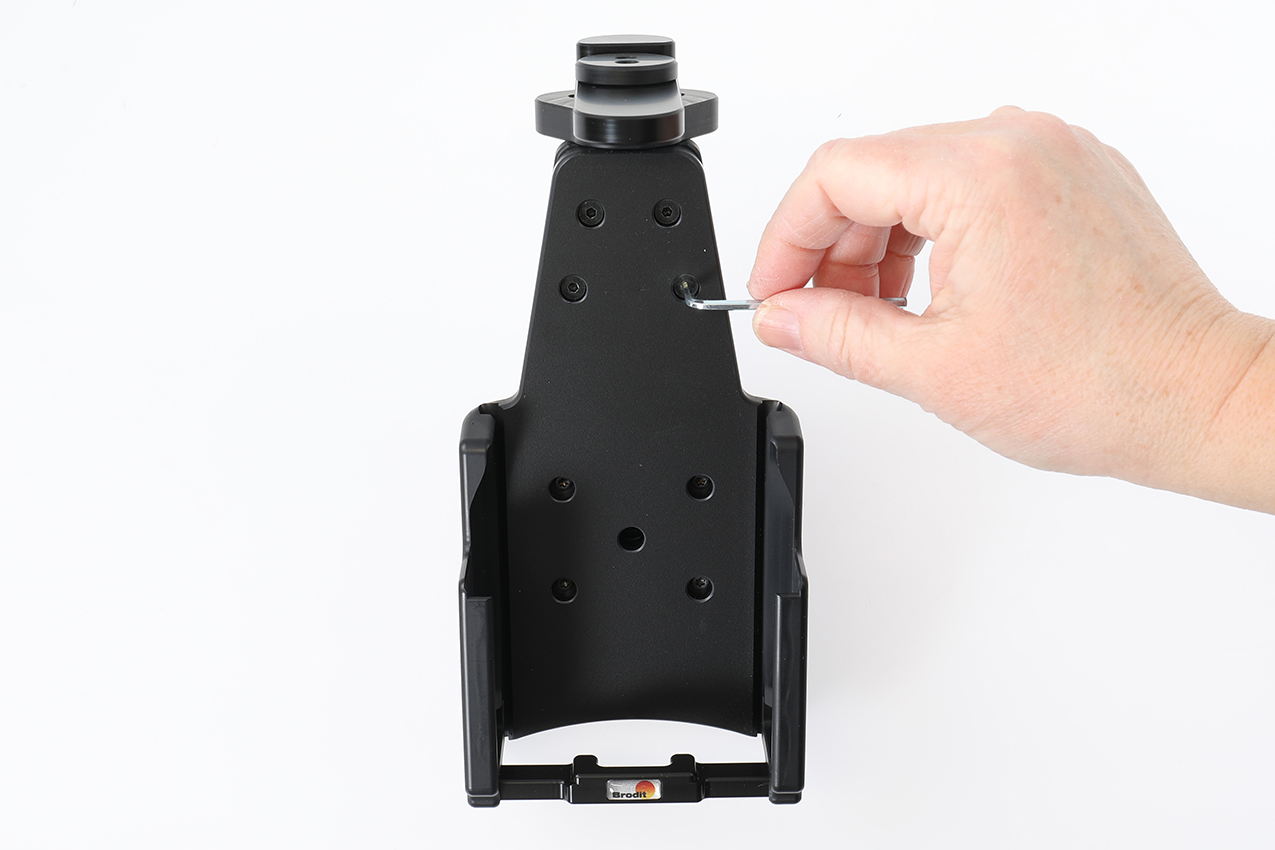

2. Tighten the screw so the lock module is firmly in place.

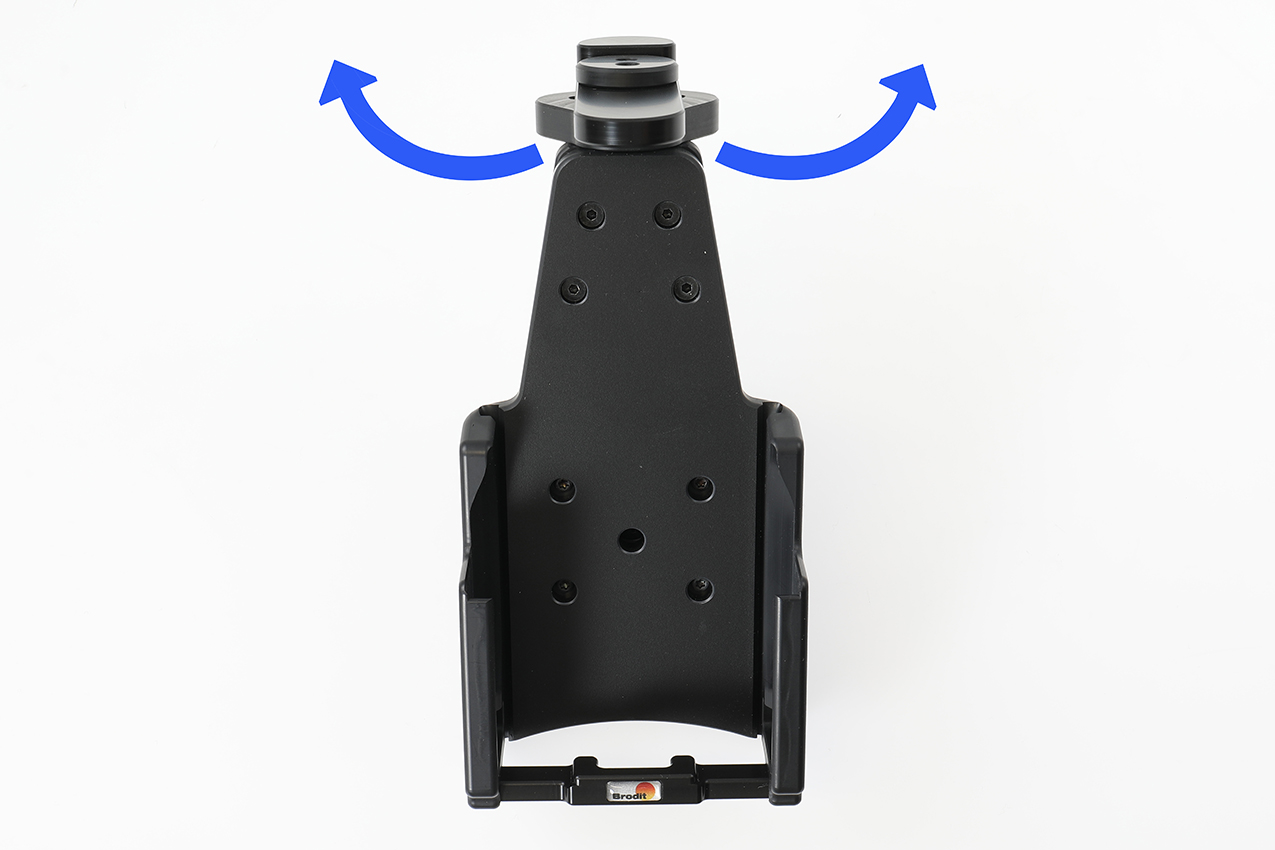

3. To place the device in the holder: Place the lower part of the device in the holder, then flip/press the upper part forward so it snaps into place in the holder. Push the lock block sideways. To remove the device from the holder: Slide the lock block sideways. Press upwards on the upper part of the holder, in the same time pull the upper part of the device out from the holder and then lift the device up and out from the holder.

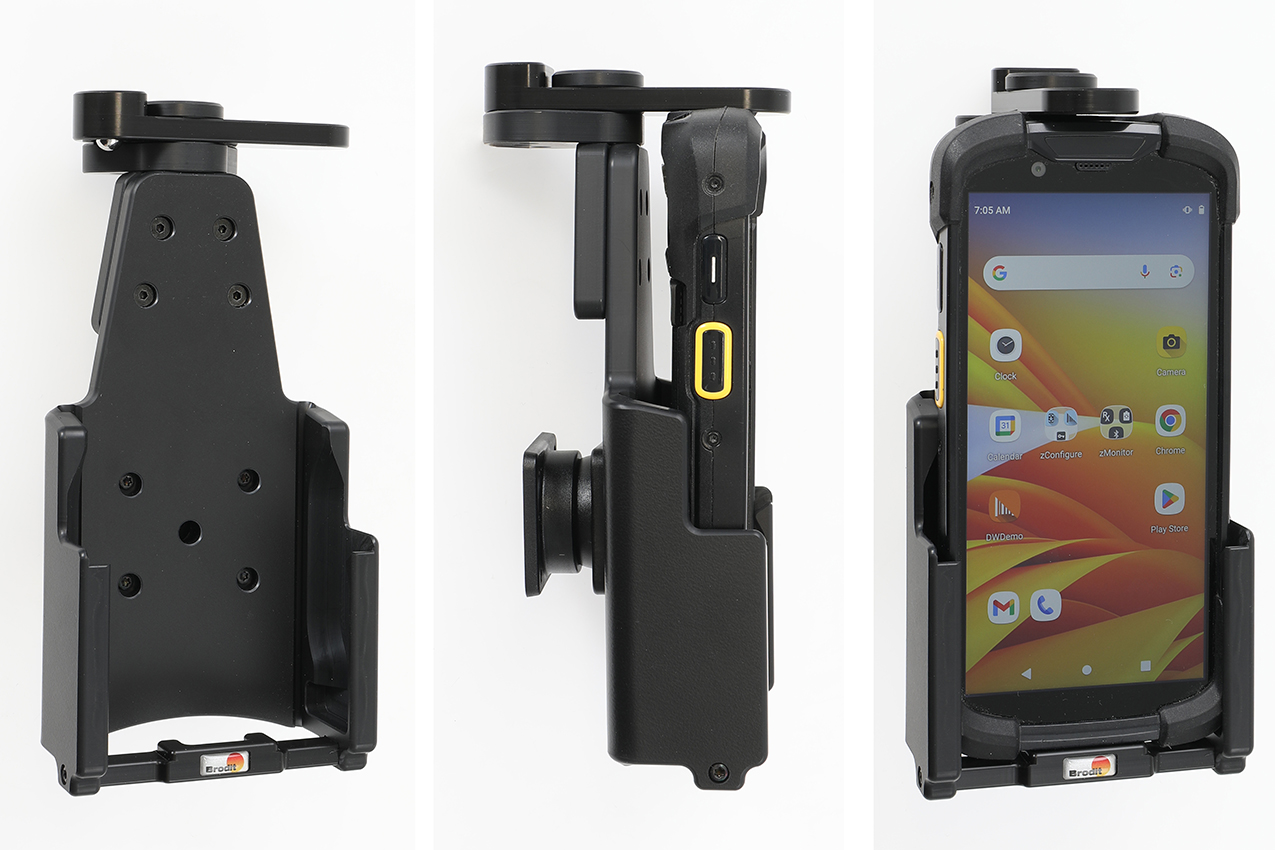

4. The holder is in place.

Használati útmutató letöltése

Kompatibilis modellek

  • Zebra TC73
  • Zebra TC78
