217268 - Pedestal Mount - Állványos rögzítő targoncához
217268 - Pedestal Mount - Állványos rögzítő targoncához

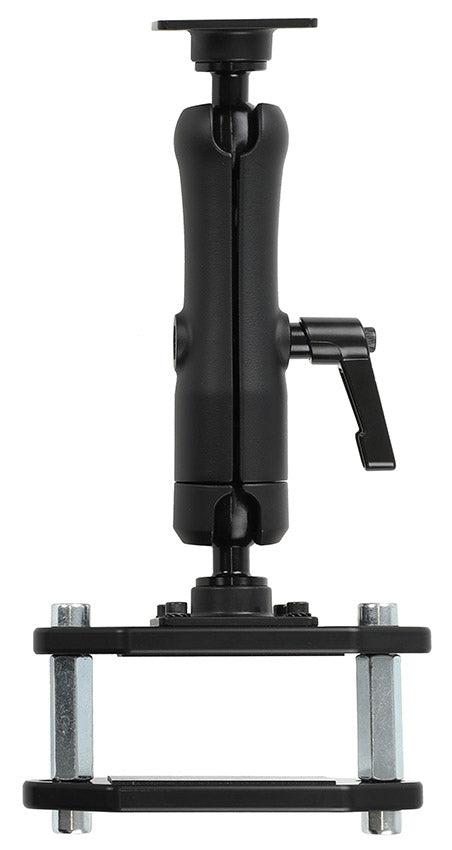

Forklift mount with heavy duty Pedestal Ball Mount, 194 mm. Fits rods, poles, tubes, plates, pipes with thickness 5-130 mm and width max 97 mm screws, nuts, washers and Allen keys included. AMPS holes.
The mount offers 360° rotation as well as 210° tilt and angle adjustment. The fully adjustable mount makes it easy to position the device for optimal visibility and operator comfort. A quick-adjust lever allows the mount to be repositioned without tools and securely locked in the desired position.
The base can be mounted to all rods, poles, tubes and pipes with a thickness of 5–130 mm and a maximum width of 97 mm. Loading weight: 3 kg.
Mounting plate 50x42 mm, with AMPS holes. Made of Aluminum. Color: Black.
Egy éves garancia
Megosztás
TOVÁBBI INFORMÁCIÓK
Összecsukható tartalom
Beszerelés lépései
|
|
Please read all of the instructions and look at the pictures before attaching the mount.

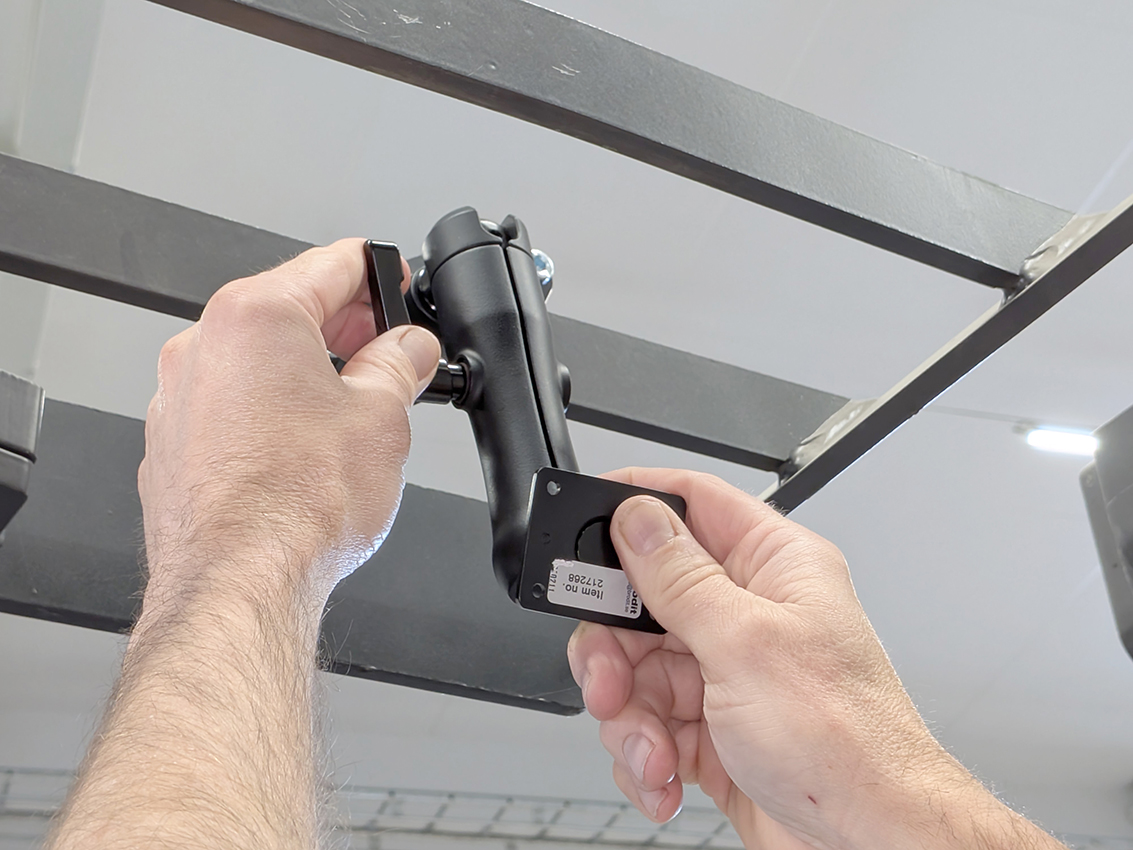

1. Position the mount at the desired installation location and select suitable bolts according to the thickness of the bar. For thinner bars: Use two bolts together with two washers and two locking nuts. For thicker bars: Use four bolts and two hex coupling nuts.

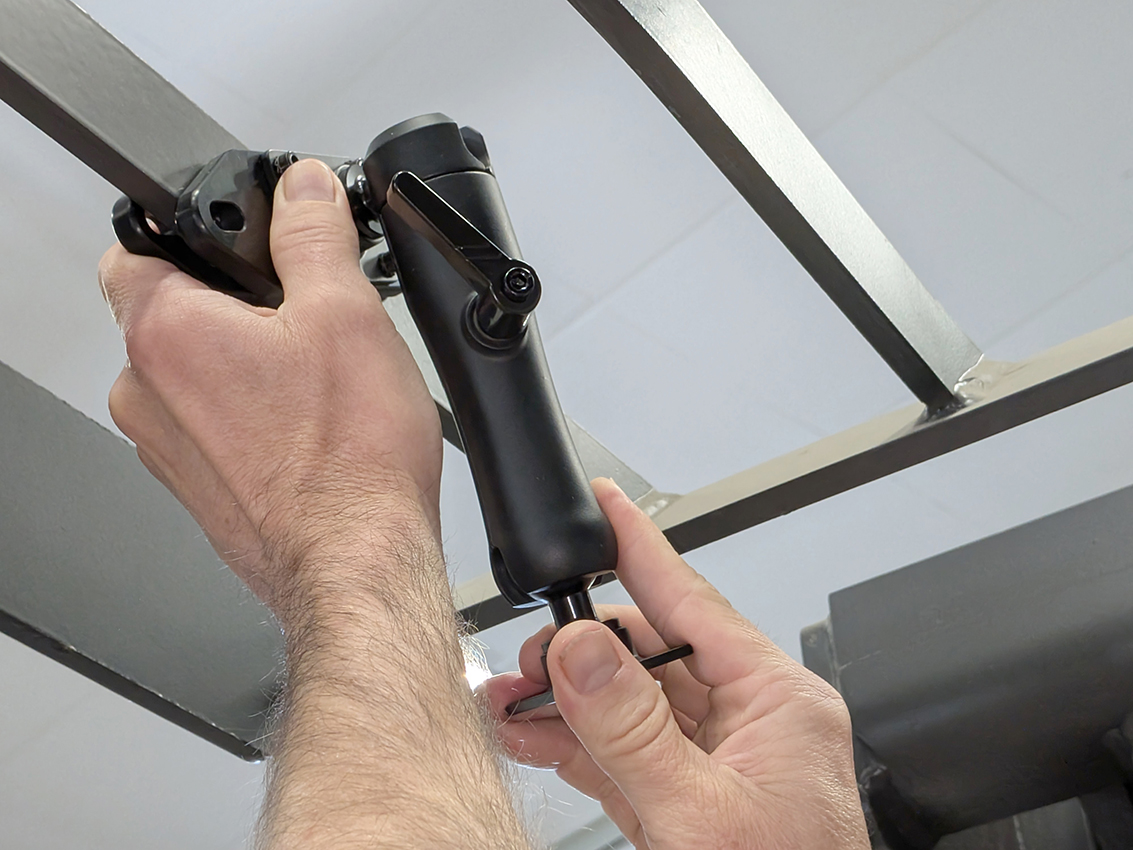

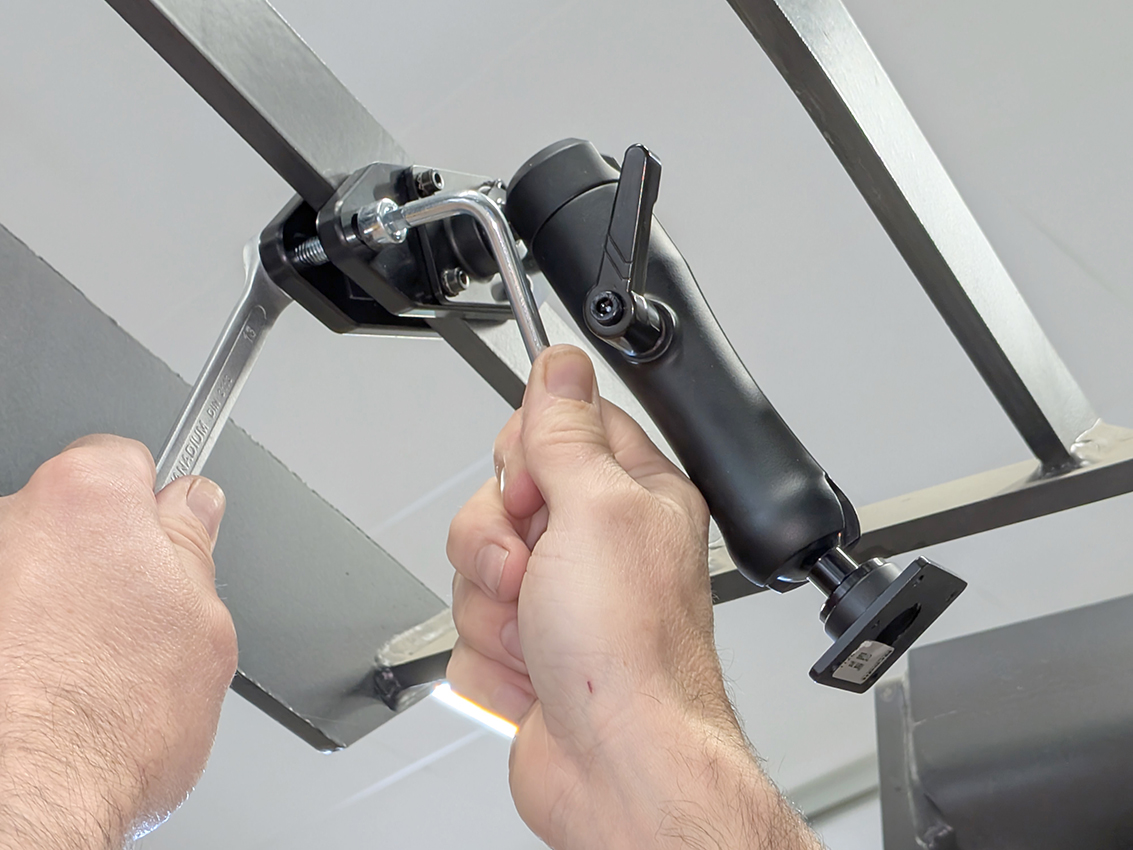

2. Securely fasten the mount in place.
3. Loosen the lever and adjust the mount angle to the desired position. Tighten the lever to lock the mounting plate securely in place.

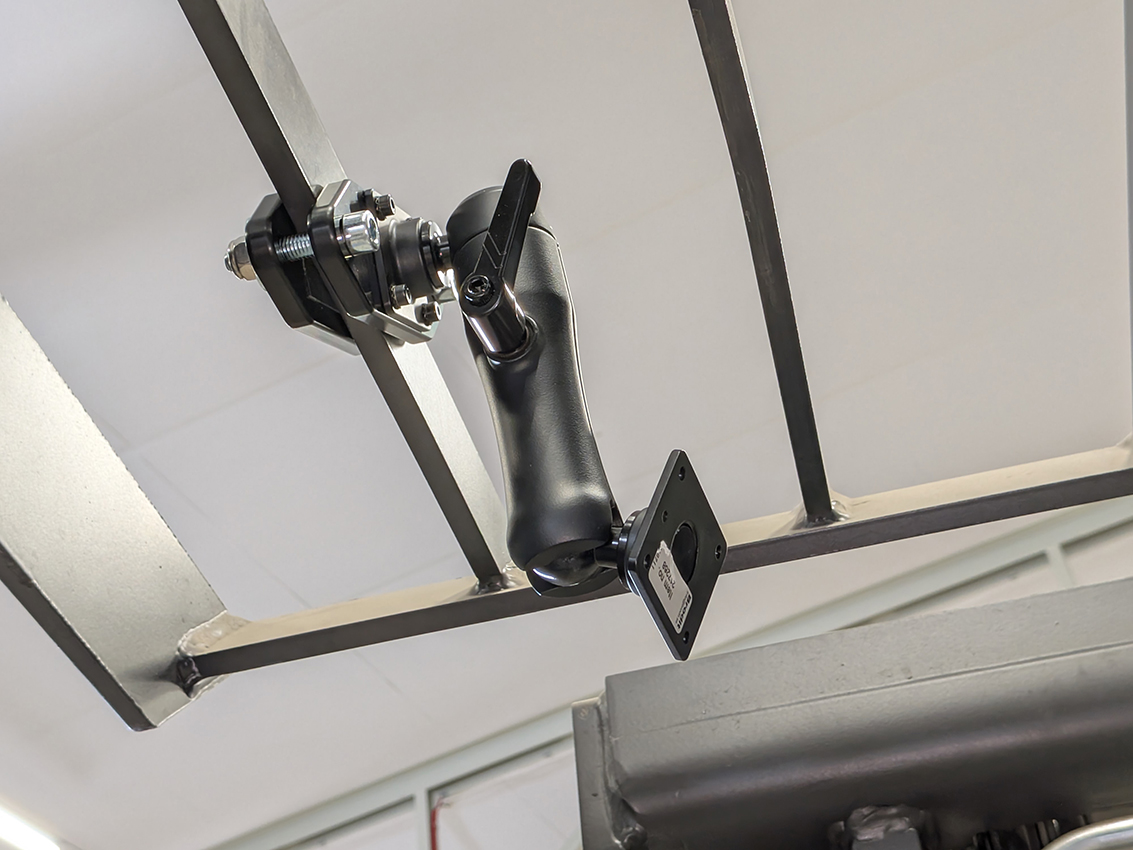

4. The mount is now fully installed and ready for use. |
Kompatibilis modellek
- Nincs megadott érték
