217272 - Szerelőlap

217272 - Szerelőlap

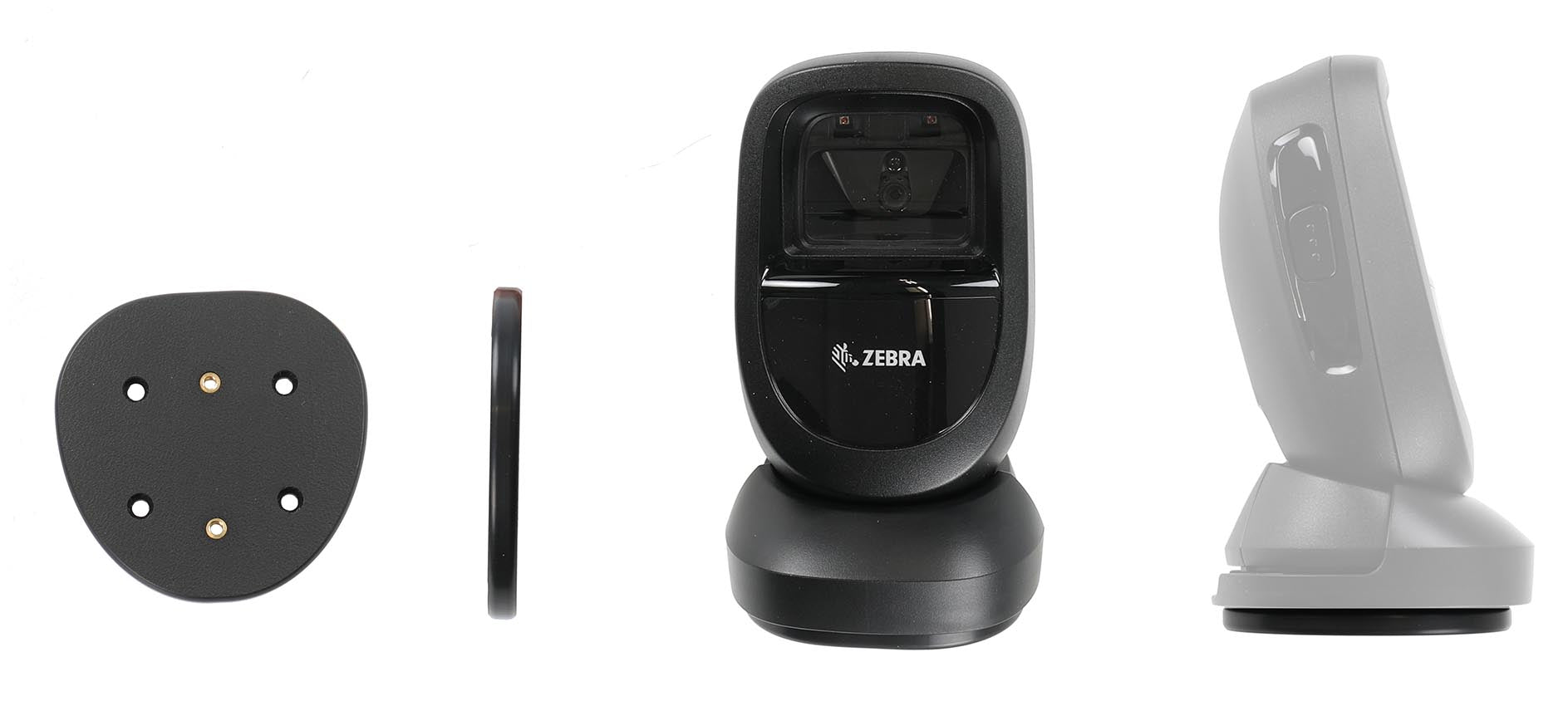

For Zebra original Multi-Mount BRKT-MM0093C-04, BRKT-MM0093C-0W and Locking Mount BRKT-LM0093C-04, BRKT-LM0093C-0W.

17.990 Ft
17.990 Ft
Akciós Elfogyott

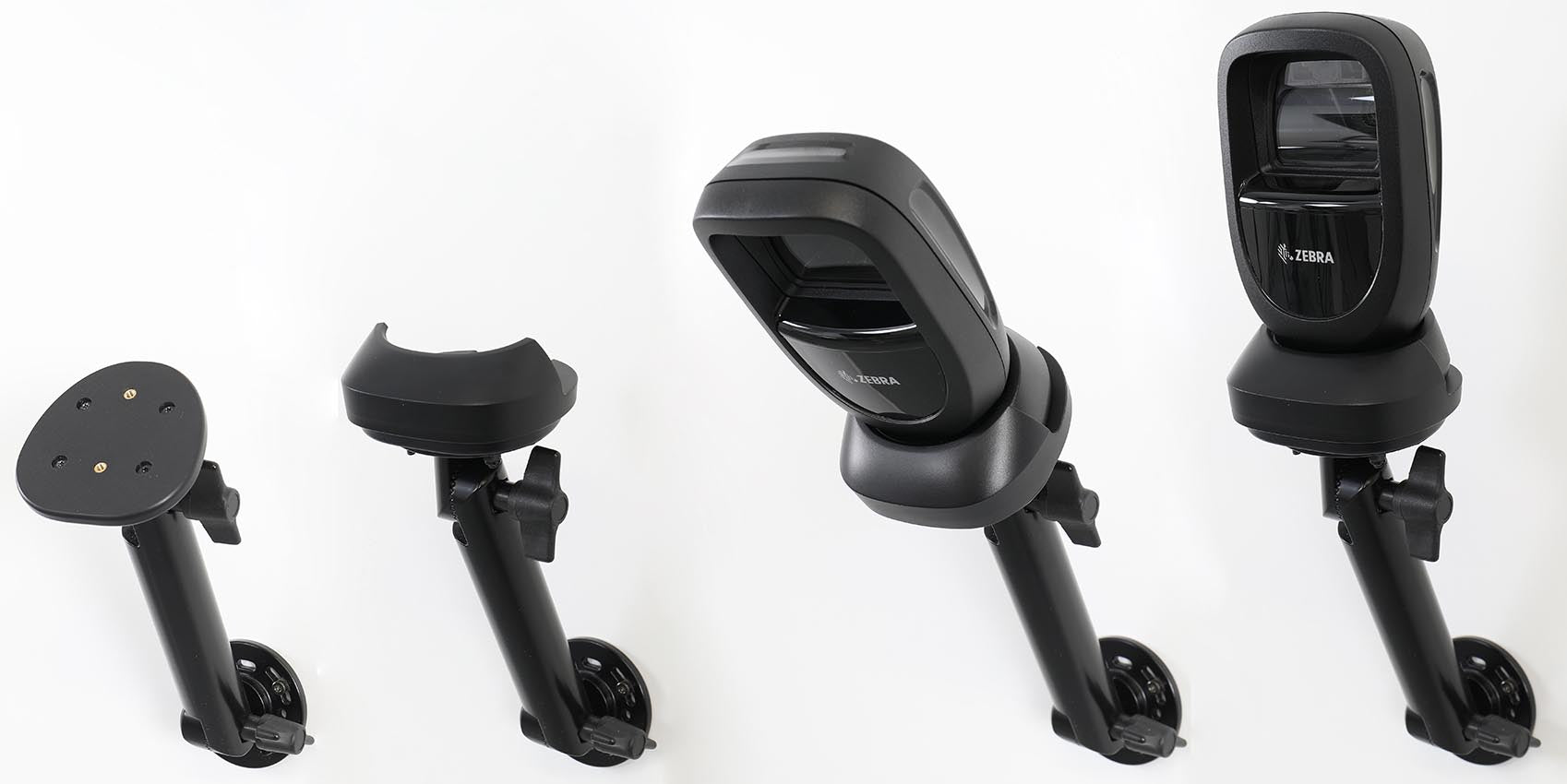

Robust mount for installing of Zebra industrial scanners on Brodit Pedestal mount. For professional everyday use in rought environments. Holds your equipment firmly in place, very strong design. Provides for an efficient, safe and confortable working environment with your device within easy sight and reach.

For Zebra original Multi-Mount BRKT-MM0093C-04, BRKT-MM0093C-0W and Locking Mount BRKT-LM0093C-04, BRKT-LM0093C-0W.

Made of black ABS plastic. Made in Sweden.
  • Egy éves garancia
Minden részlet megtekintése

TOVÁBBI INFORMÁCIÓK

Beszerelés lépései

alternatetext alternatetext alternatetext alternatetext

Please read all of the instructions and  look at the pictures before attaching the holder.

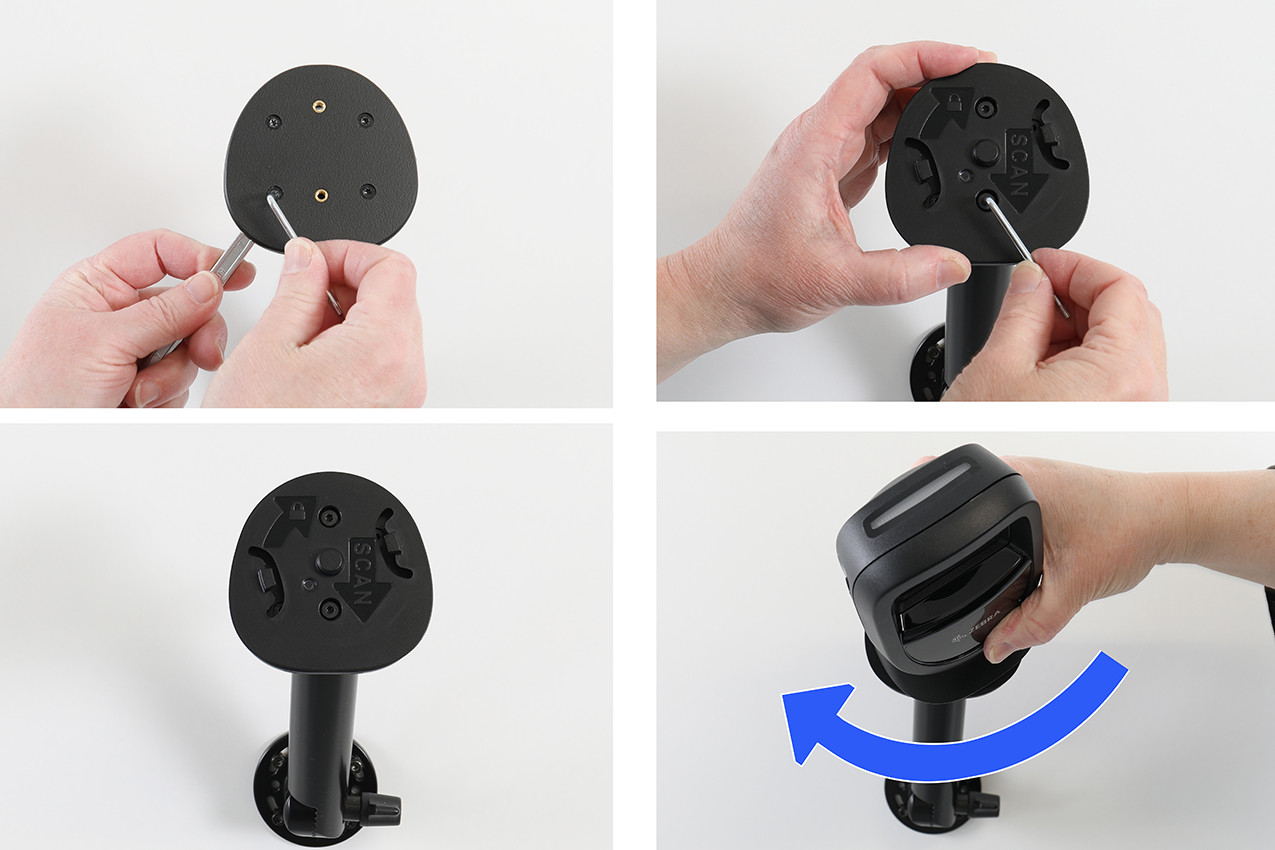

1. Place the mounting plate onto the desired position and screw into place with the enclosed screws. Screw in the original mount (BRKT-MM0093C-04, BRKT-MM0093C-0W).

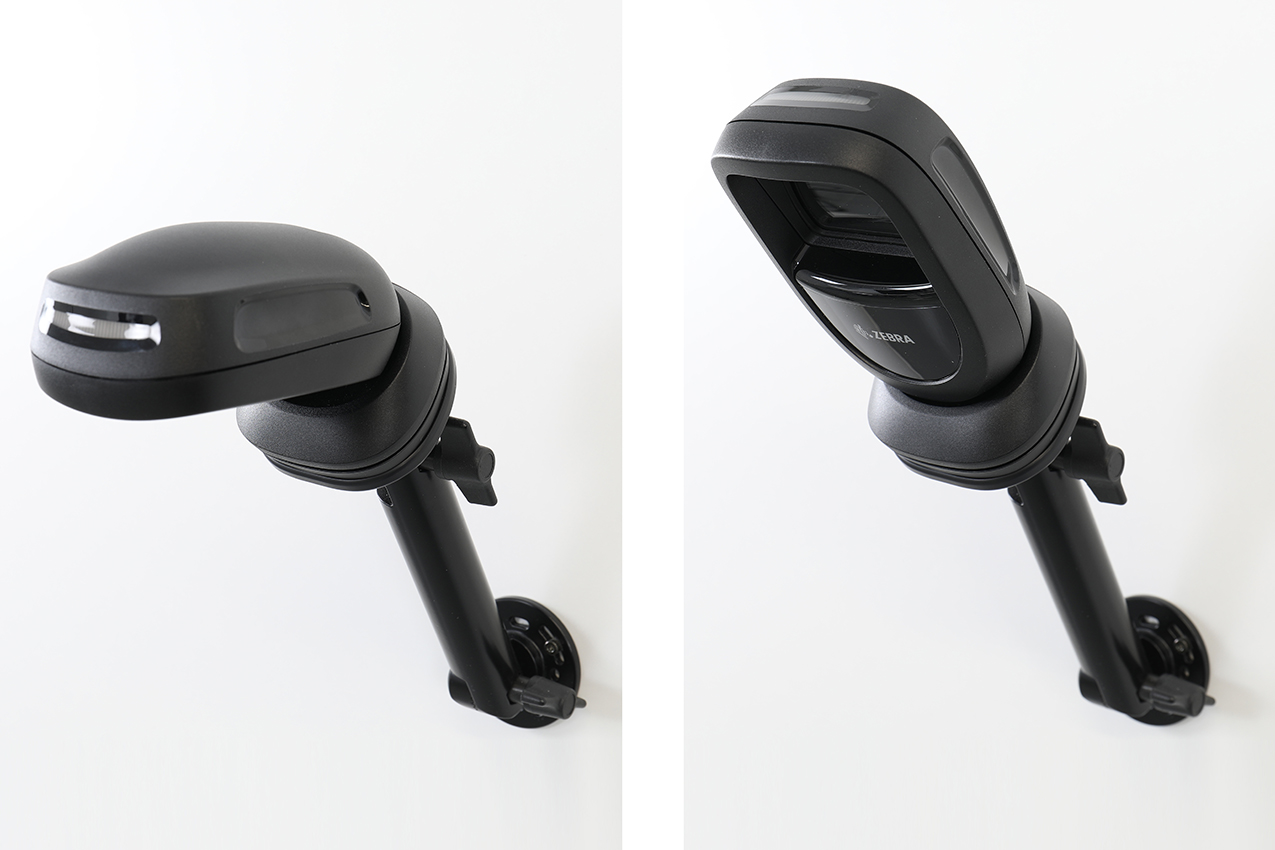

2. The mount is fully assembled with the unit on.

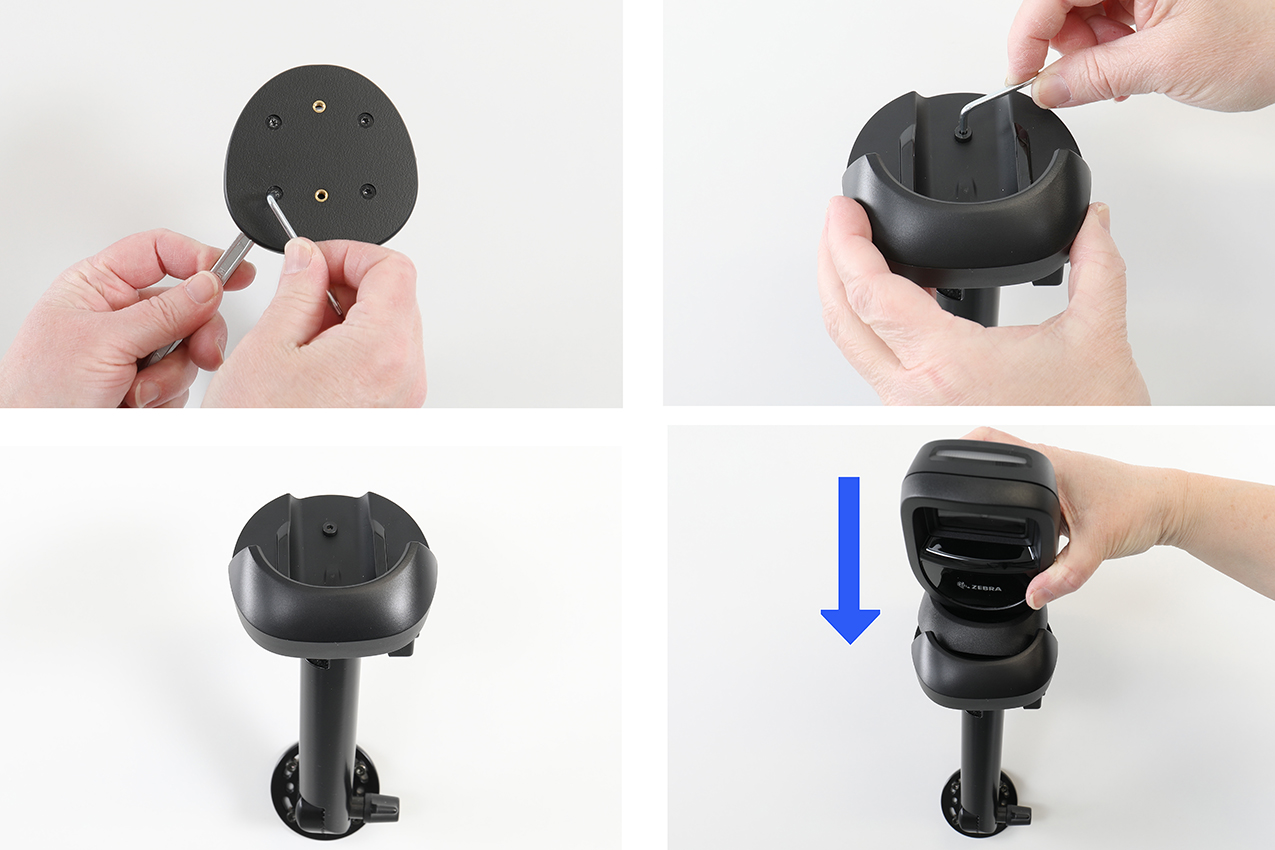

3. Place the mounting plate onto the desired position and screw into place with the enclosed screws. Screw in the original mount (BRKT-LM0093C-04, BRKT-LM0093C-0W).

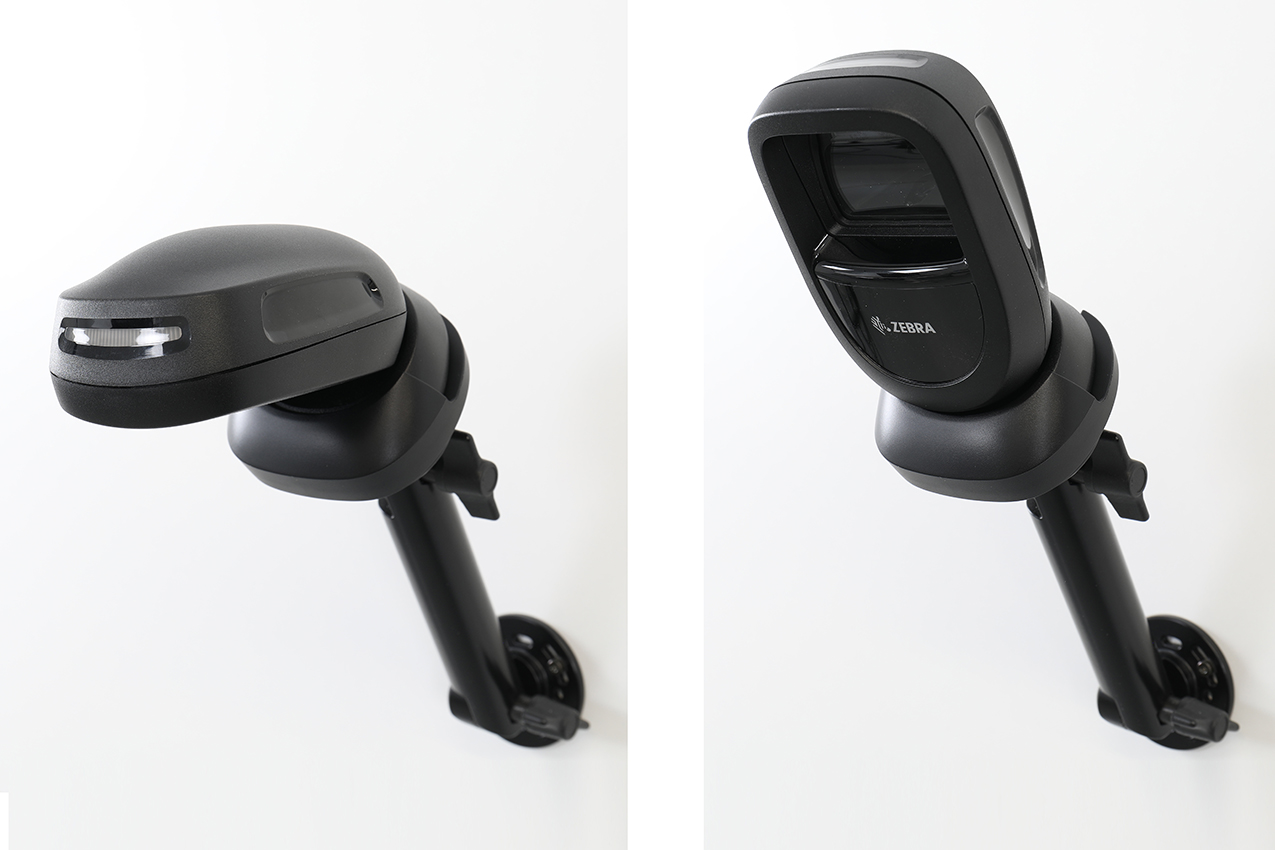

4. The mount is fully assembled with the unit on.

Használati útmutató letöltése

Kompatibilis modellek

  • Zebra DS9308
