217315 - Mount - Rögzítő

217315 - Mount - Rögzítő

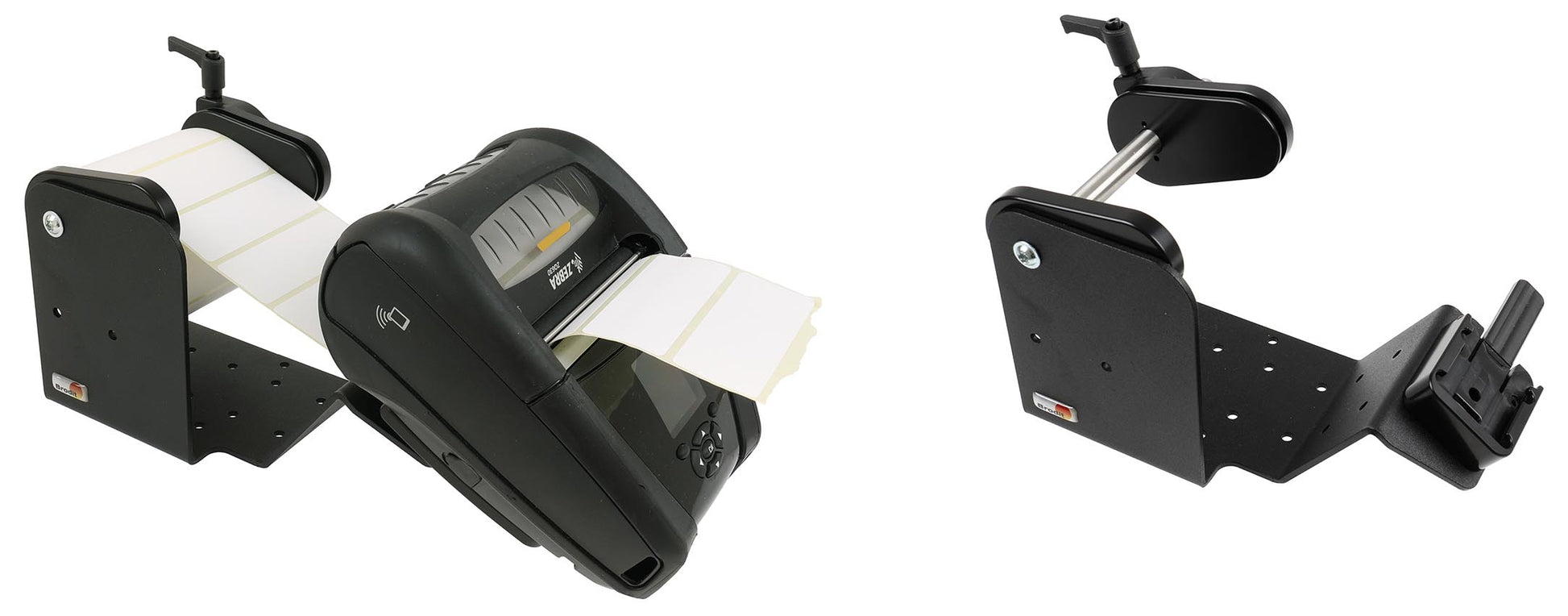

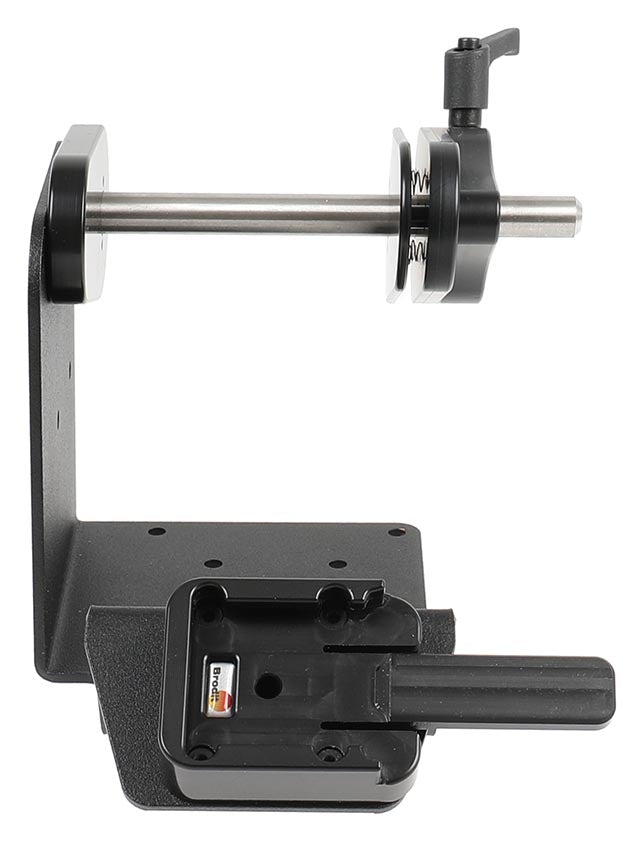

Printer mount with label roll function. With MultiMoveClip. Designed for stationary rollers max diameter 127 mm, core diameter 25 mm. With AMPS, VESA 75 holes.

125.990 Ft
125.990 Ft
Akciós Elfogyott
Brodit printer mounts provide a secure and practical way to mount your printer, helping improve efficiency and reliability in high-volume labeling environments. Designed for demanding work conditions, they keep printers accessible, stable, and ready to use throughout the day.

The mounts keep printers firmly in place, reducing movement and ensuring reliable operation. By positioning the printer where it is needed, daily labeling tasks become smoother and more efficient. Easy access to the printer also contributes to a more comfortable and ergonomic way of working. The design allows full access to the printer battery, making replacement and charging easier when needed.

The integrated MultiMoveClip quick-release system makes it easy to move the printer between different locations while keeping the same secure mounting solution. A Heavy Duty Pedestal Mount or Stand provides a strong base for printer mounts, keeping the printer securely positioned during everyday use. The printer can be placed exactly where it fits best in the workflow, whether in a warehouse, store, workstation, or production environment.

With VESA 70 and AMPS standard holes. Made of high grade metal and Acetal. Color: black. Made in Sweden.

  • Egy éves garancia
Minden részlet megtekintése

TOVÁBBI INFORMÁCIÓK

Beszerelés lépései

alternatetext alternatetext alternatetext alternatetext

Please read all of the instructions and look at the pictures before attaching the product.

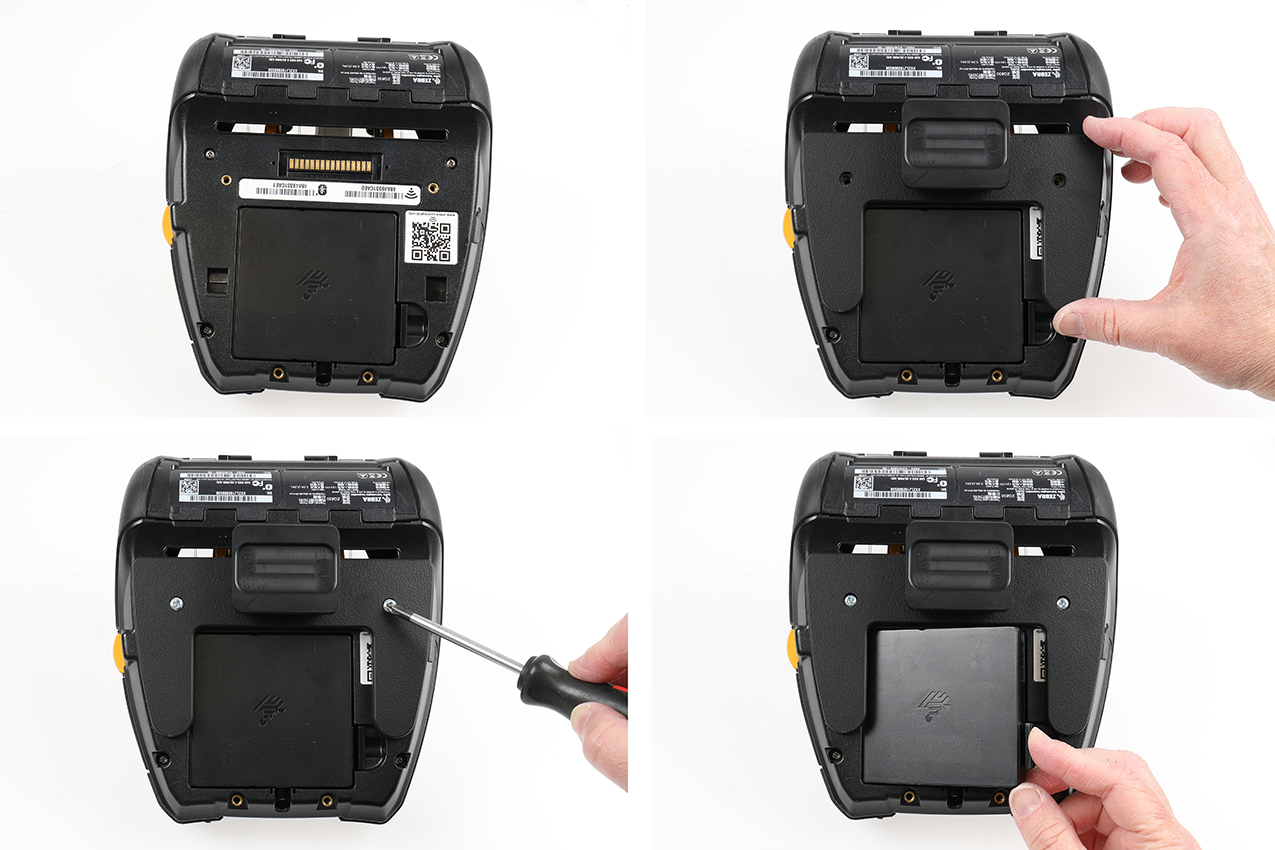

1. Place the mount onto the device so the holes match. Use the two enclosed screws to attach the mount in place.

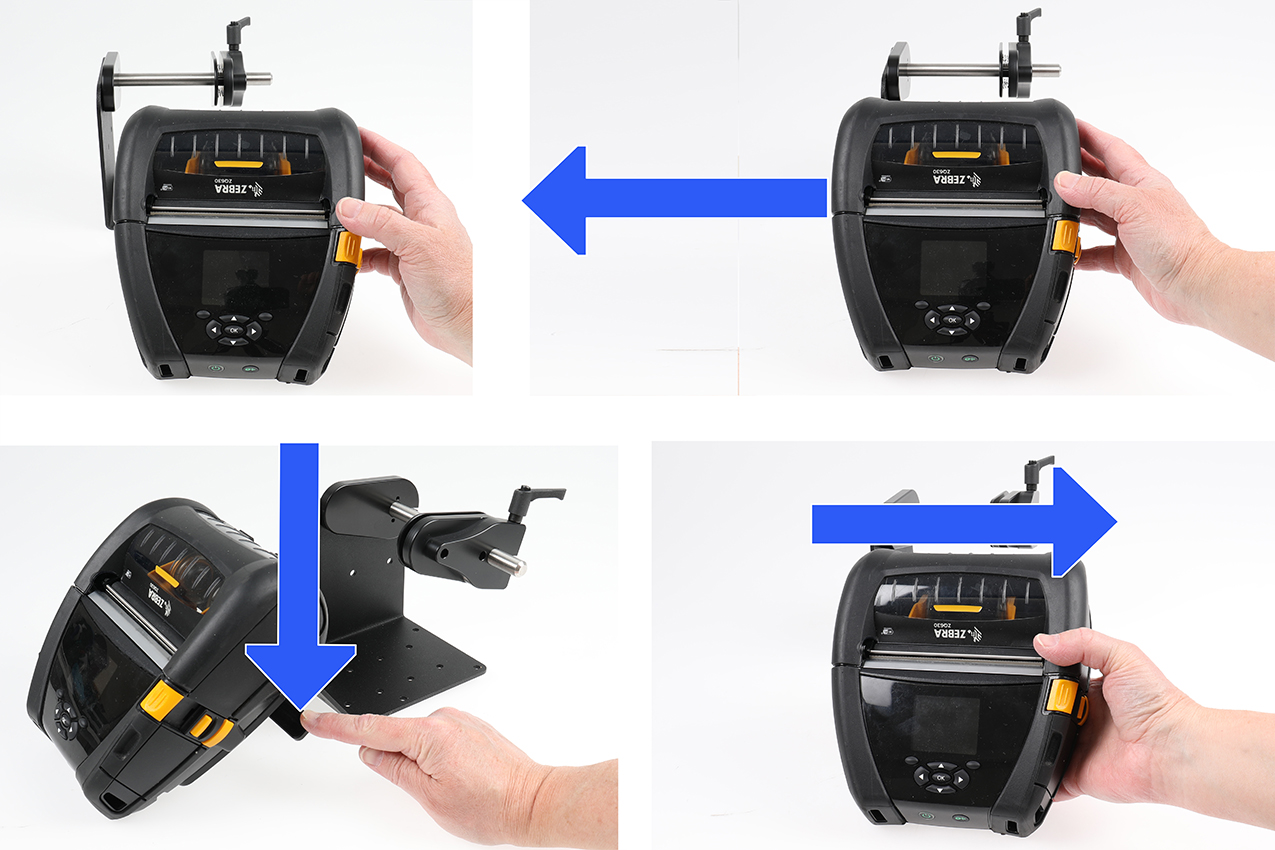

2. Put the device into place: Hold the device on the right side of the mount. Slide it leftwards onto the mount so it snaps into place.

Remove the device: Press forward on the release lever and slide the device righwards away from the mount.

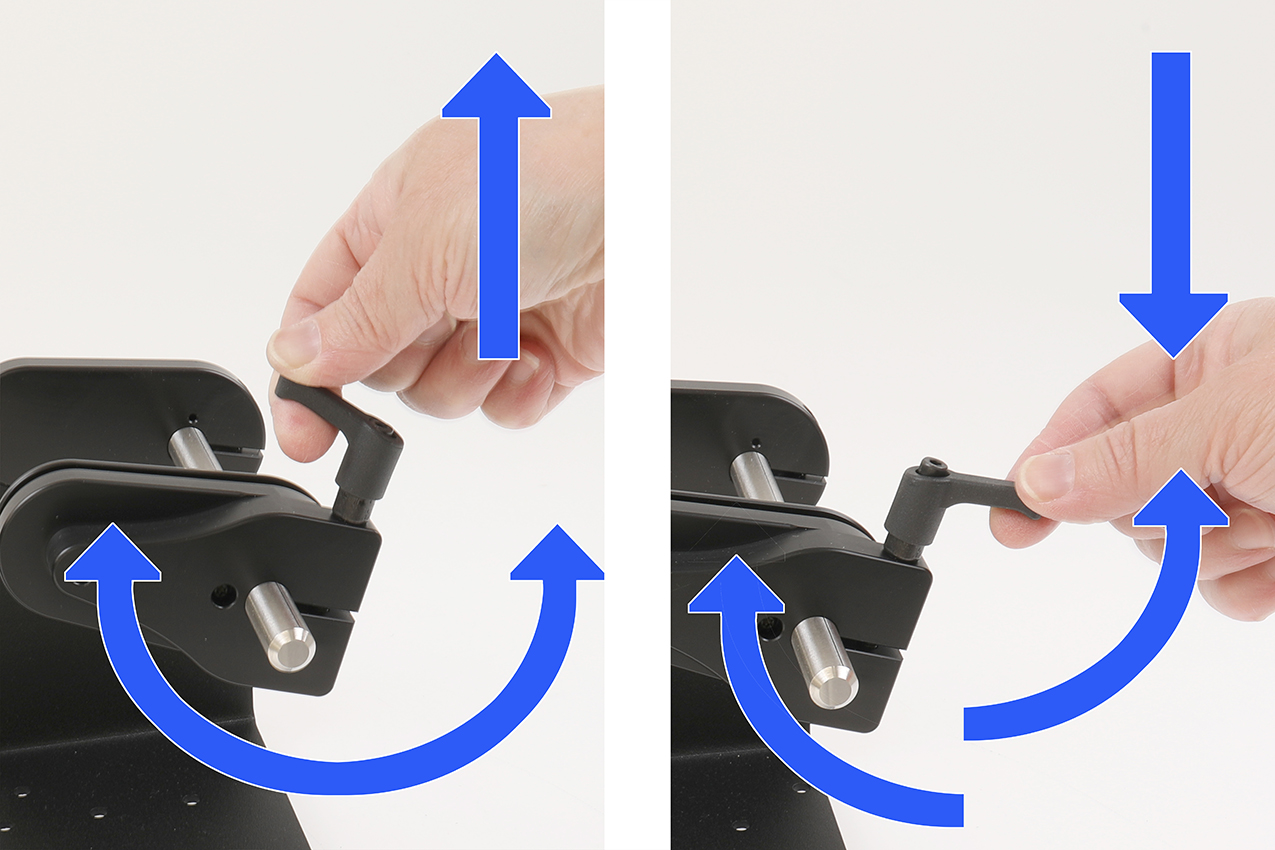

3. To adjust and lock the label roll side support: Turn the lever counterclockwise to loosen the lock. Adjust the side support to the desired position. Turn the lever clockwise to lock it in place.

If you need a new grip while tightening or loosening: pull the lever upward to release it, reposition the lever, and then continue turning.

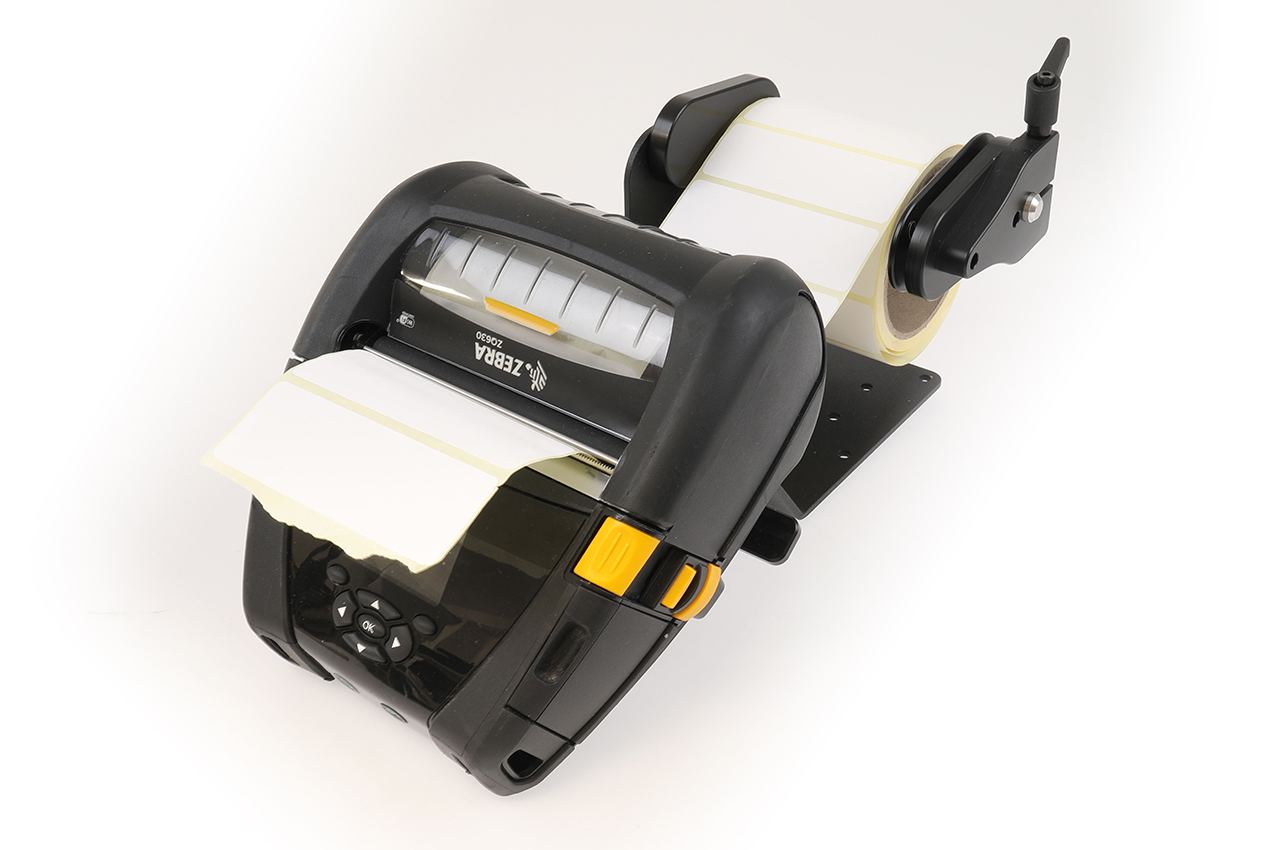

4. The product is in place.

Használati útmutató letöltése

Kompatibilis modellek

  • Zebra ZQ630
  • Zebra ZQ630 Plus
