527628 - Aktív tartó fix bekötéssel

527628 - Aktív tartó fix bekötéssel

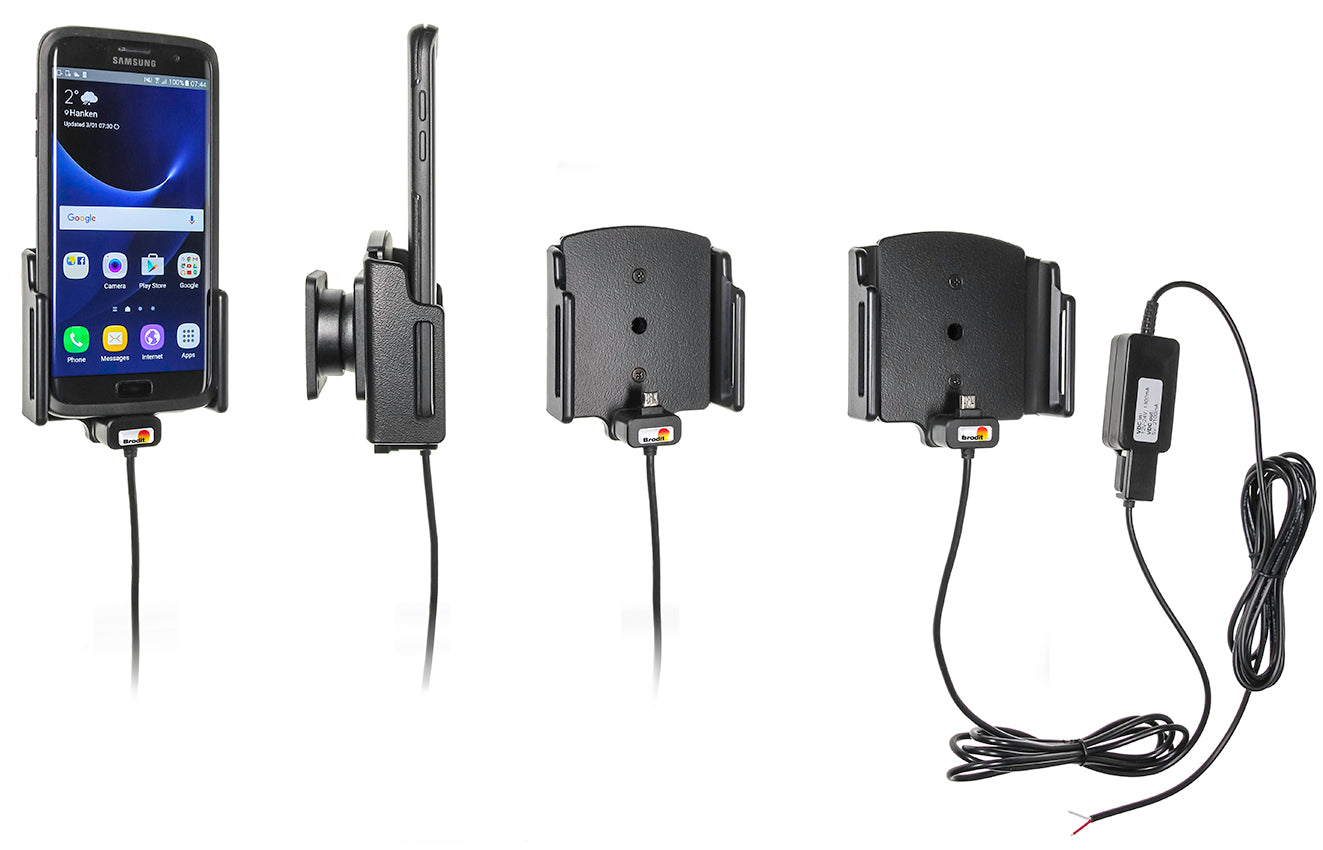

Állítható tartó Micro-USB csatlakozóval. 75–89 mm széles, 6–10 mm vastag készülékhez. 2,1A töltés. 12/24V. Csuklóval.

Normál ár 39.990 Ft
Normál ár Akciós ár 39.990 Ft
Akciós Elfogyott
Keep your phone in a holder when on the road and you will always have it within easy sight and reach. The active holder for fixed installation is to be connected inside the dashboard, this gives a discreet, neat installation without cables hanging over the interior!

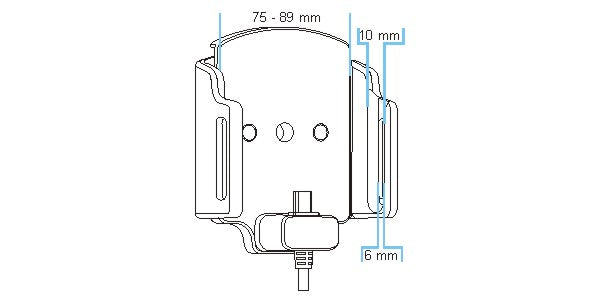

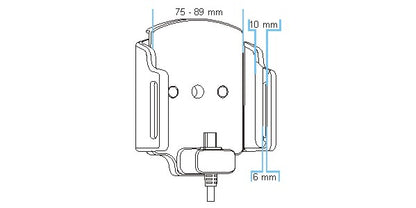

The adjustable holder fits for devices with and without skin with the following dimensions: Width: 75-89 mm, Thickness: 6-10 mm. Adjustable holders come in various sizes. Measure your device and compare with the holder specifications in order to make sure you have chosen the correct product (if you are using a skin: measure the device with the skin in place).

You can choose to use the holder as an active holder for charging of your device only, or to connect an adapter to the connector for additional features. Then you can use the holder also for power supply of a GPS receiver of other own solutions (cannot be used for data communication or audio connection). The product is E-approved. Connect the power cable with a 2A fuse. Professional installation recommended.

Before using the holder you need to confirm the charging cable is turned the right way (you can rotate it) and also set the holder's width so it suits your device, then your phone is held firmly in place in an upright position for maximum cellular reception. The holder has a neat and discreet design which blends well with the vehicle's interior.

The holder is made of black ABS plastic. It is easy to put the device into the holder, and just as easy to take it with you when leaving the vehicle. The holder is equipped with a tilt swivel so you can adjust the angle of your device in order to avoid light reflection on the screen. You can tilt the holder 22° in each direction. Attach onto ProClip Mounting Platform.

This product supports Qualcomm QC 3.0 quick charge (provided the device supports Qualcomm QC 3.0 quick charge).
  • Egy éves garancia
Minden részlet megtekintése

TOVÁBBI INFORMÁCIÓK

Összecsukható tartalom

Beszerelés lépései

alternatetext alternatetext alternatetext alternatetext

Mielőtt elkezdené a telepítést, kérjük, tekintse meg a képeket és figyelmesen olvassa el a használati útmutatót! Fontos: A töltő egység áramfogyasztása 2A, használjon külső biztosítékot. Beszereléskor a tartó piros vezetékét csatlakoztassa a külső biztosíték által védett áramkör pozitív részéhez, közel az energiaforráshoz. Vezesse a kábelt a tartótól a műszerfalig, és a mellékelt ragasztóval rögzítse a töltőt. Győződjön meg róla, hogy a töltő a műszerfal mögött jól szellőző helyen álljon és csatlakoztassa a következőképpen:

1. Kösse a fehér vezetéket a negatív föld pólushoz.

2. Kösse a piros vezetéket a 12/24 voltos áramellátáshoz, amelyet a jármű gyújtáskapcsolója szabályoz.

1. A készüléknek megfelelően állítsa be a töltő csatlakozó pozícióját és így helyezze a helyére. Helyezze a töltő egységet a tartó elülső részére. Fordítsa meg a tartót és a mellékelt csavarokkal rögzítse a töltő egységet.

2. A tartó beállítása a készülékéhez: Lazítsa ki a tartó elülső részén található alsó és felső csavart, hogy a tartó oldalai állíthatóak legyenek. Helyezze az eszközt a tartóba és a tartó oldalait illessze az eszközhöz. Óvatosan vegye ki az eszközt a tartóból, a tartó oldalainak elmozdítása nélkül. Húzza meg a csavarokat.

3. A tartó beszerelése: Csavarja ki a tartó közepén a csavart, amíg egy halk kattanást nem hall, így erős kézmozdulattal eltávolíthatja a csukló hátsó részét. Helyezze a csukló talp részét a kívánt helyre, majd rögzítse a mellékelt csavarokkal. Helyezze a tartót a talp fölé úgy, hogy az illeszkedjen a csuklóval. A tartó középső csavarjával erősítse össze a csuklót.

4. A tartó a helyére került.

Kompatibilis modellek

  • Universal
