711453 - Passzív tartó csuklóval

711453 - Passzív tartó csuklóval

For device with pistolgrip.

28.500 Ft
28.500 Ft
Akciós Elfogyott

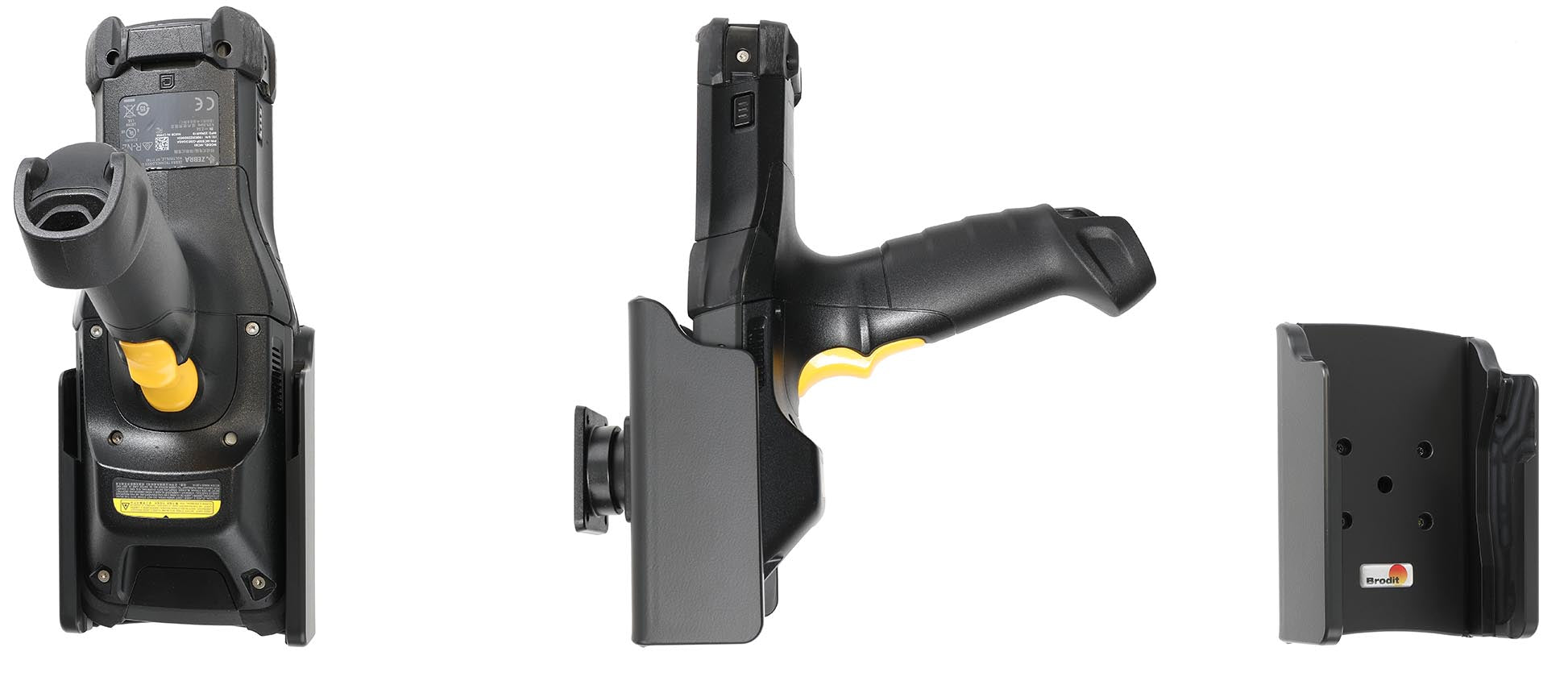

Keep your Zebra device in a holder within easy reach all work day! Neat, discreet and convenient! Custom made design with a perfect, firm fit for device with pistolgrip. The holder accomodates the device face in. This enables for easy docking/undocking of your device with one hand, holding the standard pistol grip hold.

The holder is equipped with a tilt swivel so you can easily adjust the angle for better viewing. Tilts 17° and swivels 360°. Mounting plate 42x50 mm with 4 mm AMPS-holes. Made of high grade black ABS plastic. Color: black. Made in Sweden. For easy and optimal installation, attach the holder onto a Pedestal Mount or attach it directly to any surface.

  • Egy éves garancia
Minden részlet megtekintése

TOVÁBBI INFORMÁCIÓK

Beszerelés lépései

alternatetext alternatetext alternatetext alternatetext

Please read all of the instructions and  look at the pictures before attaching the holder.

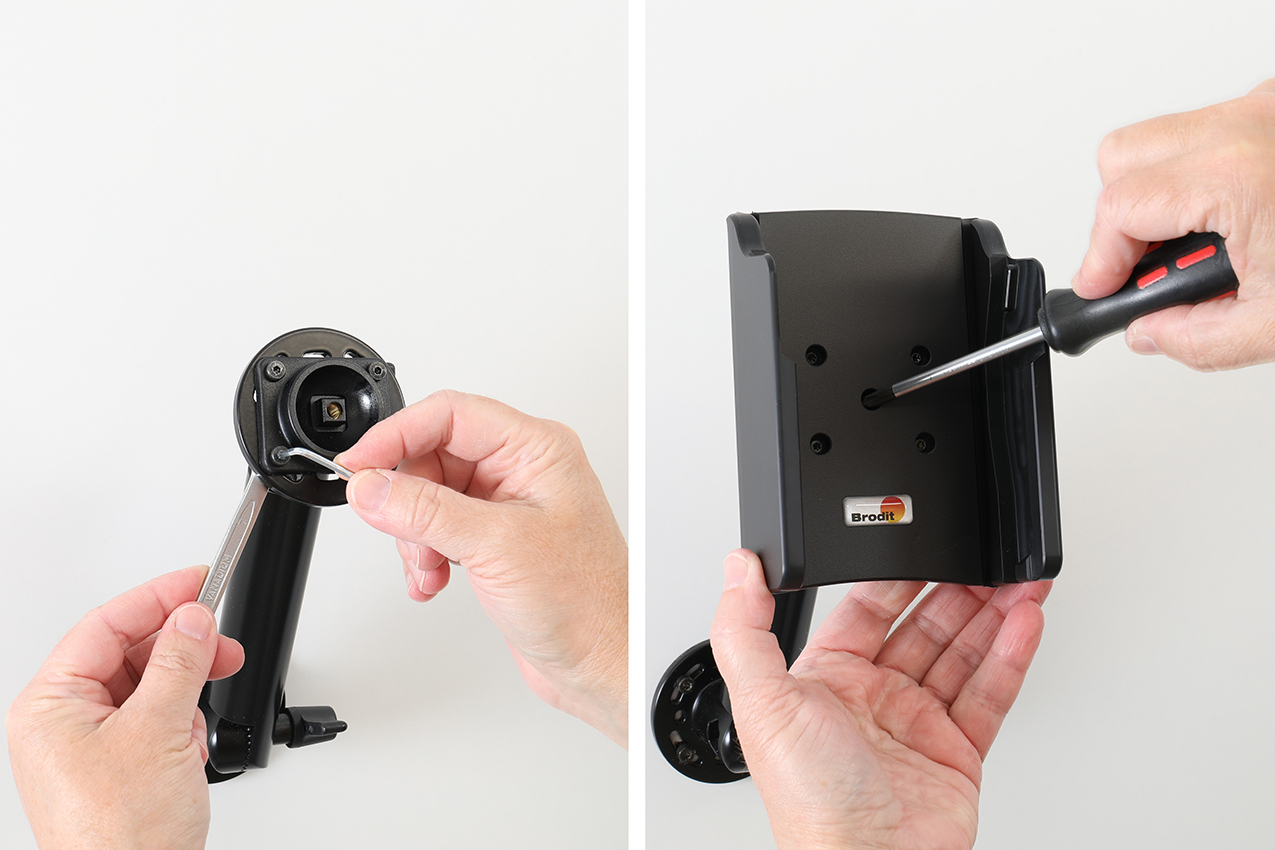

1. Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back.



2. Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws. Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel and screw it into place. Tighten the screw so the holder is firmly in place, but still can be adjusted.

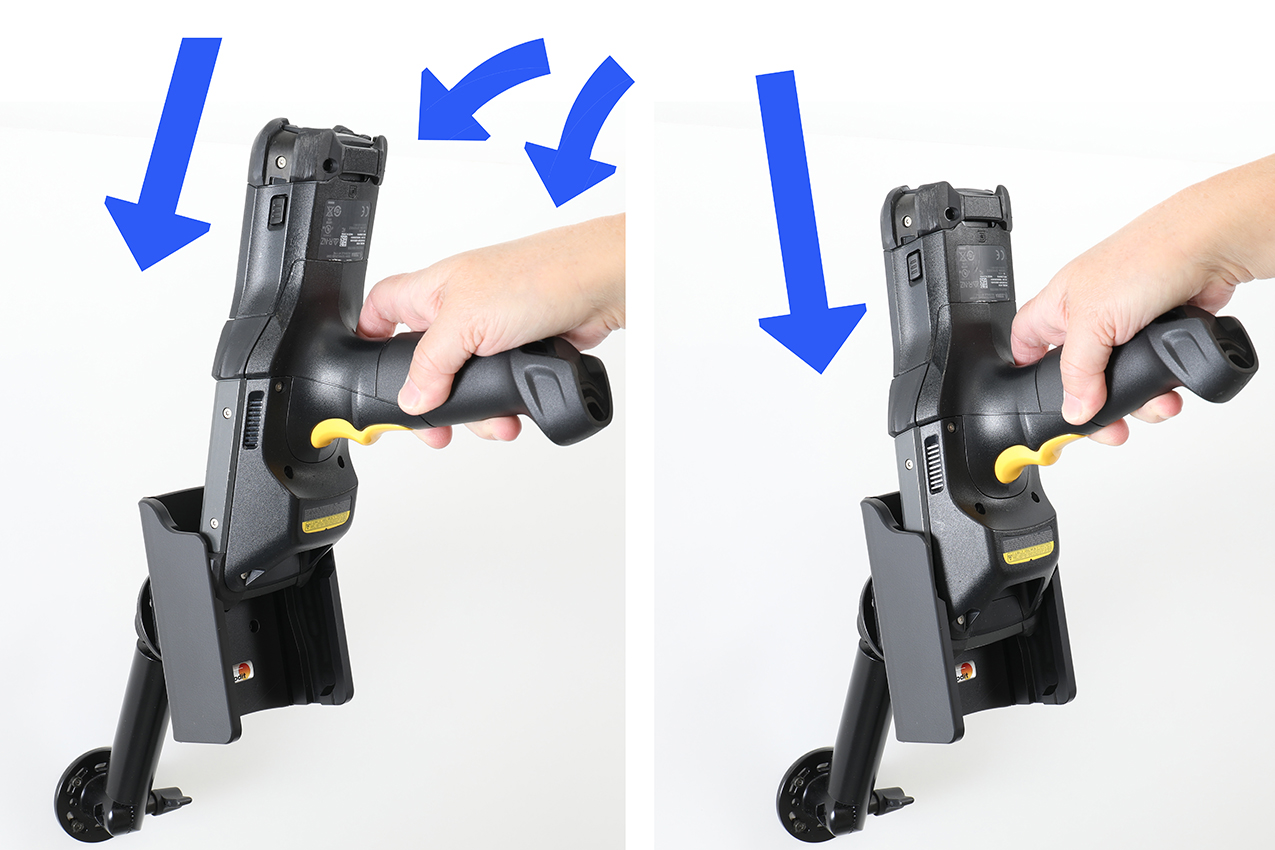

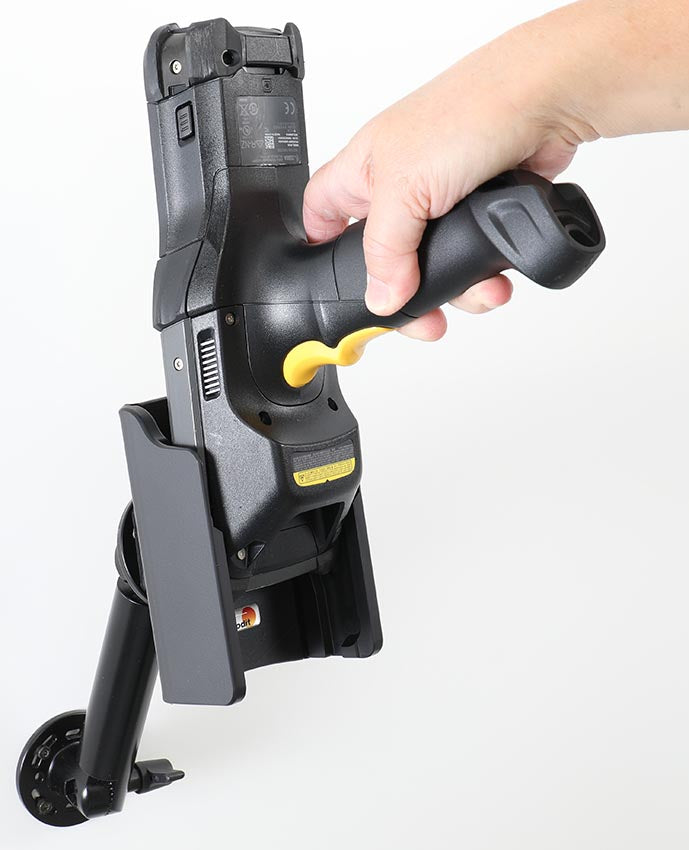

3. Hold the device slightly tilted and place the top into the holder. Let the side grooves of the holder steer the device into the holder as you continue pushing it downward. Press the device downwards and forwards at the same time in an arc-shaped motion so that the device goes all the way down into the holder and sits securely in place.

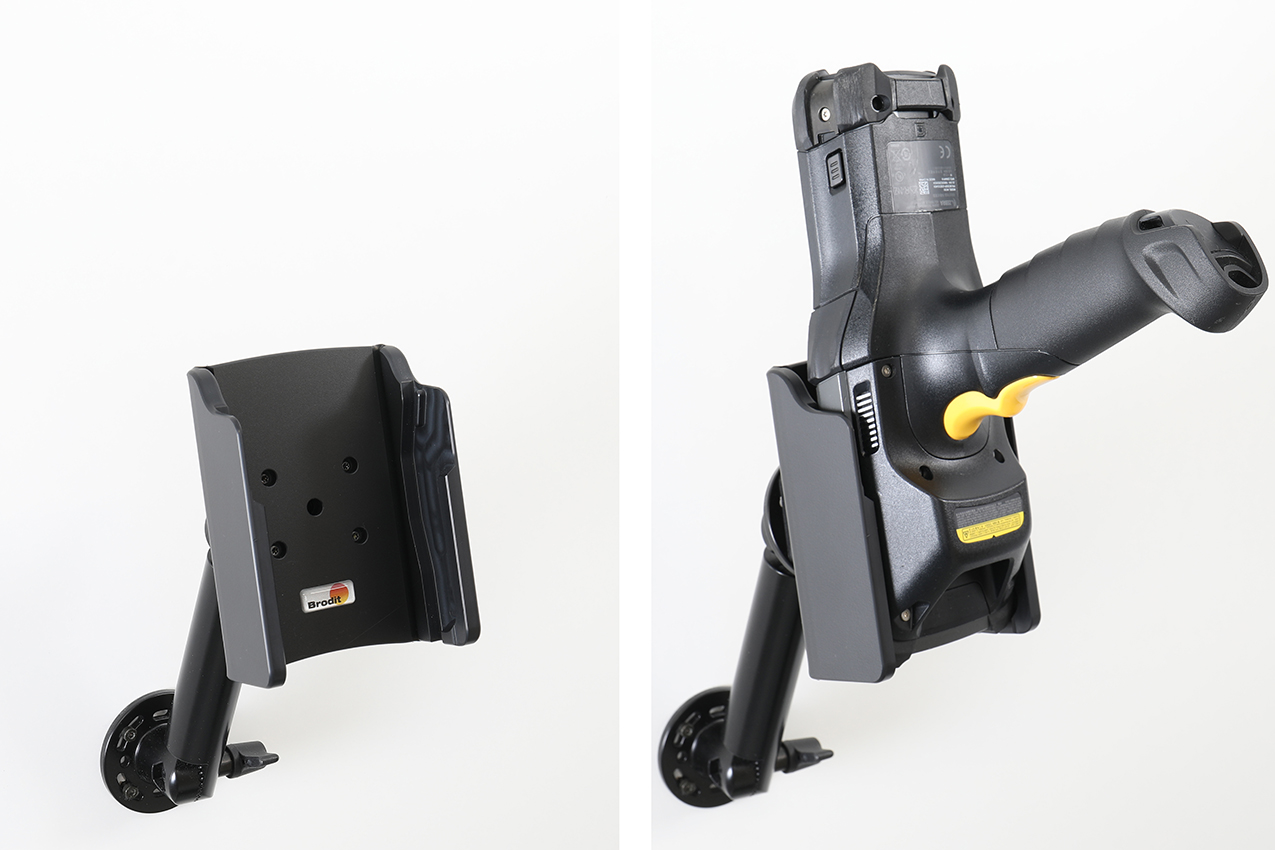

4. The holder is in place.

Használati útmutató letöltése

Kompatibilis modellek

  • Zebra MC9300
  • Zebra MC9400

Ne felejtse el a járművéhez tartozó Proclipet sem:
