711496 - Passzív tartó csuklóval

711496 - Passzív tartó csuklóval

For devices with pistol grip.

29.990 Ft
29.990 Ft
Akciós Elfogyott

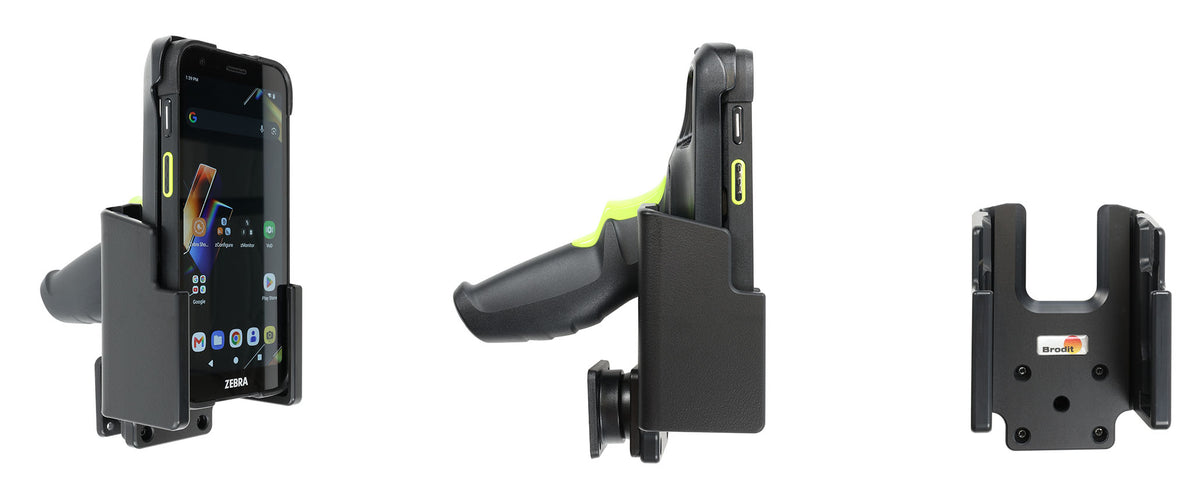

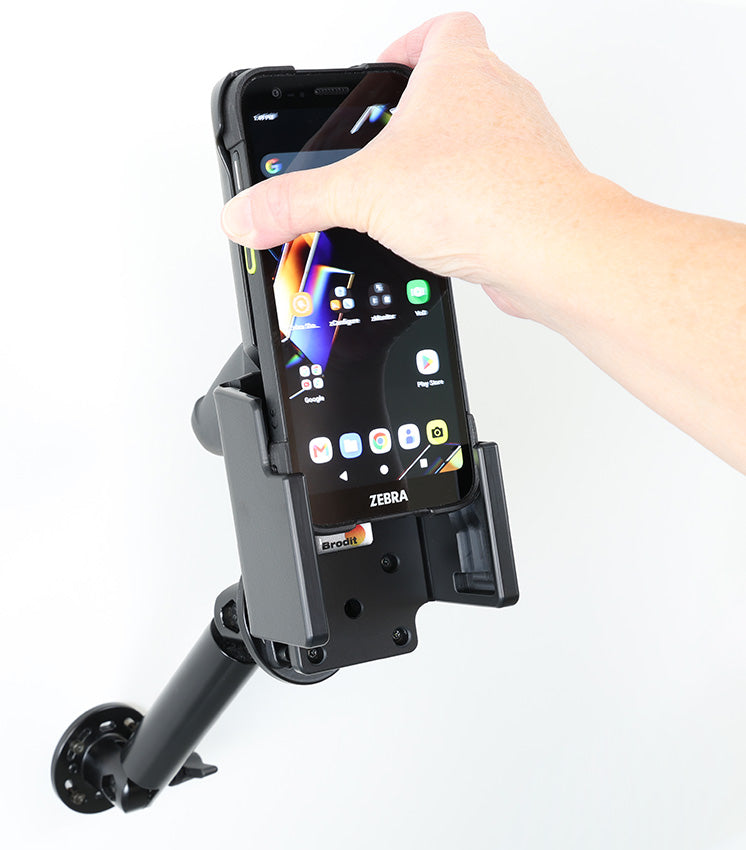

Have your device in easy reach in a holder, efficient and safe all work day! Brodit holders provide a neat and professional installation of your devices. Custom made holder with a perfect, firm fit for device with pistol grip. The device is placed face towards you in the holder, easy to insert/remove with a one-hand grip.

The holder is equipped with a tilt swivel so you can easily adjust the angle for better viewing, or switch between portrait and landscape mode. Tilts 17° and swivels 360°. Mounting plate 42x50 mm with 4 mm AMPS-holes. Made of high grade black ABS/Acetal plastic. Made in Sweden. Attach onto a Pedestal Mount.

  • Egy éves garancia
Minden részlet megtekintése

TOVÁBBI INFORMÁCIÓK

Beszerelés lépései

alternatetext alternatetext alternatetext alternatetext

Please read all of the instructions and  look at the pictures before attaching the holder.

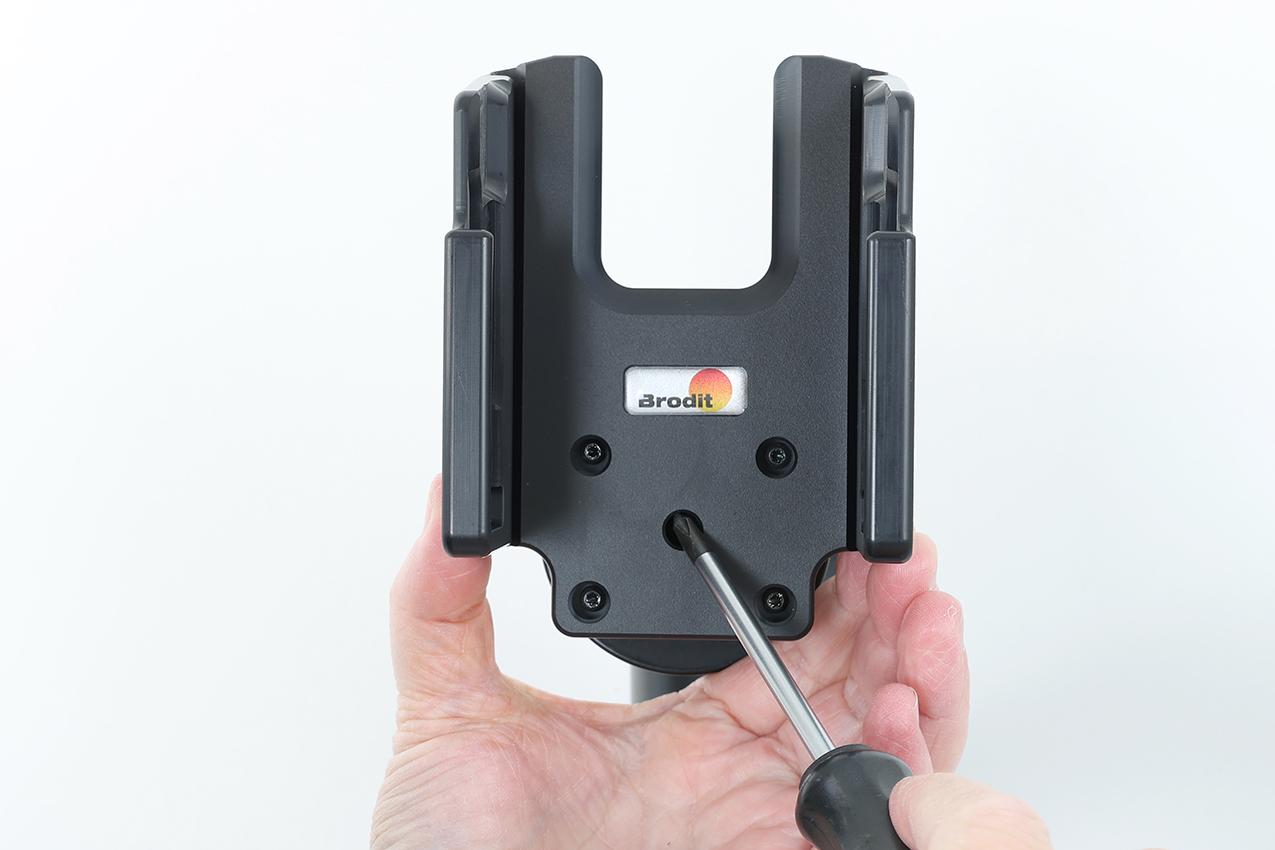

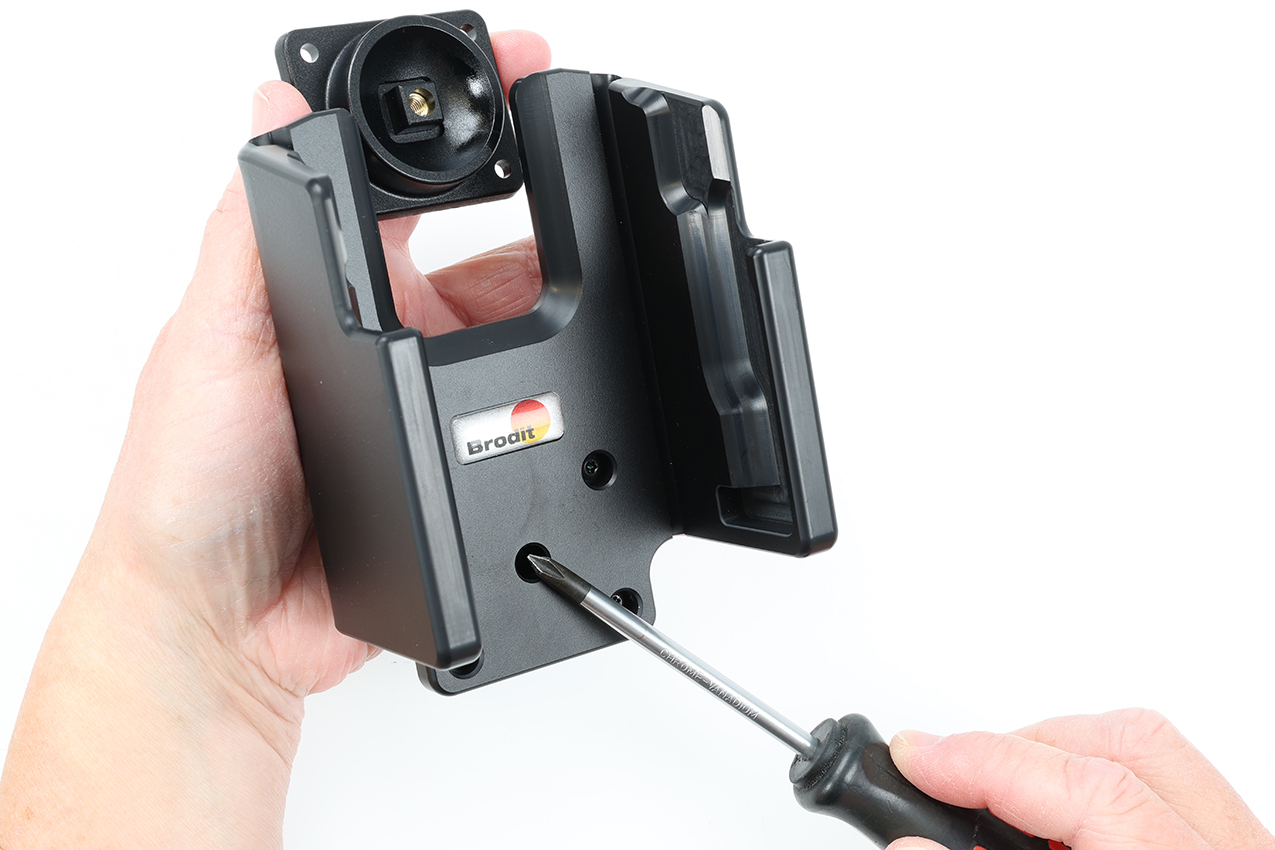

1. Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back.

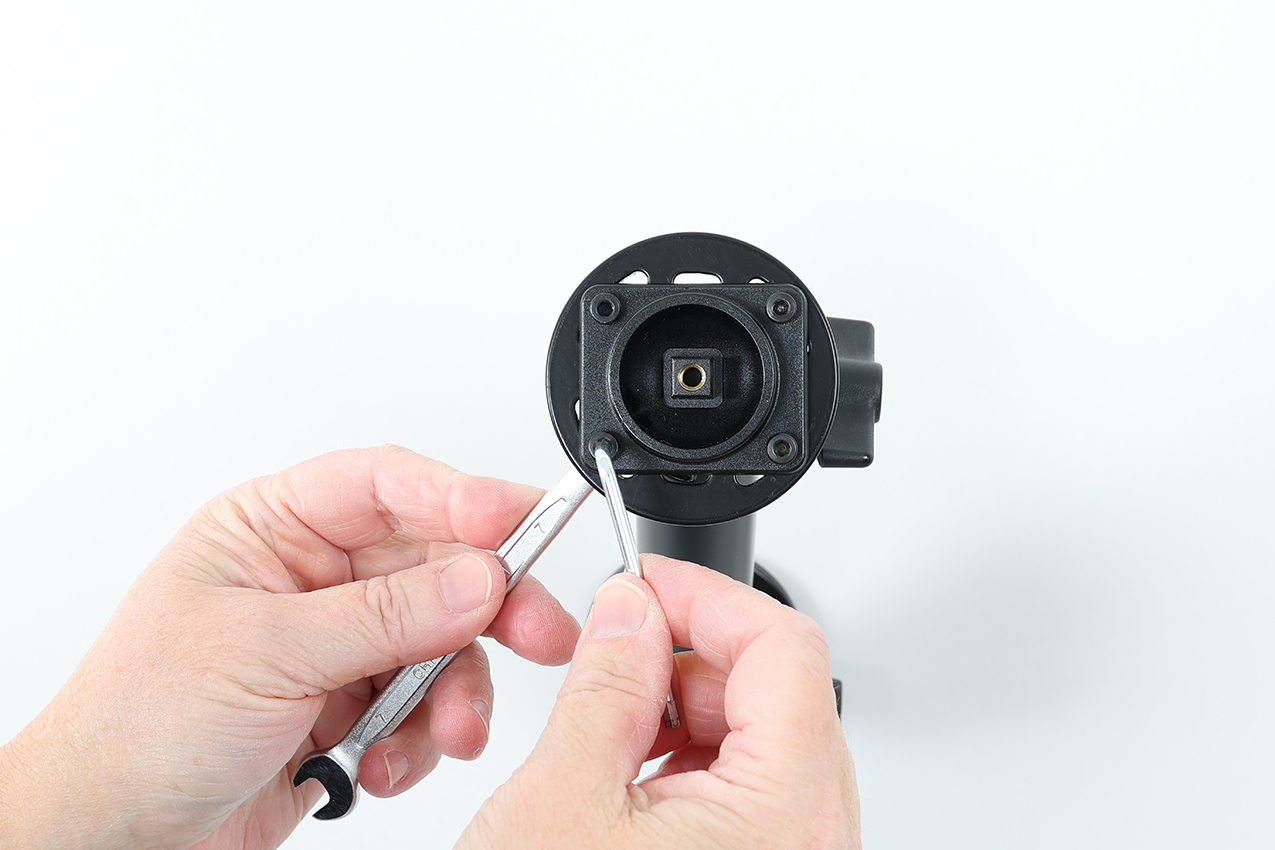

2. Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws.

3. Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel. Tighten the screw so the holder is firmly in place, but still can be adjusted.

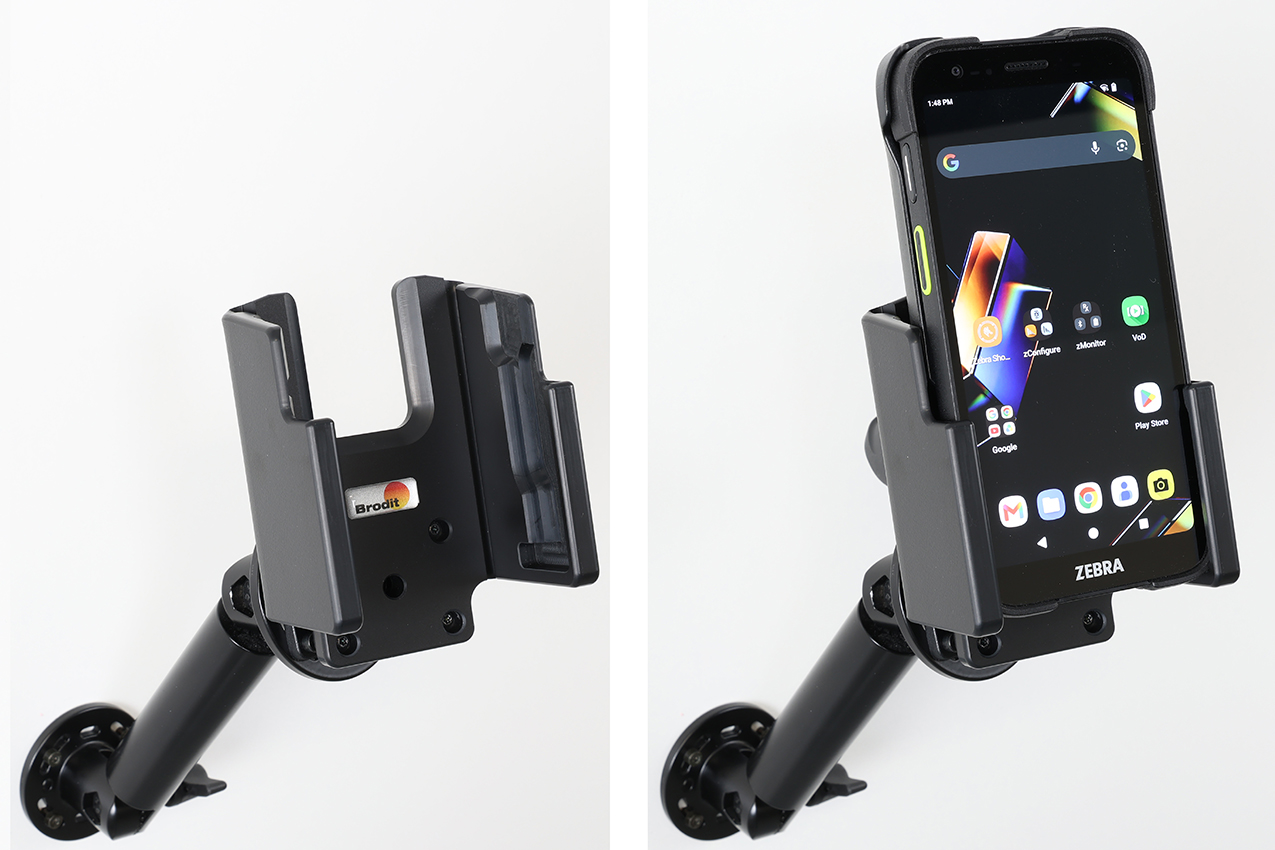

4. The holder is in place.

Használati útmutató letöltése

Kompatibilis modellek

  • Zebra TC701

Ne felejtse el a járművéhez tartozó Proclipet sem:
