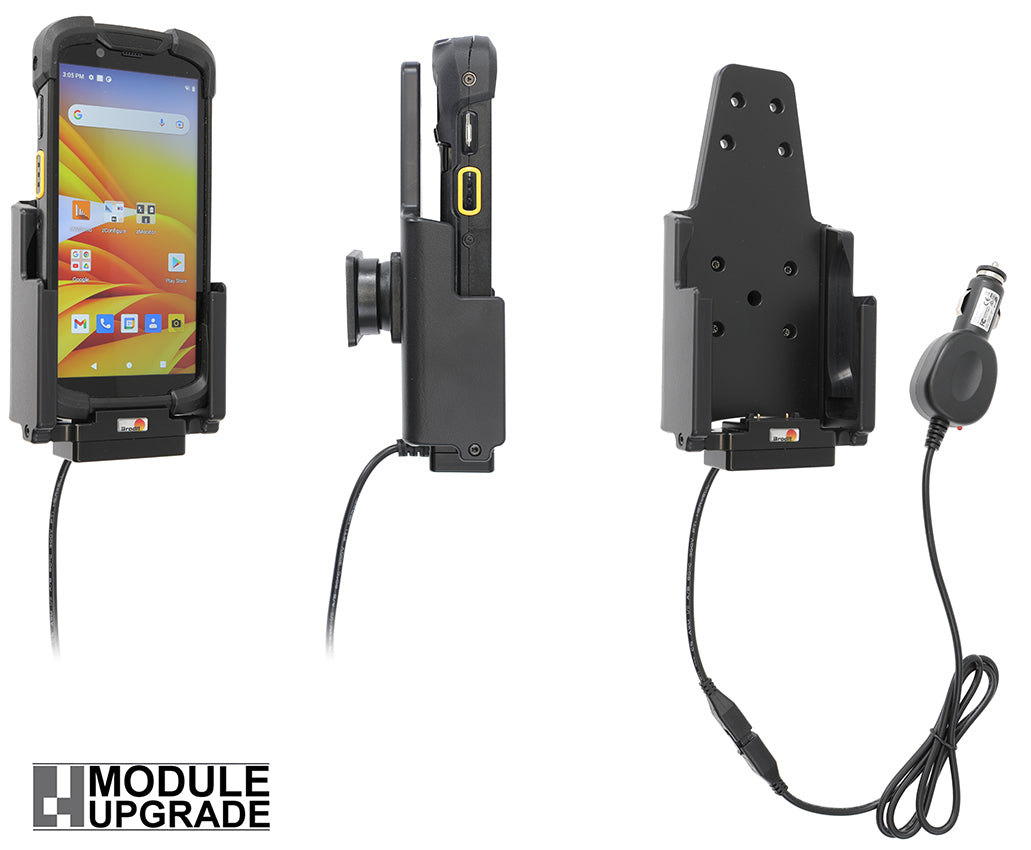

712310 - Aktív tartó szivargyújtóval

712310 - Aktív tartó szivargyújtóval

Csuklóval. 3A töltés. 12/24V. Easy-switch rendszerrel. Töltés pogo pineken keresztül. Kézszíjas vagy kézszíj nélküli készülékhez. Module Upgrade Cradle.

Normál ár 85.990 Ft
Normál ár Akciós ár 85.990 Ft
Akciós Elfogyott
The active holder charges your battery when it is in the holder. The charging device connects to the unit automatically when you put the unit in the holder. The holder is attached onto a tilt swivel and can be adjusted in order to avoid light reflection. Connects to the vehicle's cigarette lighter socket, 12/24 Volt.

Easy-switching system:
The easy-switching system enables you to upgrade the holder only, and keep the installed cables. It saves you a lot of time! When upgrading to a new device, you do not longer need to make a full installation. Same goes for maintenance in case of warranty or damage. You simply disconnect the holder from the charging cable via the Molex 6-pin quick connector, and then connect the new holder. The switch is done in a few seconds.

This is a Module Upgrade Cradle, this means that you can upgrade or replace features by using some of the following modules:
Item no. 216303 Key lock with two keys.
Item no. 217253 Retention-lock module.

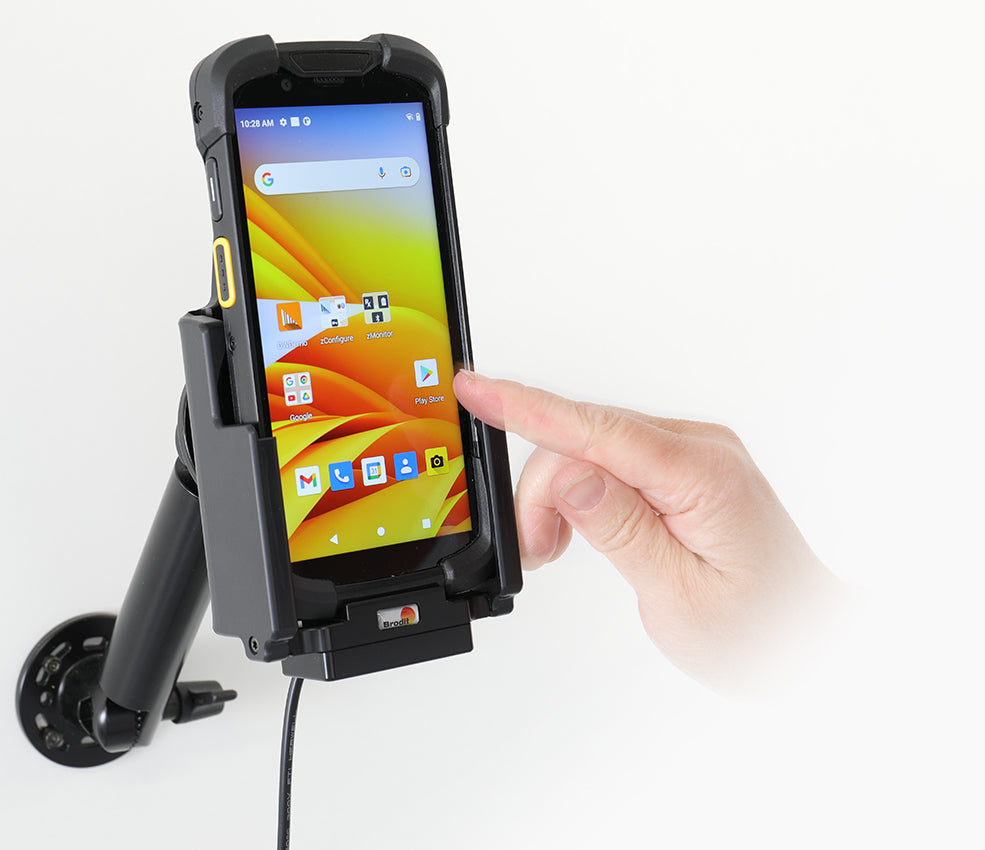

The holder is equipped with a tilt swivel so you can easily adjust the angle for better viewing, or switch between portrait and landscape mode. Tilts 17° and swivels 360°. Mounting plate 42x50 mm with 4 mm AMPS-holes. Made of high grade black ABS/Acetal plastic. Made in Sweden. Attach onto a Pedestal Mount or an ProClip mounting platform.
  • Egy éves garancia
Minden részlet megtekintése

TOVÁBBI INFORMÁCIÓK

Összecsukható tartalom

Beszerelés lépései

alternatetext alternatetext alternatetext alternatetext

Mielőtt elkezdené a telepítést, kérjük, tekintse meg a képeket és figyelmesen olvassa el a használati útmutatót!

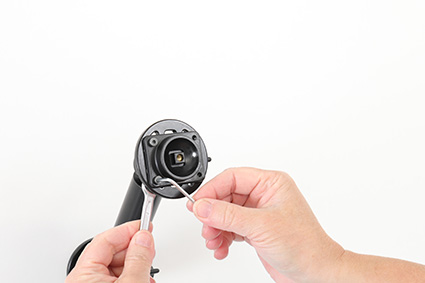

1. Csavarja ki a tartó közepén a csavart, amíg egy halk kattanást nem hall, így erős kézmozdulattal eltávolíthatja a csukló hátsó részét.

2. Helyezze a csukló talp részét a kívánt helyre. Ezután rögzítse a mellékelt csavarokkal.

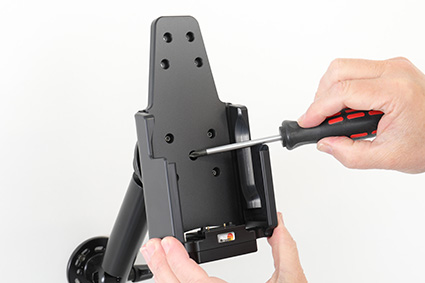

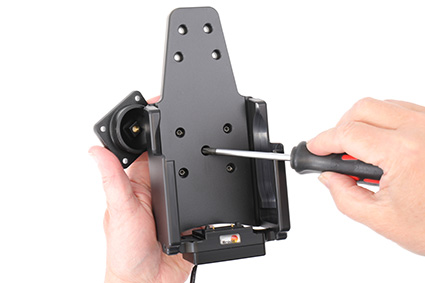

3. Helyezze a tartót a talp fölé úgy, hogy az illeszkedjen a csuklóval. Húzza meg a csavarokat, amíg a tartó szorosan a helyére nem kerül, de ez később még állítható.

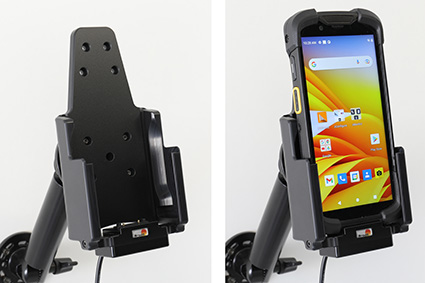

4. A tartó a helyére került.

Kompatibilis modellek

  • Zebra TC73
  • Zebra TC78

Töltési specifikáció

Bemeneti feszültség: DC/10-24V Töltési feszültség: DC/4.6-5.3V Kimeneti áram (Tipikus): 3.0A Bemeneti és kimeneti védelem: Bemeneti polaritás fordított/Kimeneti túlfeszültség/Kimeneti túláram/Kimeneti rövidzárlat védelem LED töltésjelző: Termék kimeneti jelző Működési hőmérséklet: 0°C ~ +40°C Tárolási hőmérséklet: -20°C ~ +80°C RoHS megfelelőség: ROHS

Ne felejtse el a járművéhez tartozó Proclipet sem:
