712486 - Aktív tartó szivargyújtóval

712486 - Aktív tartó szivargyújtóval

Fits devices with Rugged Boot / Exoskeleton. With AMPS, VESA 75 holes. With Easy-switching system.

Normál ár 101.990 Ft
Normál ár Akciós ár 101.990 Ft
Akciós Elfogyott
The Zebra ET401 serie Module Upgrade Cradles from Brodit are designed to withstand frequent wear and tear in professional every day use, providing a more productive working day and better working environment with your device within sight and reach. Safe, efficient and convenient!

This cradle is the perfect choice when you want to have your device installed in place and easy accessible. The cradle is customized with a perfect fit for devices with Rugged Boot / Exoskeleton. It has a robust design for use in a normal forklift environment. You have full access to the camera,scanner, buttons and ports while docked. Easy one-hand insertion and removal.

Easy-switching system:
The easy-switching system enables you to upgrade the holder only, and keep the installed cables. It saves you a lot of time! When upgrading to a new device, you do not longer need to make a full installation. Same goes for maintenance in case of warranty or damage. You simply disconnect the holder from the charging cable via the 6-pin quick connector, and then connect the new holder. The switch is done in a few seconds.

Attach the cradle onto any flat surface or Pedestal Mount in a forklift, truck, distribution vehicle, warehouse, table top etc. Backplate made of steel with 4 mm AMPS and 4 mm VESA 75 standard holes. Made of high grade ABS-, Acetal-plastic and metal. Color: Black. Made in Sweden.

Choose installation placement with care, devices must not be placed in positions where they may block the view or important controls. The cradle should only be attached onto a suitable place. Installations always take place at the customer's own discretion and responsibility.
  • Egy éves garancia
Minden részlet megtekintése

TOVÁBBI INFORMÁCIÓK

Összecsukható tartalom

Beszerelés lépései

alternatetext alternatetext alternatetext alternatetext

Kérjük, olvassa el az összes utasítást, és nézze meg a képeket, mielőtt felhelyezi a tartót.

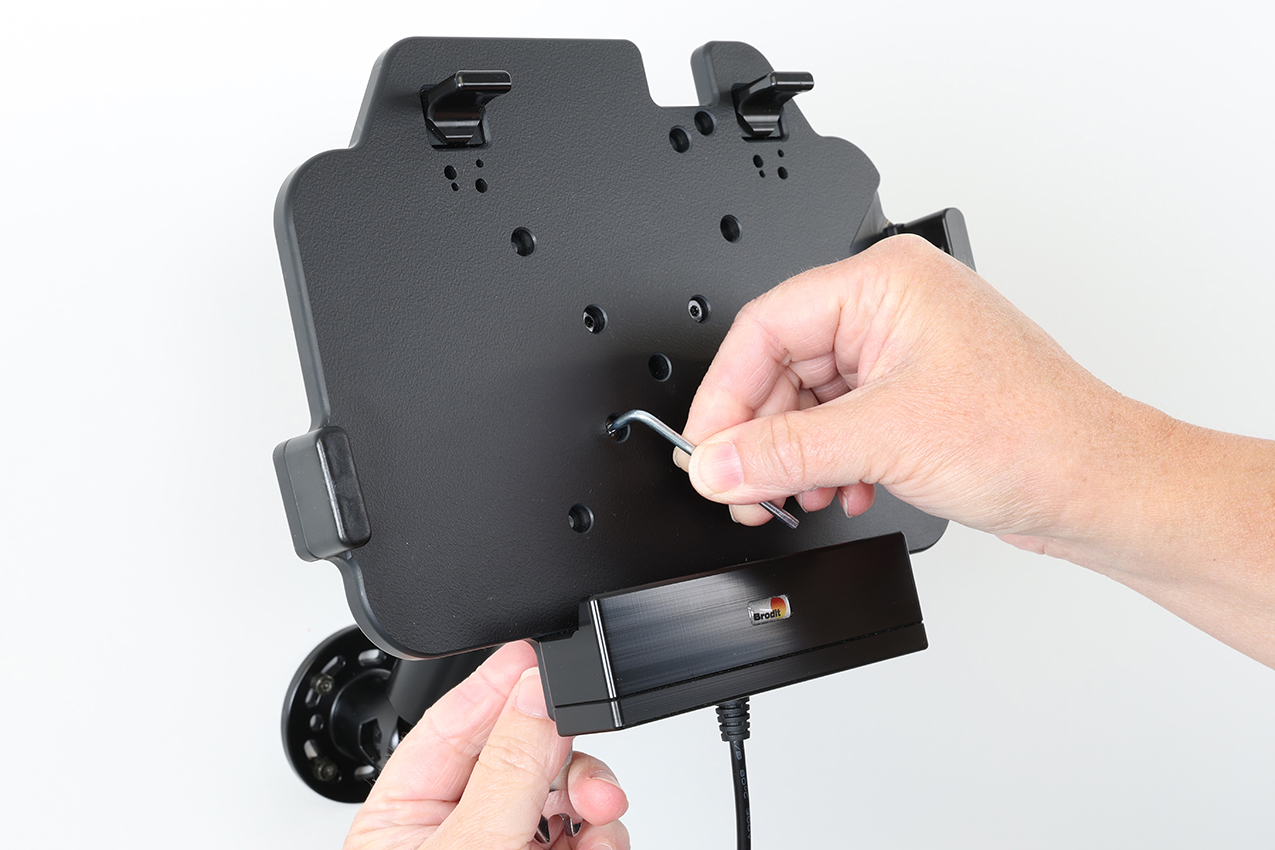

1. 1. Helyezze a tartót a kívánt helyre, és csavarozza be a mellékelt csavarokkal.

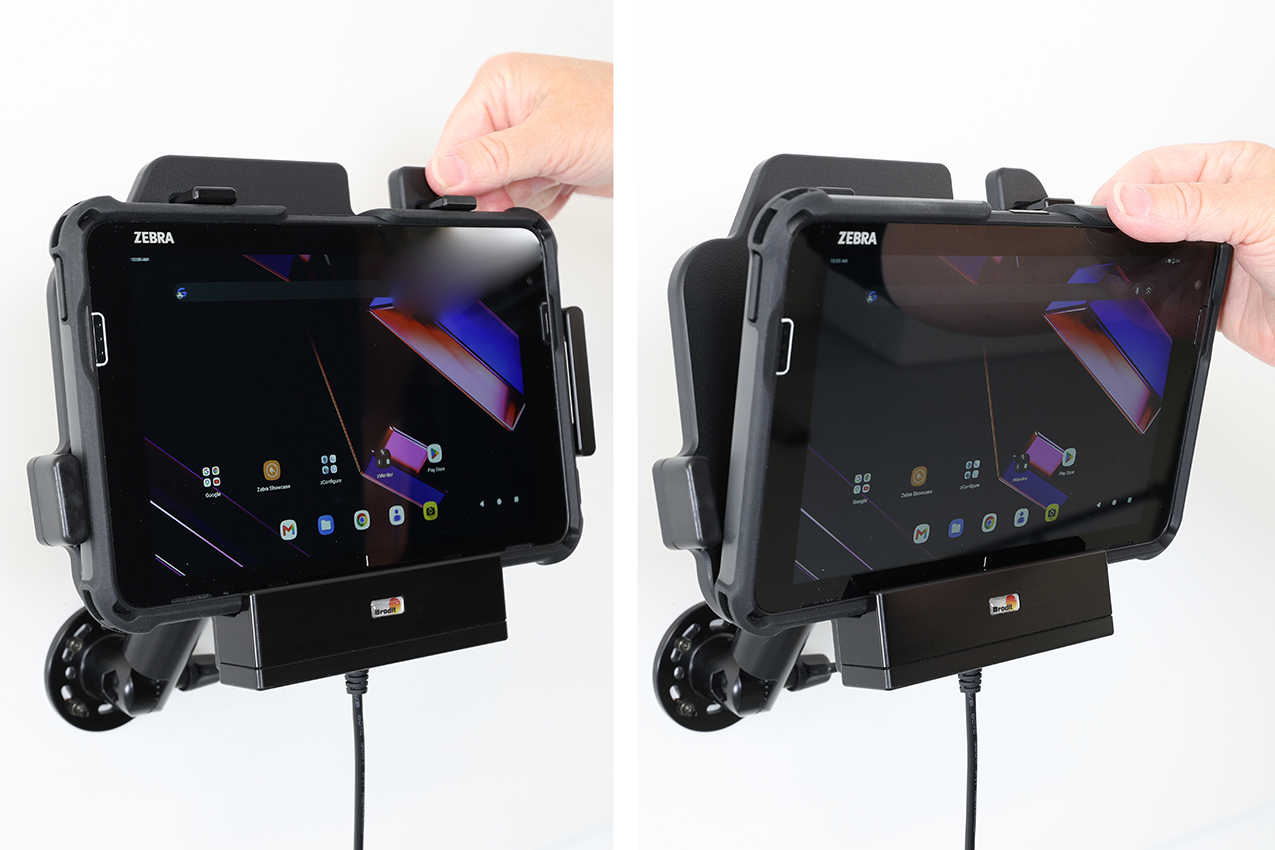

2. A készülék elhelyezése a tartóban: Helyezze a készülék alsó részét a tartóba, majd fordítsa/nyomja előre a felső részt, hogy az bepattanjon a tartóba.

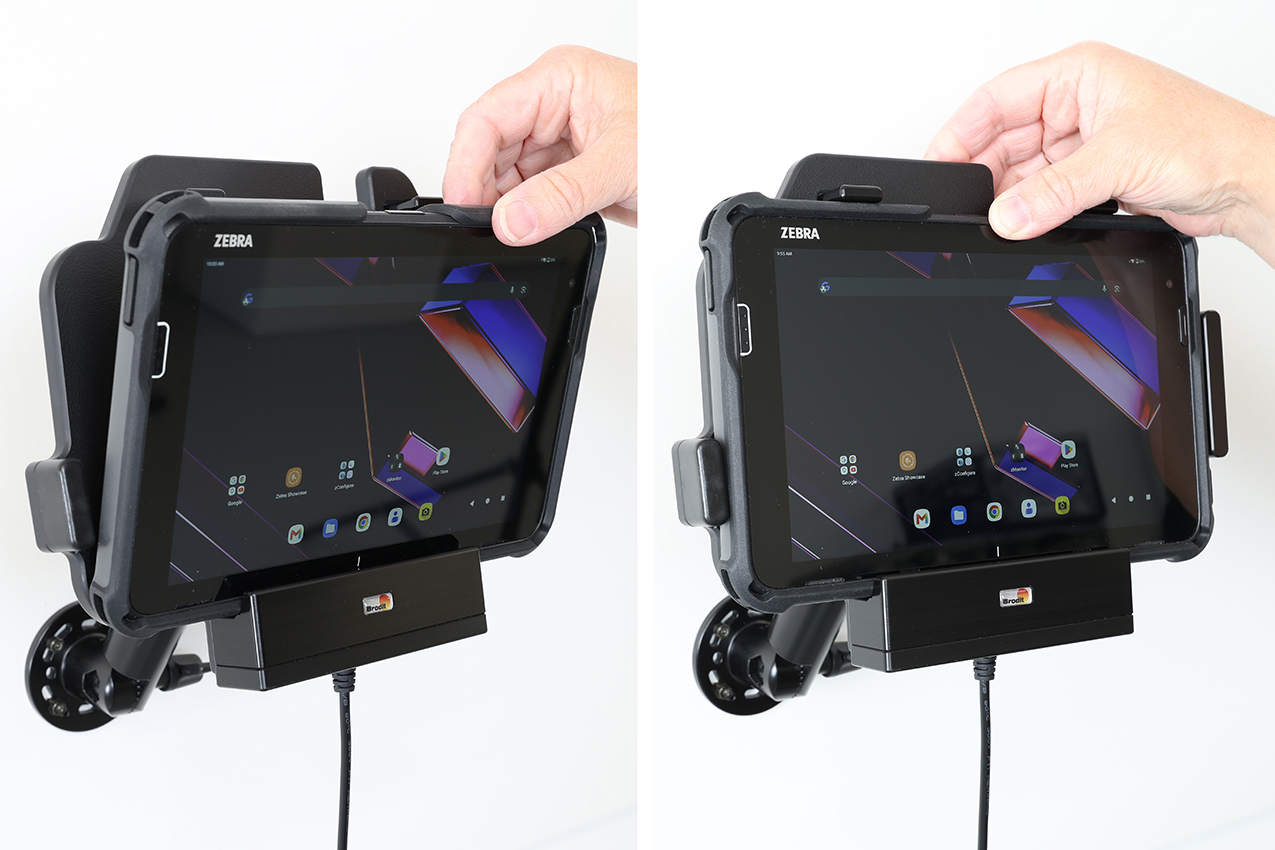

3. A készülék eltávolítása a tartóból: Nyomja felfelé a tartó felső részét, ezzel egyidejűleg húzza ki a készülék felső részét a tartóból, majd emelje fel és húzza ki a készüléket a tartóból.

4. A tartó a helyén van.

Kompatibilis modellek

  • Zebra ET401 8"

Töltési specifikáció

Bemeneti feszültség: 12V~24V Kimeneti áram: 12V3A Bemeneti és kimeneti védelem: Túláramvédelem: Bemeneti fordított feszültség védelem, kimeneti túláramvédelem LED-es töltésjelző: Tápfeszültségjelző /vörös Működési hőmérséklet: 0℃ ~ +40℃ Tárolási hőmérséklet: -20 ℃ ~ +60 ℃ RoHS kompatibilis: ROHS Tanúsítványok: CE/FCC/UKCA
