713462 - Aktív tartó fix bekötéssel
713462 - Aktív tartó fix bekötéssel
With tilt swivel. 5,4A charging. 12/24V. With Easy-switching system. Charging via pogo pins. Fits for device with or without handstrap, with/without extended battery.
Normál ár
96.990 Ft
Normál ár
Akciós ár
96.990 Ft
Egységár
/

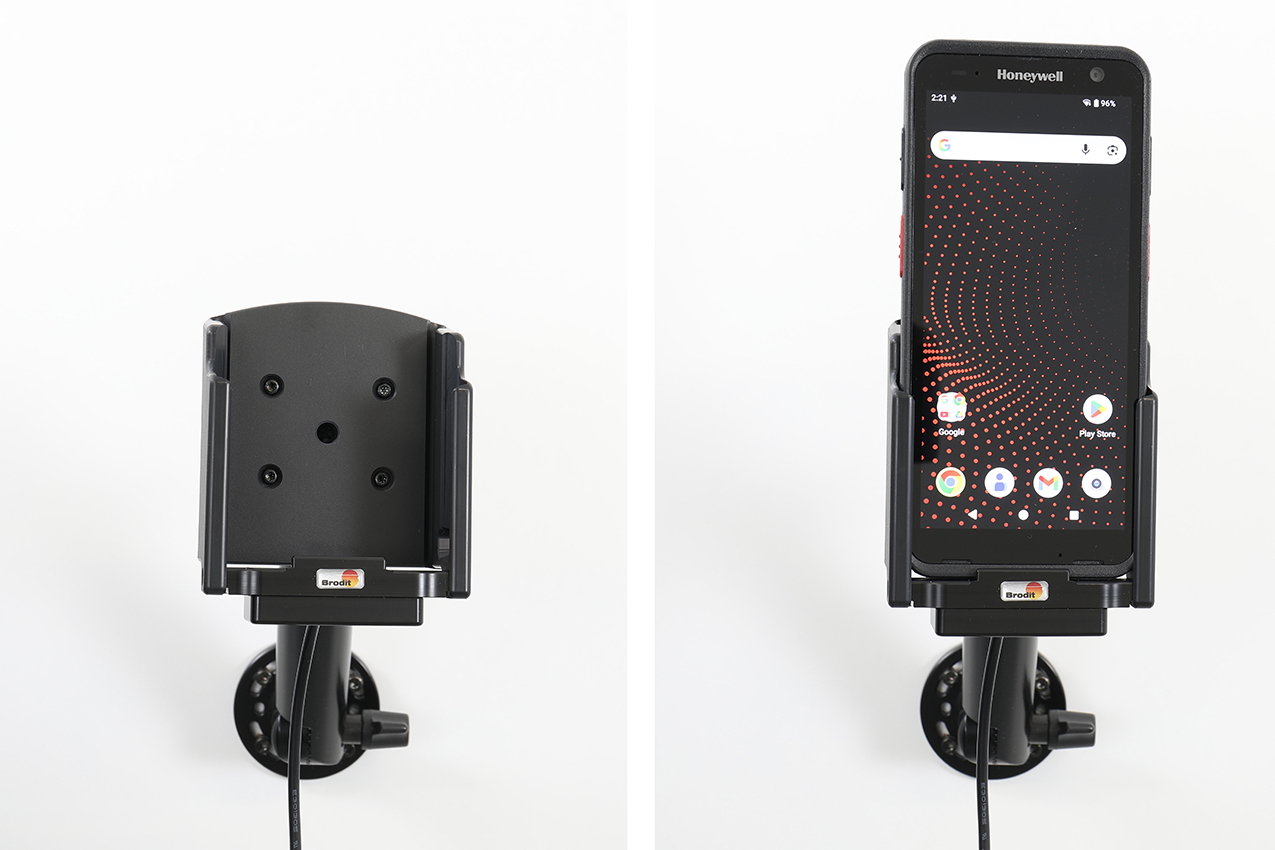

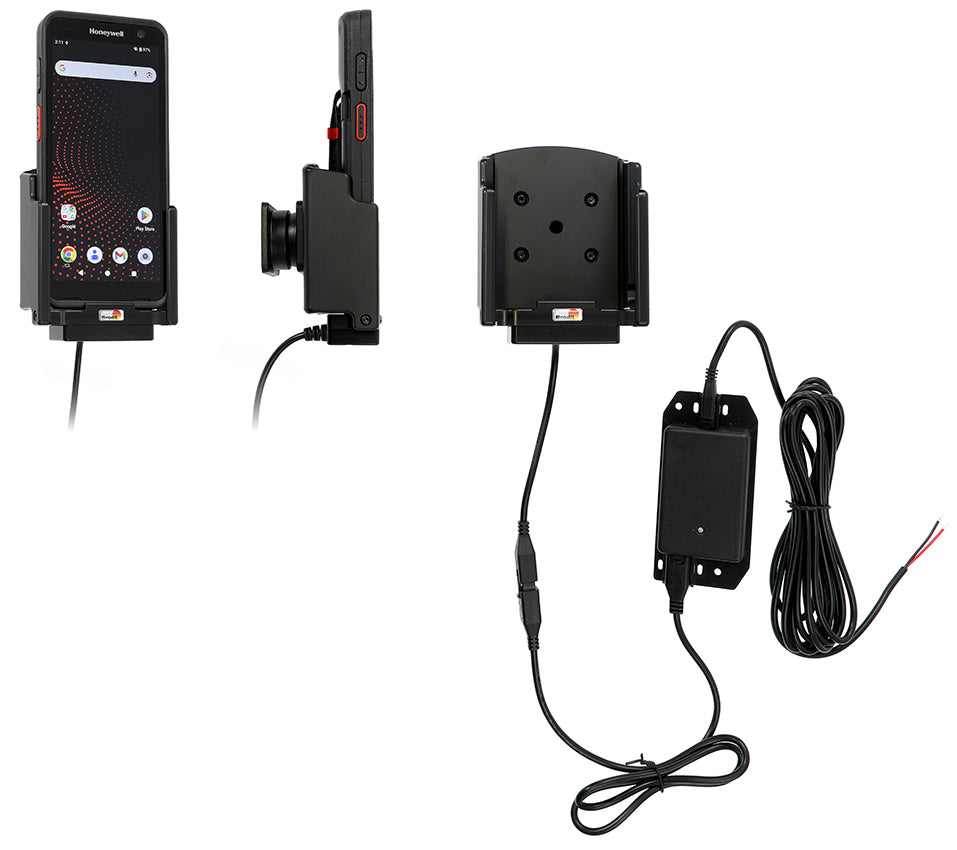

An active holder which is to be connected inside the dashboard, this gives a discreet, neat installation without cables hanging over the interior! You can choose to use the holder as an active holder for charging of your device only, or to connect an adapter to the Molex connector for additional features. Then you can use the holder also for power supply of a GPS receiver or other own solutions (can not be used for data communication or audio connection). 12/24 Volt. The product is E-approved. Professional installation recommended.
Easy-switching system:
The easy-switching system enables you to upgrade the holder only, and keep the installed cables. It saves you a lot of time! When upgrading to a new device, you do not longer need to make a full installation. Same goes for maintenance in case of warranty or damage. You simply disconnect the holder from the charging cable via the Molex 6-pin quick connector, and then connect the new holder. The switch is done in a few seconds.
The holder is compatible with the following original Honeywell accessorie.
Honeywell Extended Battery: CT70-BTEC-001 (The holders fit both extended battery and standard battery)
Honeywell Handstrap: CT45-HS-FM och CT40-HS-3PKC
The holder is equipped with a tilt swivel so you can easily adjust the angle for better viewing, or switch between portrait and landscape mode. Tilts 17° and swivels 360°. Mounting plate 42x50 mm with 4 mm AMPS-holes. Made of high grade black ABS/Acetal plastic. Made in Sweden. Connect the power cable with a 3A fuse. Professional installation recommended. Attach onto a ProClip Mounting Platform or a Pedestal Mount.
Easy-switching system:
The easy-switching system enables you to upgrade the holder only, and keep the installed cables. It saves you a lot of time! When upgrading to a new device, you do not longer need to make a full installation. Same goes for maintenance in case of warranty or damage. You simply disconnect the holder from the charging cable via the Molex 6-pin quick connector, and then connect the new holder. The switch is done in a few seconds.
The holder is compatible with the following original Honeywell accessorie.
Honeywell Extended Battery: CT70-BTEC-001 (The holders fit both extended battery and standard battery)
Honeywell Handstrap: CT45-HS-FM och CT40-HS-3PKC
The holder is equipped with a tilt swivel so you can easily adjust the angle for better viewing, or switch between portrait and landscape mode. Tilts 17° and swivels 360°. Mounting plate 42x50 mm with 4 mm AMPS-holes. Made of high grade black ABS/Acetal plastic. Made in Sweden. Connect the power cable with a 3A fuse. Professional installation recommended. Attach onto a ProClip Mounting Platform or a Pedestal Mount.
Egy éves garancia

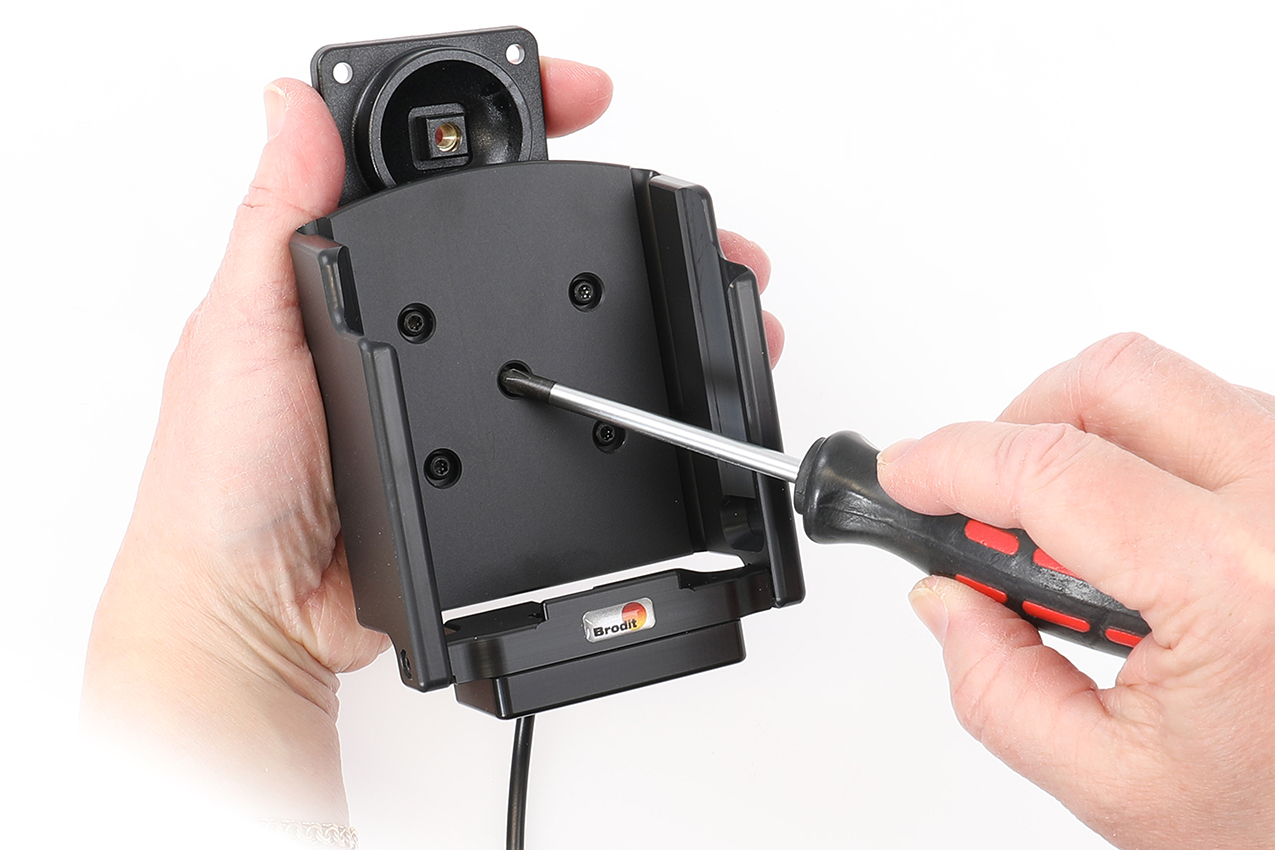

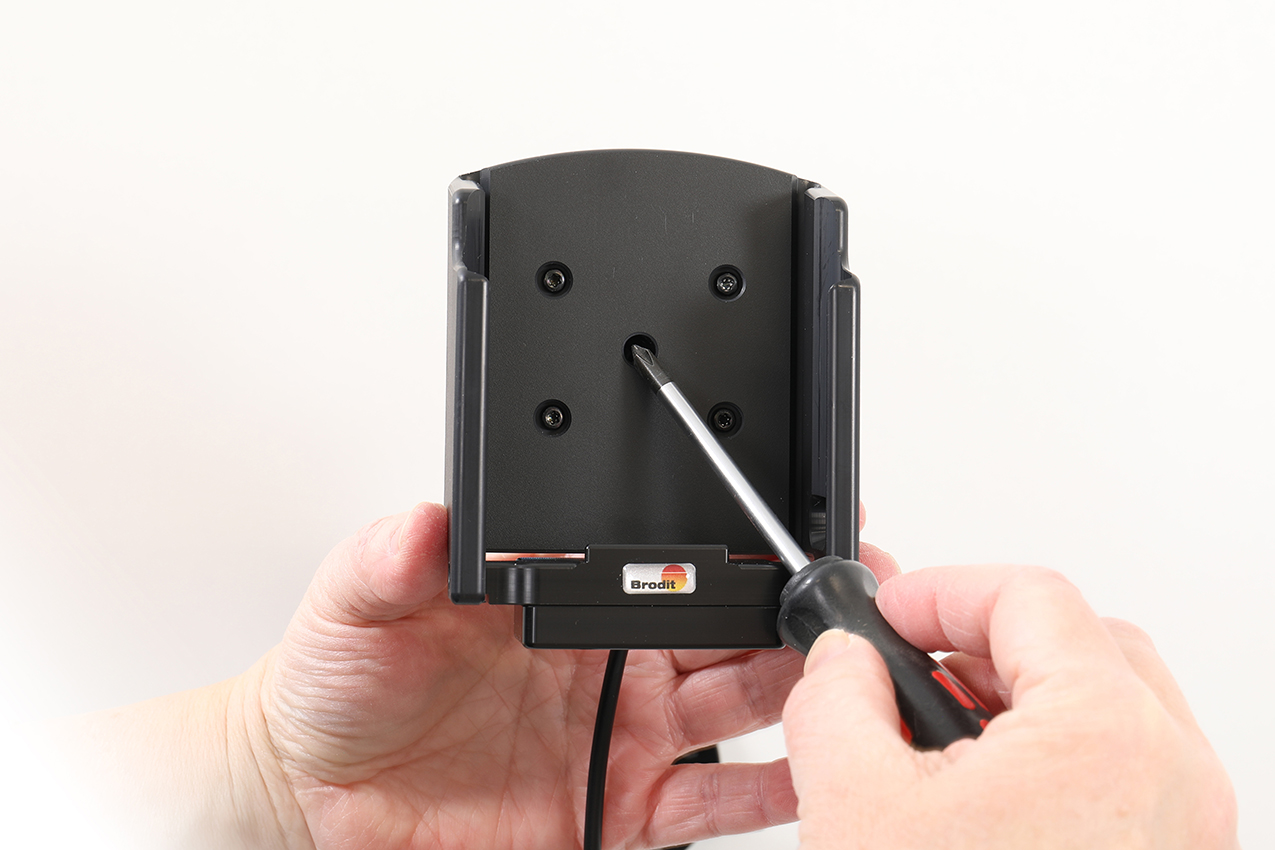

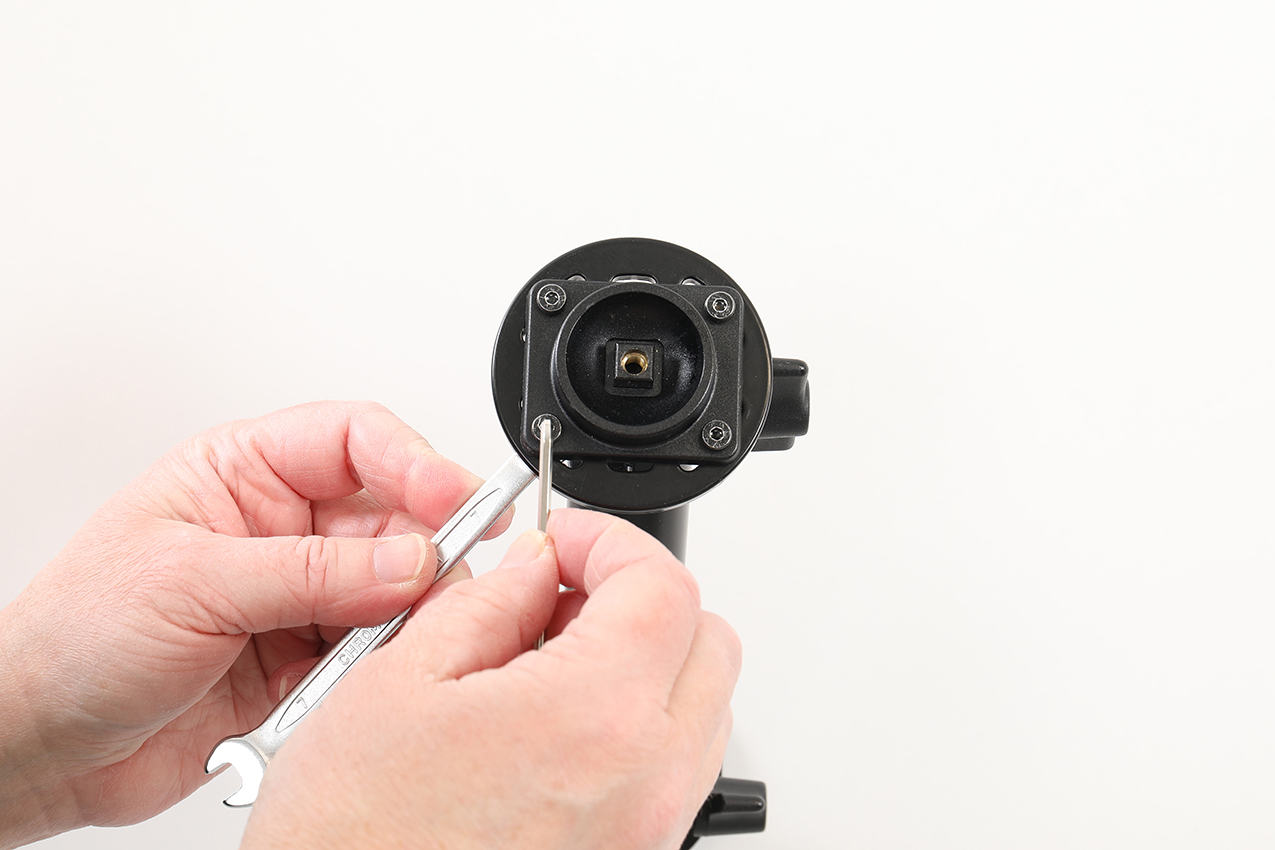

Beszerelés lépései
Kompatibilis modellek
- Honeywell CT70
Töltési specifikáció
Bemeneti feszültség: 10-30VDC Töltési feszültség: 5.4V Kimeneti áram (Typ): 2.7A Névleges teljesítmény: 15W Bemeneti és kimeneti védelem: Bemeneti polaritás megfordítása / kimeneti túlfeszültség / kimeneti túláram / kimeneti rövidzárlatvédelem LED-es töltésjelző: Tápfeszültség bemenet jelző (zöld), Ovp/Ocp/Output short (piros) DC-DC átalakítás hatékonysága: 88% Működési hőmérséklet: 0°C ~ +40°C Tárolási hőmérséklet: -20°C ~ +80°C Anyagból készült: ABS+PC Engedélyek: CE, E-jel, FCC, RoHS
