713479 - Aktív tartó fix bekötéssel
713479 - Aktív tartó fix bekötéssel
With tilt swivel. 5,4A charging. 12/24V. With Easy-switching system. Charging via pogo pins.
Normál ár
89.990 Ft
Normál ár
Akciós ár
89.990 Ft
Egységár
/

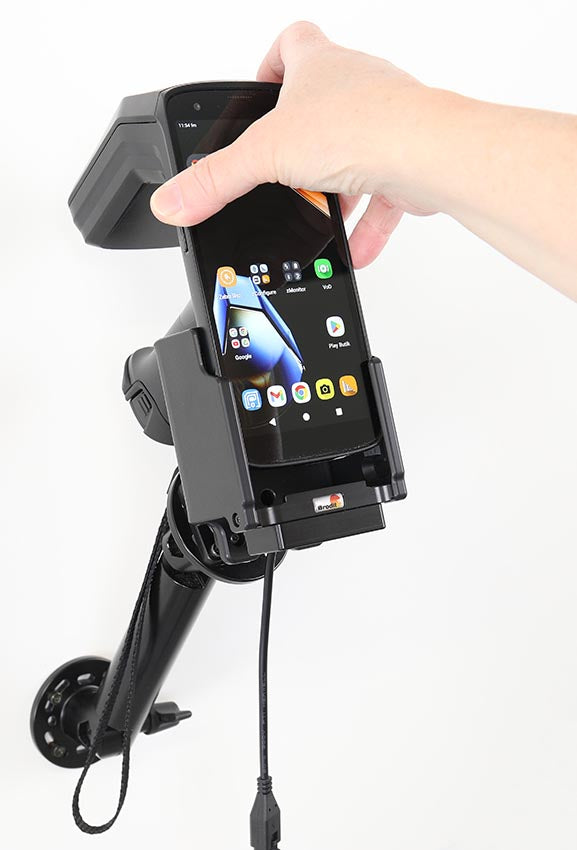

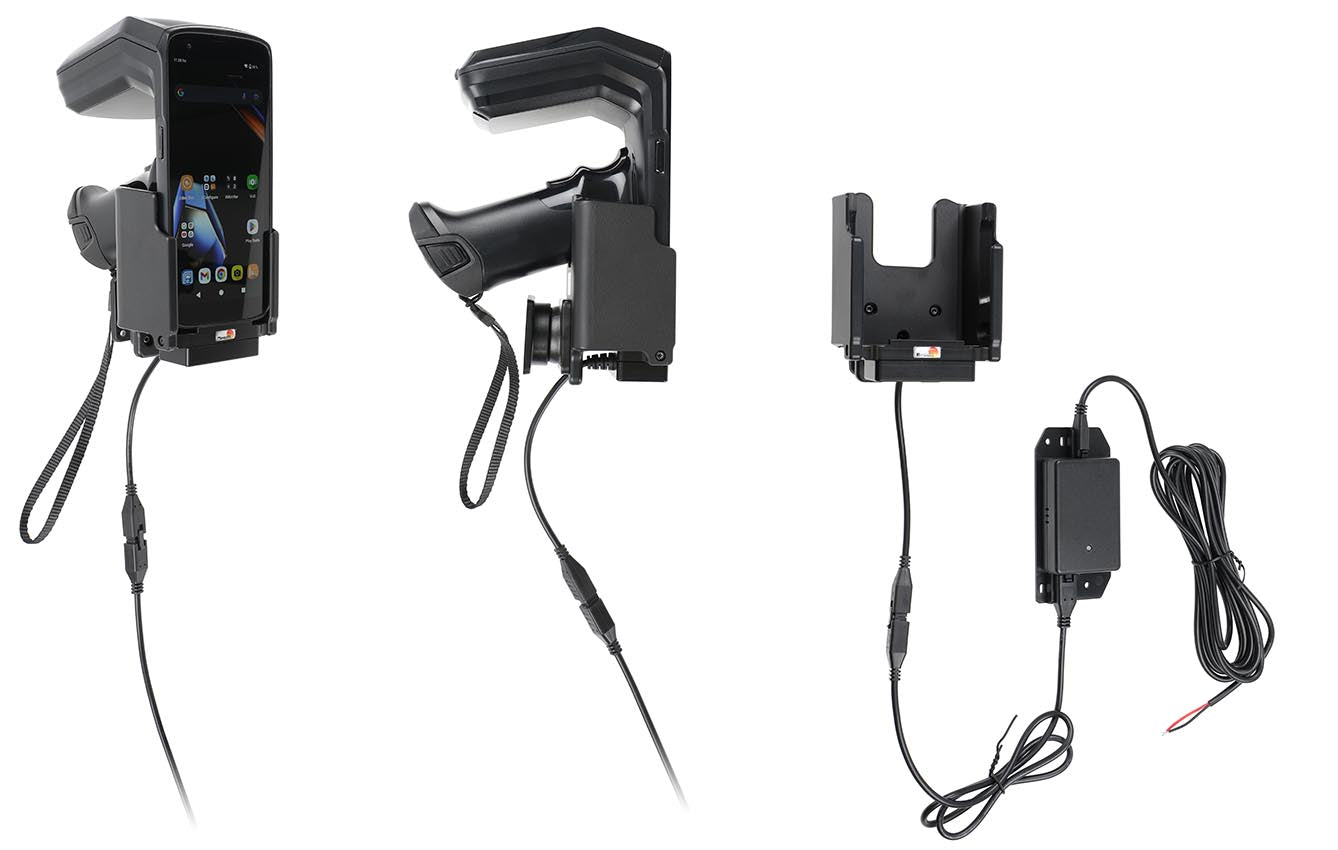

The active holder charges your battery when it is in the holder. The charging device connects to the unit automatically when you put the unit in the holder. The holder is attached onto a tilt swivel and can be adjusted in order to avoid light reflection. Connects to the vehicle's cigarette lighter socket, 12/24 Volt. The product is E-approved. Professional installation recommended.
Easy-switching system:
The easy-switching system enables you to upgrade the holder only, and keep the installed cables. It saves you a lot of time! When upgrading to a new device, you do not longer need to make a full installation. Same goes for maintenance in case of warranty or damage. You simply disconnect the holder from the charging cable via the Molex 6-pin quick connector, and then connect the new holder. The switch is done in a few seconds.

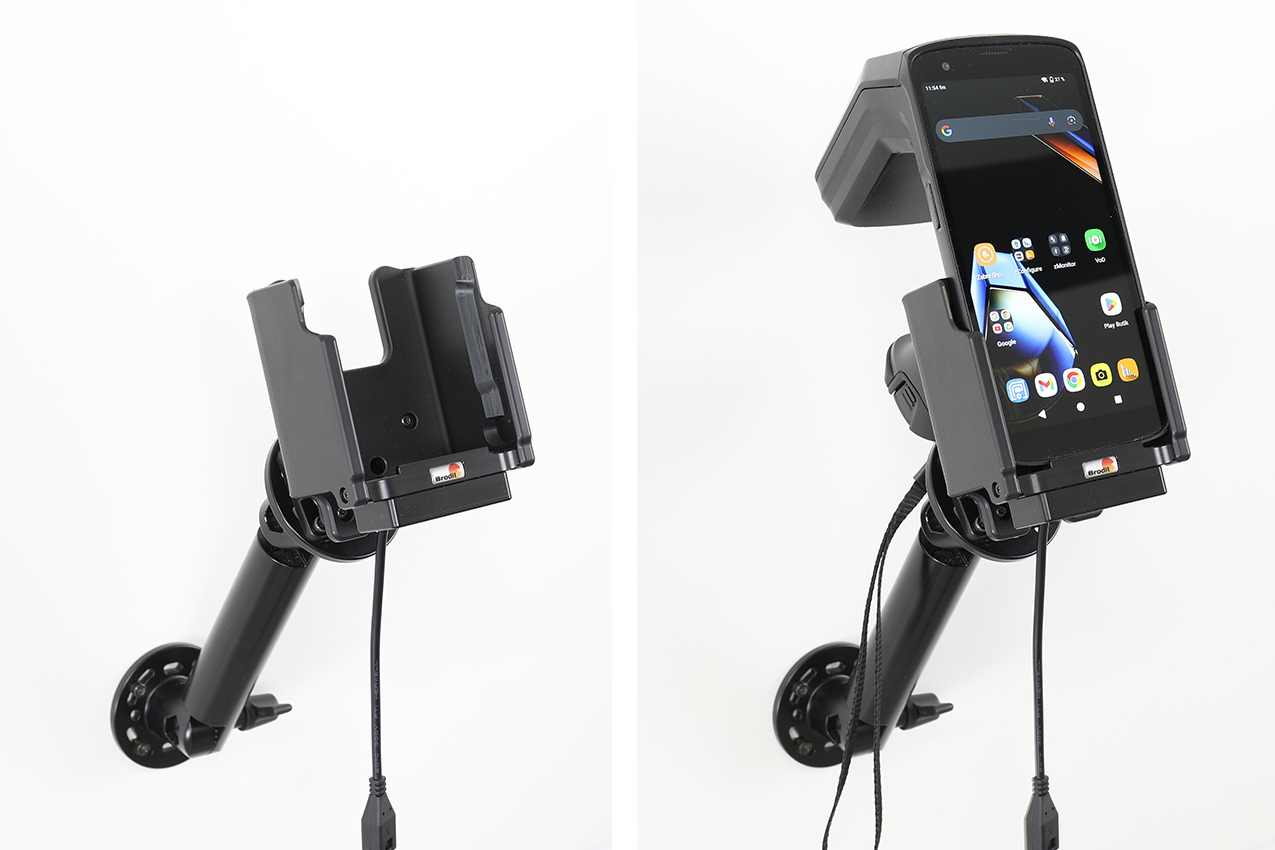

The holder is equipped with a tilt swivel so you can easily adjust the angle for better viewing, or switch between portrait and landscape mode. Tilts 17° and swivels 360°. Mounting plate 42x50 mm with 4 mm AMPS-holes. Made of high grade black ABS/Acetal plastic. Made in Sweden. Connect the power cable with a 3A fuse. Professional installation recommended. Attach onto a Pedestal Mount.
Easy-switching system:
The easy-switching system enables you to upgrade the holder only, and keep the installed cables. It saves you a lot of time! When upgrading to a new device, you do not longer need to make a full installation. Same goes for maintenance in case of warranty or damage. You simply disconnect the holder from the charging cable via the Molex 6-pin quick connector, and then connect the new holder. The switch is done in a few seconds.
The holder is equipped with a tilt swivel so you can easily adjust the angle for better viewing, or switch between portrait and landscape mode. Tilts 17° and swivels 360°. Mounting plate 42x50 mm with 4 mm AMPS-holes. Made of high grade black ABS/Acetal plastic. Made in Sweden. Connect the power cable with a 3A fuse. Professional installation recommended. Attach onto a Pedestal Mount.
Egy éves garancia

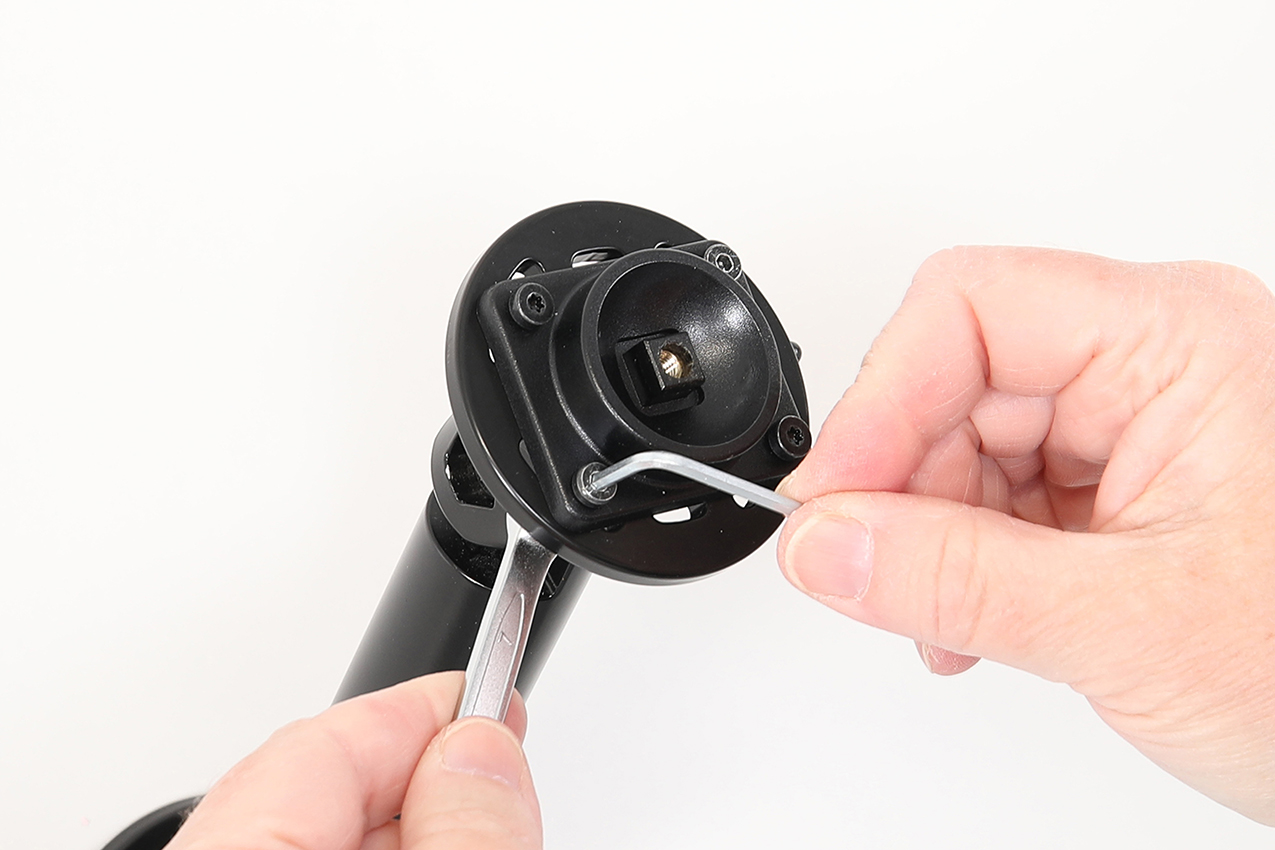

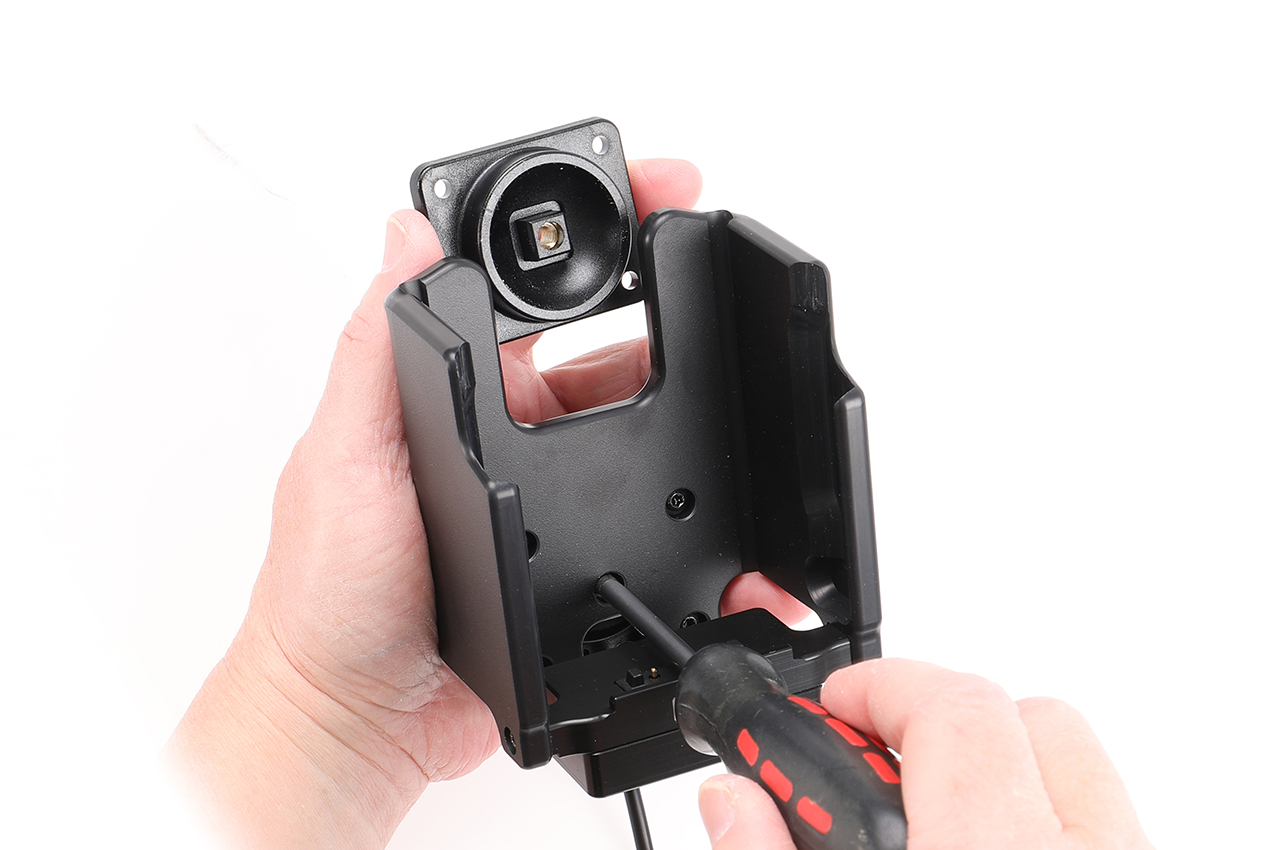

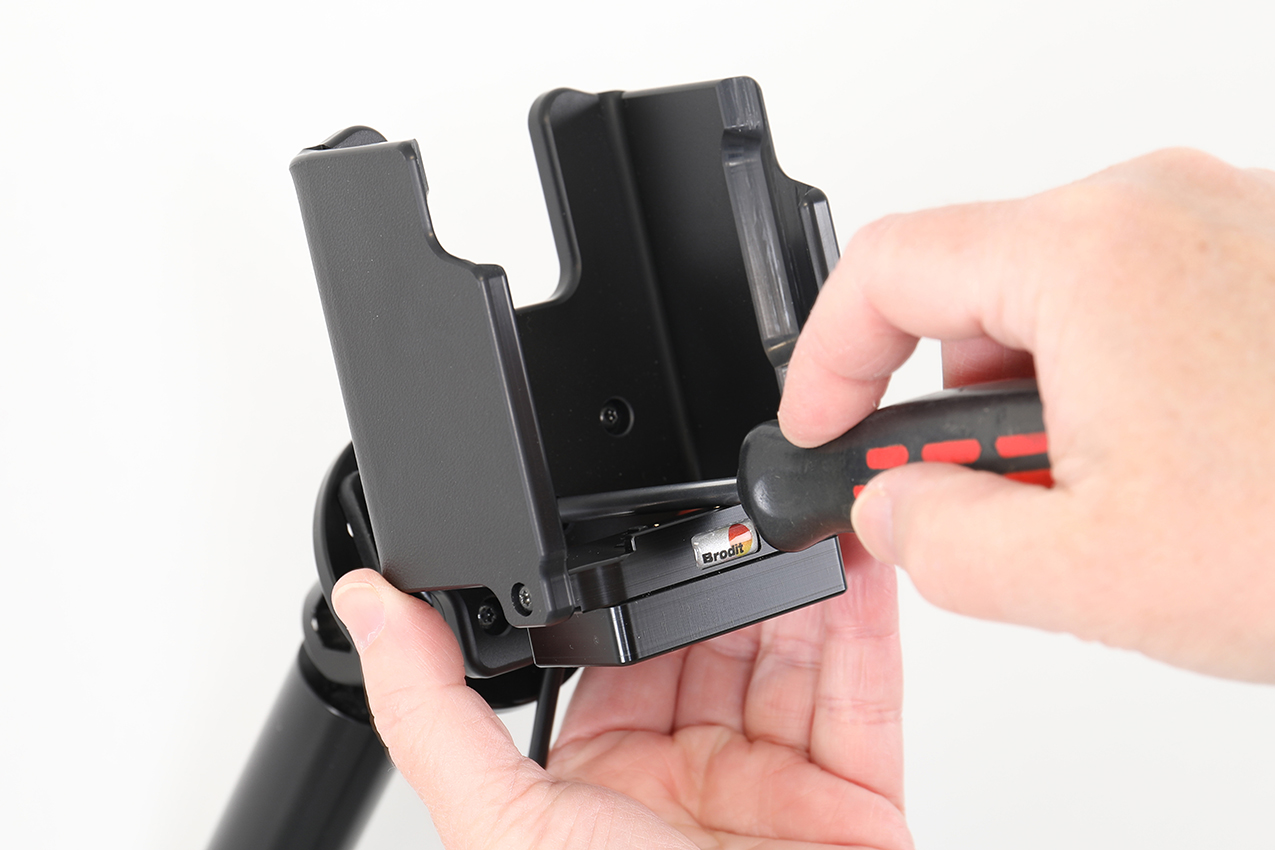

Beszerelés lépései
Kompatibilis modellek
- Zebra TC22R
Töltési specifikáció
Bemeneti feszültség: 10-30VDC Töltési feszültség: 5.4V Kimeneti áram (Typ): 2.7A Névleges teljesítmény: 15W Bemeneti és kimeneti védelem: Bemeneti polaritás megfordítása / kimeneti túlfeszültség / kimeneti túláram / kimeneti rövidzárlatvédelem LED-es töltésjelző: Tápfeszültség bemenet jelző (zöld), Ovp/Ocp/Output short (piros) DC-DC átalakítás hatékonysága: 88% Működési hőmérséklet: 0°C ~ +40°C Tárolási hőmérséklet: -20°C ~ +80°C Anyagból készült: ABS+PC Engedélyek: CE, E-jel, FCC, RoHS
