718300 - Qi vezeték nélküli aktív tartó szivargyújtóval
718300 - Qi vezeték nélküli aktív tartó szivargyújtóval
With USB-A cable + car charger with 2 USB-A ports: Type-A and Type-C. wireless charging. Adjustable holder. Fits for devices with and without skin with the following dimensions: Width: 61-83 mm, Thickness: 6-11 mm.
With USB-A cable with cig-plug adapter, choose to connect either to the vehicle's USB-A outlet or the 12/24V socket. The cig-plug adapter has two USB ports: Type-A and Type-C. You have full access to the camera and all buttons when the device is in the holder. It is easy to slide the device into place in the holder so it connects to the charging, and to take it out of the holder when leaving the car.
The holder is equipped with a tilt swivel so you can easily adjust the angle for better viewing, or switch between portrait and landscape mode. Tilts 17° and swivels 360°. 12/24 Volt. Mounting plate 42x50 mm with 4 mm AMPS-holes. Made of high grade black ABS/Acetal plastic. Manufactured in Sweden. Attach onto a ProClip mounting platform.
Egy éves garancia
Beszerelés lépései
Kompatibilis modellek
- Apple iPhone 11
- Apple iPhone 11 Pro
- Apple iPhone 11 Pro Max
- Apple iPhone 12
- Apple iPhone 12 Mini
- Apple iPhone 12 Pro
- Apple iPhone 12 Pro Max
- Apple iPhone 13
- Apple iPhone 13 Mini
- Apple iPhone 13 Pro
- Apple iPhone 13 Pro Max
- Apple iPhone 14
- Apple iPhone 14 Plus
- Apple iPhone 14 Pro
- Apple iPhone 14 Pro Max
- Apple iPhone 15
- Apple iPhone 15 Plus
- Apple iPhone 15 Pro
- Apple iPhone 15 Pro Max
- Apple iPhone 16
- Apple iPhone 16 Plus
- Apple iPhone 16 Pro
- Apple iPhone 16 Pro Max
- Apple iPhone 16e
- Apple iPhone 17
- Apple iPhone XR
- Oppo A17
- Oppo A17k
- Oppo Find X5
- Oppo Find X5 Lite
- Oppo Find X5 Pro
- Oppo Reno 8 4G
- Oppo Reno 8 Z
- Oppo Reno7 Lite
- Oppo Reno7 Pro
- Samsung Galaxy S10
- Samsung Galaxy S20 4G, 5G (SM-G981B/SM-G981F)
- Samsung Galaxy S20 Plus 5G (SM-G986B/SM-G986F)
- Samsung Galaxy S21 5G SM-G991B/SM-G991B/DS
- Samsung Galaxy S21 Ultra 5G SM-G9988/DS
- Samsung Galaxy S21+ 5G SM-G996B/SM-G996B/DS
- Samsung Galaxy S22 5G SM-S901B/SM-S901B/DS
- Samsung Galaxy S22 Ultra 5G (SM-S908B/SM-S908B/DS)
- Samsung Galaxy S22+ 5G (SM-S906B/SM-S906B/DS)
- Samsung Galaxy S23 Ultra SM-S918B/DS
- Samsung Galaxy S23+ SM-S916B/DS
- Google Pixel 6
- Google Pixel 6 Pro
- Google Pixel 6A
- Google Pixel 7
- Huawei Mate 40E
- Huawei Mate 40E 4G
- Huawei Mate 40E Pro 4G
- Huawei Mate 50
- Huawei Mate 50 Pro
- Huawei Mate 50 RS Porsche Design
Töltési specifikáció
TECHNICAL SPECIFICATIONS WIRELESS CHARGING HOLDER:
• Power Input Voltage: 5 V DC | 9V DC | 12 V DC
• Supported Power Profiles: Qualcomm Quick Charge 2.0 | 3.0
• Output Power: 5W | 7.5W | 10W | 15W
• Tx/Rx Transmit Distance: 3 - 4.5mm
• Transmission Efficiency: 70% +/- 5%
• Operating Temperature: 0° - 40° Centigrade
• Storage Temperature: -20° - +60° Centigrade
• Short Circuit Protection: Auto Recovery
• Over Current Protection: Auto Recovery
• Product Approvals: CE-RED | E-Mark | FCC | Qi 15W EPP
• Product Compliance: RoHs | WEEE | REACH
TECHNICAL SPECIFICATIONS POWER SUPPLY UNIT:
- Input voltage: DC12-24V 7A Max
- Output USB-A: 5V/3A, 9V/2A, 10V/2A, 12V/2.5A 30W Max
- Output USB-C: 5V/3A, 9V/2.77A, 12V/2.5A, 15V/2A, 20V/1.5A 30W Max
- In Total: 60W Max
- Approvals: CE, RoHS, FCC, UKCA
- Materials: Housing: aluminum alloy. Top plastic cover: fireproof PC
CONNECT YOUR HOLDER

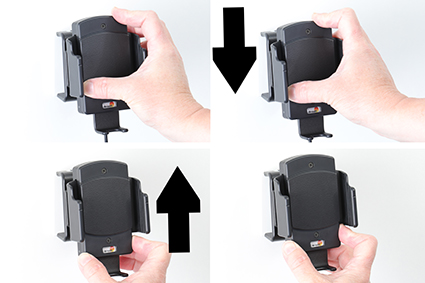

Connect the Type-C USB cable to the holder. Carefully slide your phone straight down into the holder until it rests naturally at the bottom. The wireless charger will automatically connect and start charging. Your phone can be removed anytime while charging. When removing the phone the charging automatically stops.
IMPORTANT NOTE: To ensure your holder works in fast charging modes the cable that connects the holder to the power supply should always be connected to the Green USB-A port on the power supply unit (Output: 1). The White USB-A charging port (Output: 2) is spare and can be used to charge secondary devices such as mobile phones / navigation units. The USB ports found in vehicles only provide a 5 Vdc power output, but the Qualcomm power supply that is included is designed to provide 5 Vdc / 9 Vdc / 12Vdc Outputs to support the 7.5W / 10W / 15W fast-charging modes. We do not recommend connecting the wireless charging holder directly to the vehicles USB power supply because it will only provide 5W charging. This is a 15W fast charging holder. Fast charging is device dependent.
