727366 - Aktív tartó fix bekötéssel

727366 - Aktív tartó fix bekötéssel

USB-A kábellel. 2 USB-A port: QC 3.0A + 2.4A. Dönthető és forgatható. 12/24 V. Eredeti tokkal (CT47-PB-1) rendelkező eszközökhöz. Kiterjesztett akkumulátorral rendelkező/nem rendelkező eszközökhöz (CT4X-BTEC-001), kézi pánnat (CT47-HS-3PK-2) (CT47-HS-FM). Easy-switching rendszerrel.

Normál ár 85.990 Ft
Normál ár Akciós ár 85.990 Ft
Akciós Elfogyott

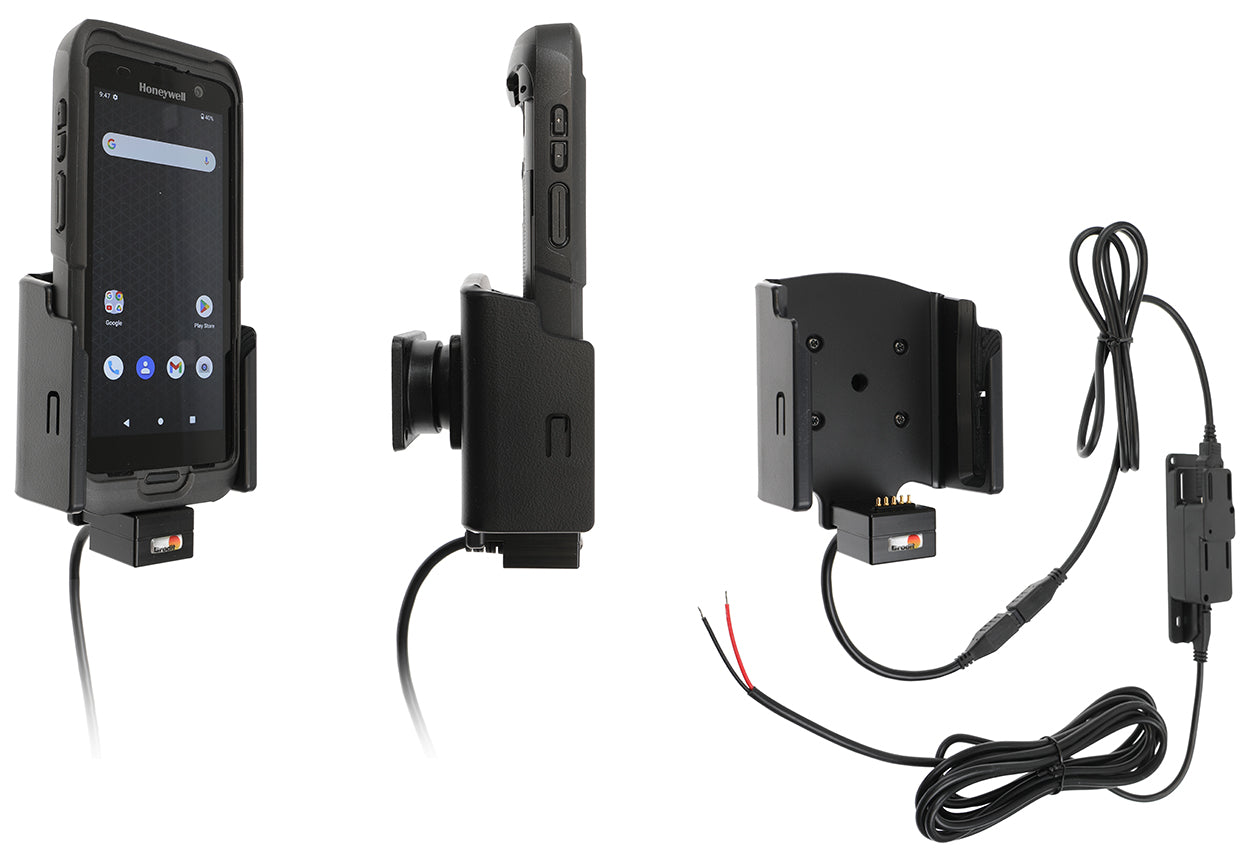

Keep your phone's battery fully charged in an active holder, always within easy sight and reach! Neat, discreet and convenient. Custom made with a perfect, firm fit. For fixed installation. The holder is to be connected inside the dashboard, providing an elegant installation without any cables hanging over the interior. The charging box has two USB-A ports: QC 3.0A + 2.4A. You have full access to the camera and all buttons when the device is in the holder. It is easy to slide the phone in place in the holder so it connects to the charging, and to take it out of the holder when leaving the vehicle.


Easy-switching system:
The easy-switching system enables you to upgrade the holder only, and keep the installed cables. It saves you a lot of time! When upgrading to a new device, you do not longer need to make a full installation. Same goes for maintenance in case of warranty or damage. You simply disconnect the holder from the charging cable via the 6-pin quick connector, and then connect the new holder. The switch is done in a few seconds.

The holder is equipped with a tilt swivel so you can easily adjust the angle for better viewing, or switch between portrait and landscape mode. Tilts 17° and swivels 360°. Mounting plate 42x50 mm with 4 mm AMPS-holes. Made of high grade black ABS/Acetal plastic. Made in Sweden. Connect the power cable with a 2A fuse. Professional installation recommended. Attach onto a ProClip mounting platform.
  • Egy éves garancia
Minden részlet megtekintése

TOVÁBBI INFORMÁCIÓK

Összecsukható tartalom

Beszerelés lépései

alternatetext alternatetext alternatetext alternatetext

Kérjük, olvassa el az összes utasítást, és nézze meg a képeket, mielőtt felhelyezi a tartót.

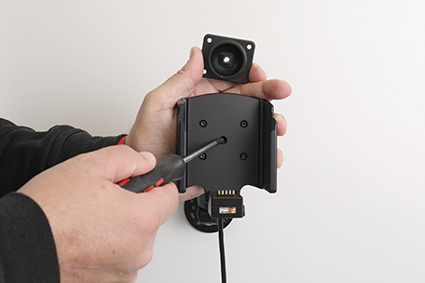

1. Lazítsa meg a tartó közepén lévő csavart, hogy eltávolíthassa a hátoldalon lévő csukló rögzítőlemezt.

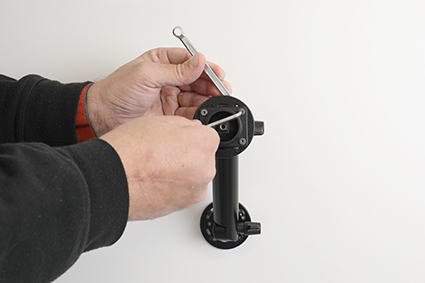

2. Helyezze a rögzítőlemezt a kívánt pozícióra. Csavarozza a rögzítőlemezt a mellékelt csavarokkal a helyére.

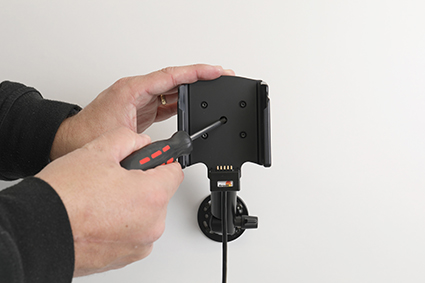

3. Helyezze a tartót a rögzítőlemez fölé úgy, hogy a csavar illeszkedjen a csukló furatába, és csavarja be a helyére. Húzza meg a csavart úgy, hogy a tartó szilárdan a helyén legyen, de még állítható legyen.

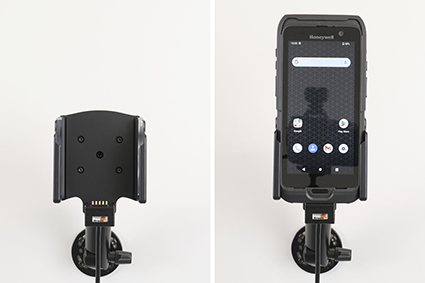

4. A tartó a helyén van.

Kompatibilis modellek

  • Honeywell CT47

Töltési specifikáció

Bemenet Molex 2-pin.Kimeneti csatlakozó típusa: A típusú csatlakozó típusa: Dual USB Type-A Female. Kimeneti feszültség: 5V, 9V, 12V (névleges) Kimeneti áram: USB port 1: 4,9V ~ 5,25V 2,4A (fehér port, ajánlott az Apple számára). USB port 2: QC3.0. 3,6V ~ 6V/3A 6,2-9V/2A 9,2-12V/1,5A (Zöld port, Android stb. számára ajánlott) Kimeneti feszültség hullámzás: Maximális terhelésnél 300mV pk-pk Bemeneti feszültségtartomány: DC 12--24V DC, a bemenet képes kezelni a 40V terhelés dömping transzlent eseményeket Bemeneti áram: 3,0 A DC Max. Bemeneti áram csatlakoztatott eszköz nélkül: 0.005A DC-DC konverziós hatékonyság: DC-DC konverziós hatékonyság: DC-DC konverziós hatékonyság: DC-DC konverziós hatékonyság: DC-DC konverziós hatékonyság: DC-DC konverziós hatékonyság: 86% feletti tipikus Névleges teljesítmény: USB port 1: 12 Watt Max. Fehér port. USB port 2: 18 watt max. Zöld port.

Ne felejtse el a járművéhez tartozó Proclipet sem:
