727477 - Aktív tartó fix bekötéssel

727477 - Aktív tartó fix bekötéssel

Charging box 60W. Dual USB ports: USB-A and USB-C, 30W/port. With tilt swivel. Fits device with Datalogic original RUBBER BOOT and Pistol Grip.

87.990 Ft
87.990 Ft
Akciós Elfogyott

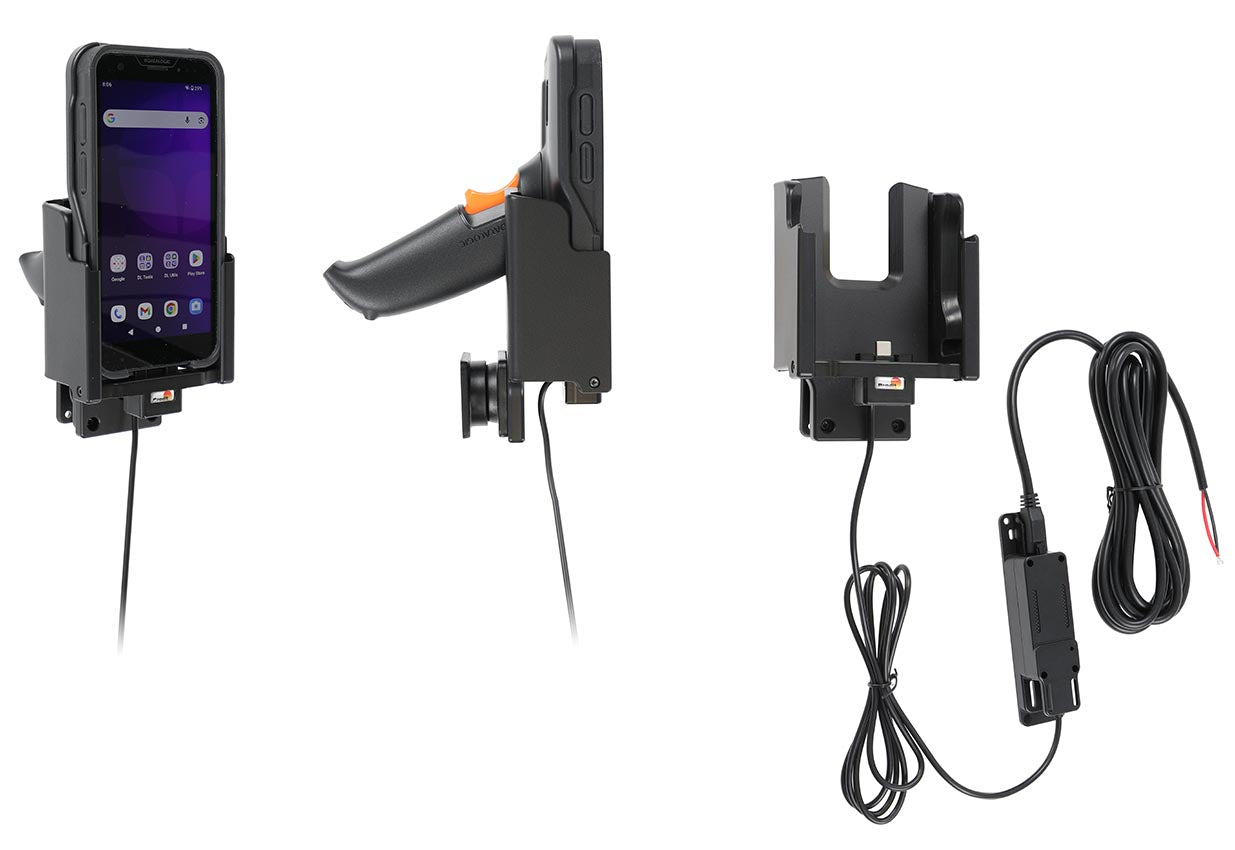

Charging holder with hard-wired power supply for a discreet, neat installation without cables hanging over the interior! Keeps your battery fully charged at all times and your device in an upright position for better reception. Provides for safer driving when viewing, accessing and operating your device in your vehicle. Custom made design with a perfect, firm fit. Easy dock/undock your device with one hand.

Charging via USB-C connector enables for quick charging. The charging box has two USB ports: Type-A (free for power supply of additional device) and Type-C (connected to the holder). 12/24Volt.

The holder is equipped with a tilt swivel so you can easily adjust the angle for better viewing, or switch between portrait and landscape mode. Tilts 17° and swivels 360°. Mounting plate 42x50 mm with 4 mm AMPS-holes. Made of high grade black ABS/Acetal plastic. Made in Sweden. For easy and optimal installation, attach the holder onto a custom ProClip Vehicle Mount, a Pedestal Mount or attach it directly to any surface.
  • Egy éves garancia
Minden részlet megtekintése

TOVÁBBI INFORMÁCIÓK

Beszerelés lépései

alternatetext alternatetext alternatetext alternatetext

Please read all of the instructions and  look at the pictures before attaching the holder.

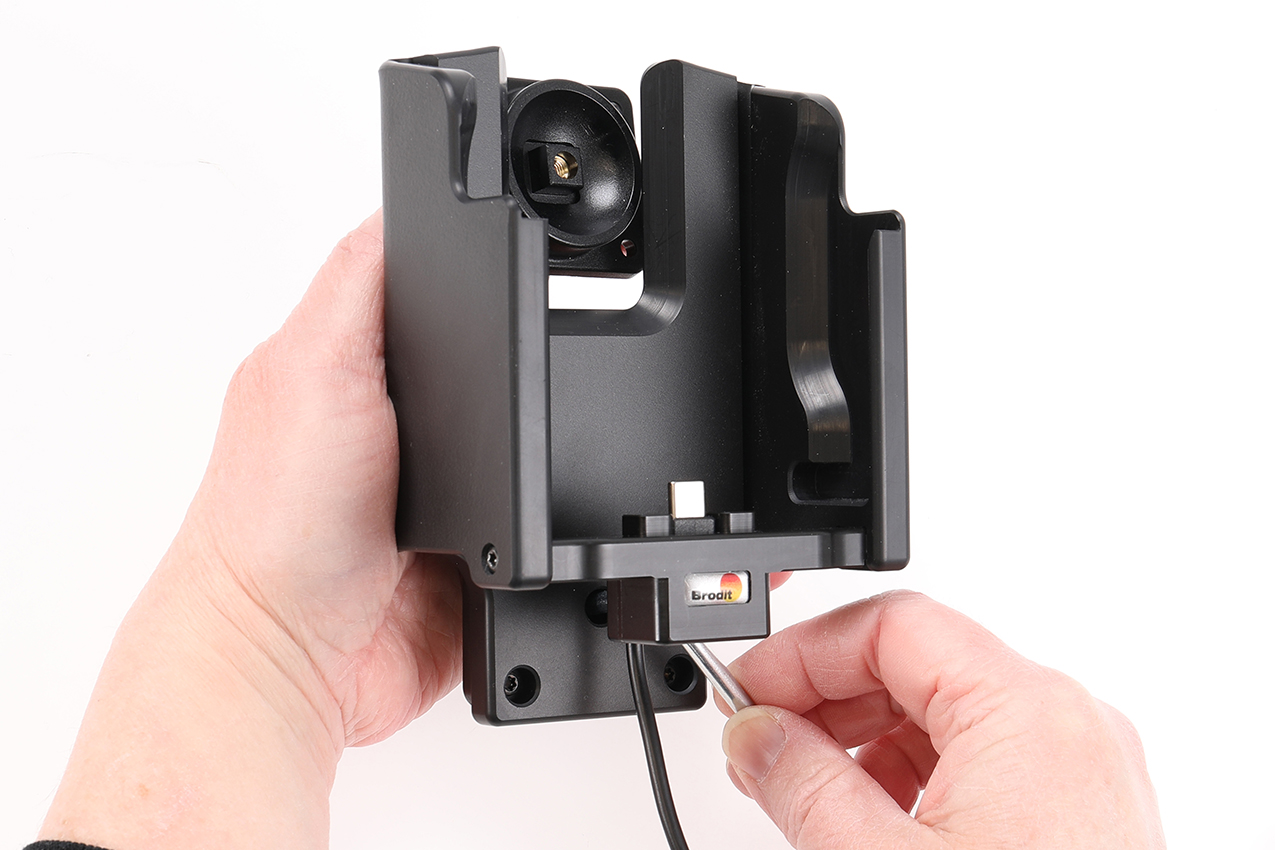

1. Loosen the screw in the center of the holder with the enclosed key so you can remove the tilt swivel attaching plate on the back.

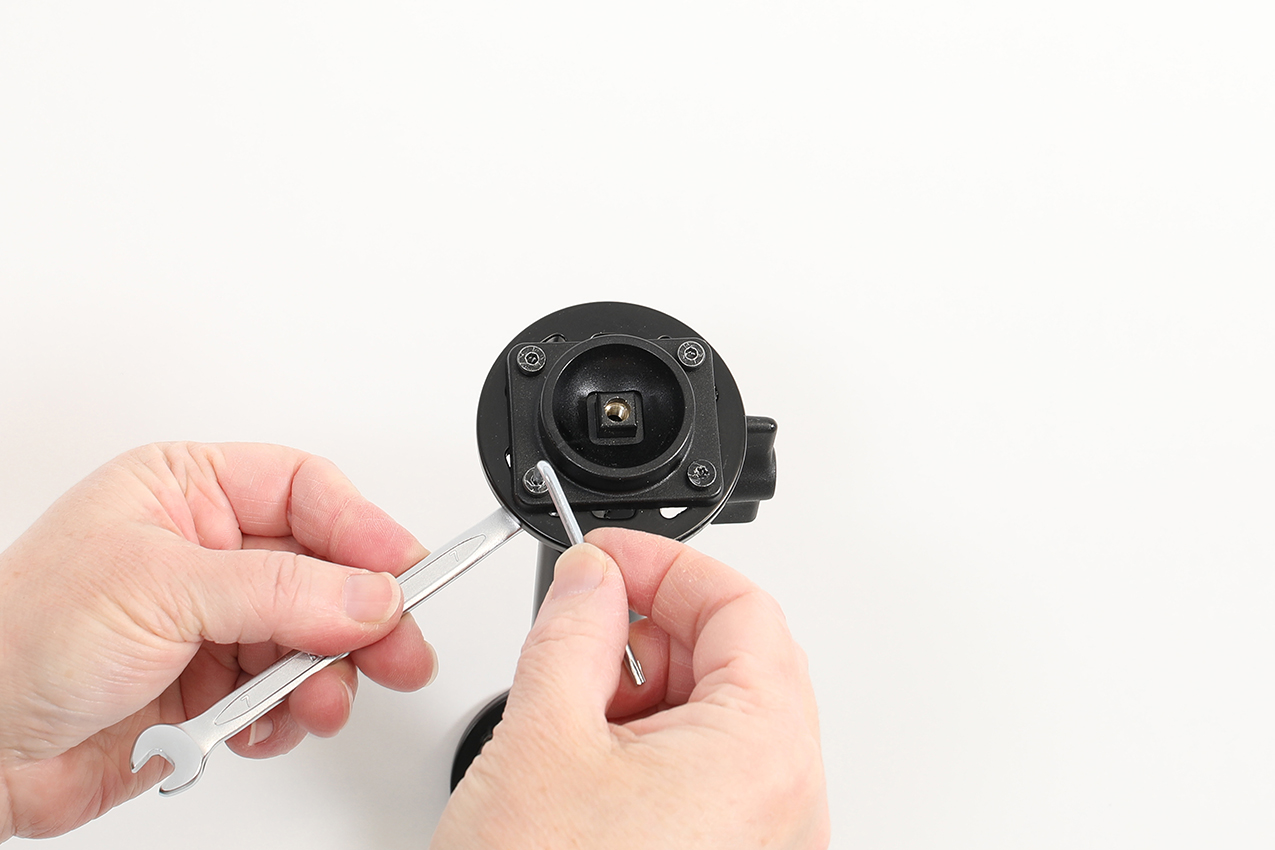

2. Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws.

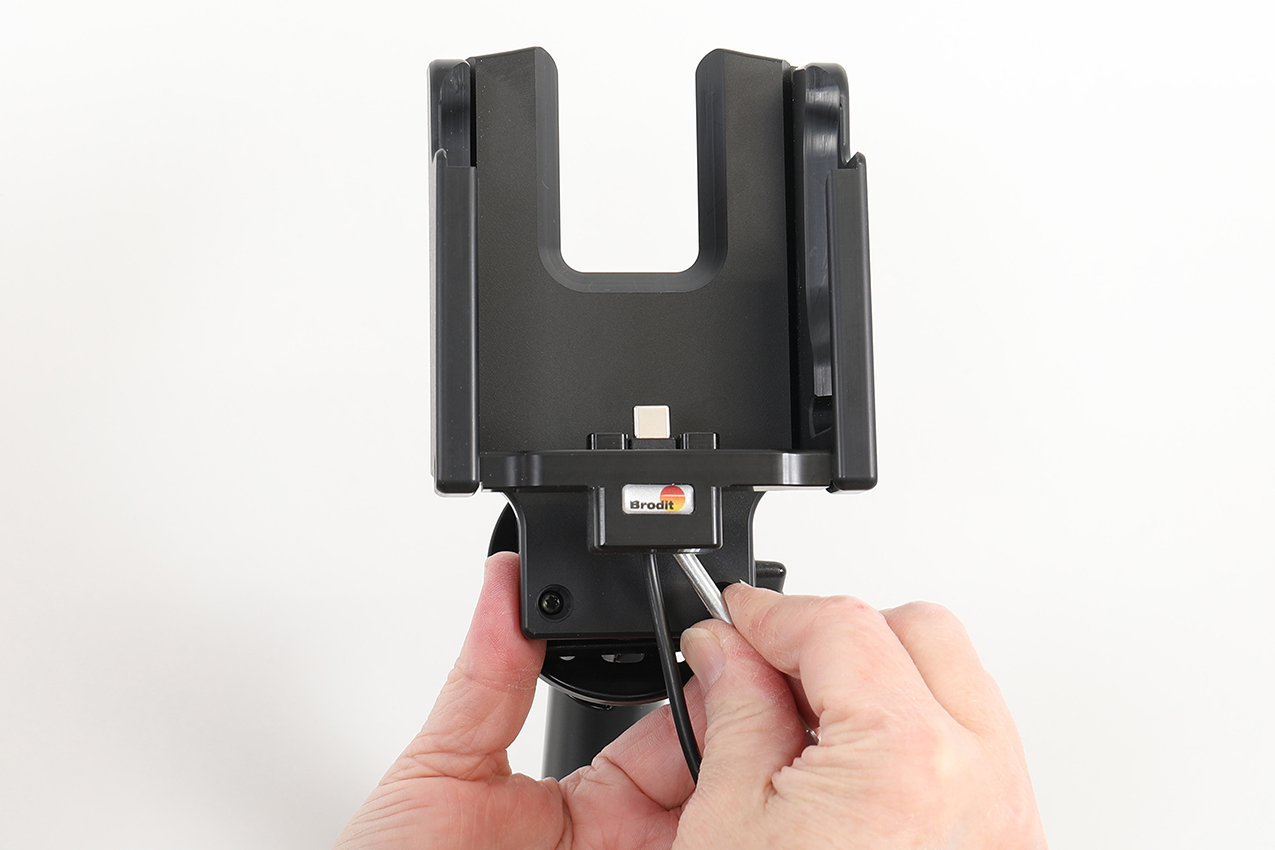

3. Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel and screw it into place with the key. Tighten the screw so the holder is firmly in place, but still can be adjusted.

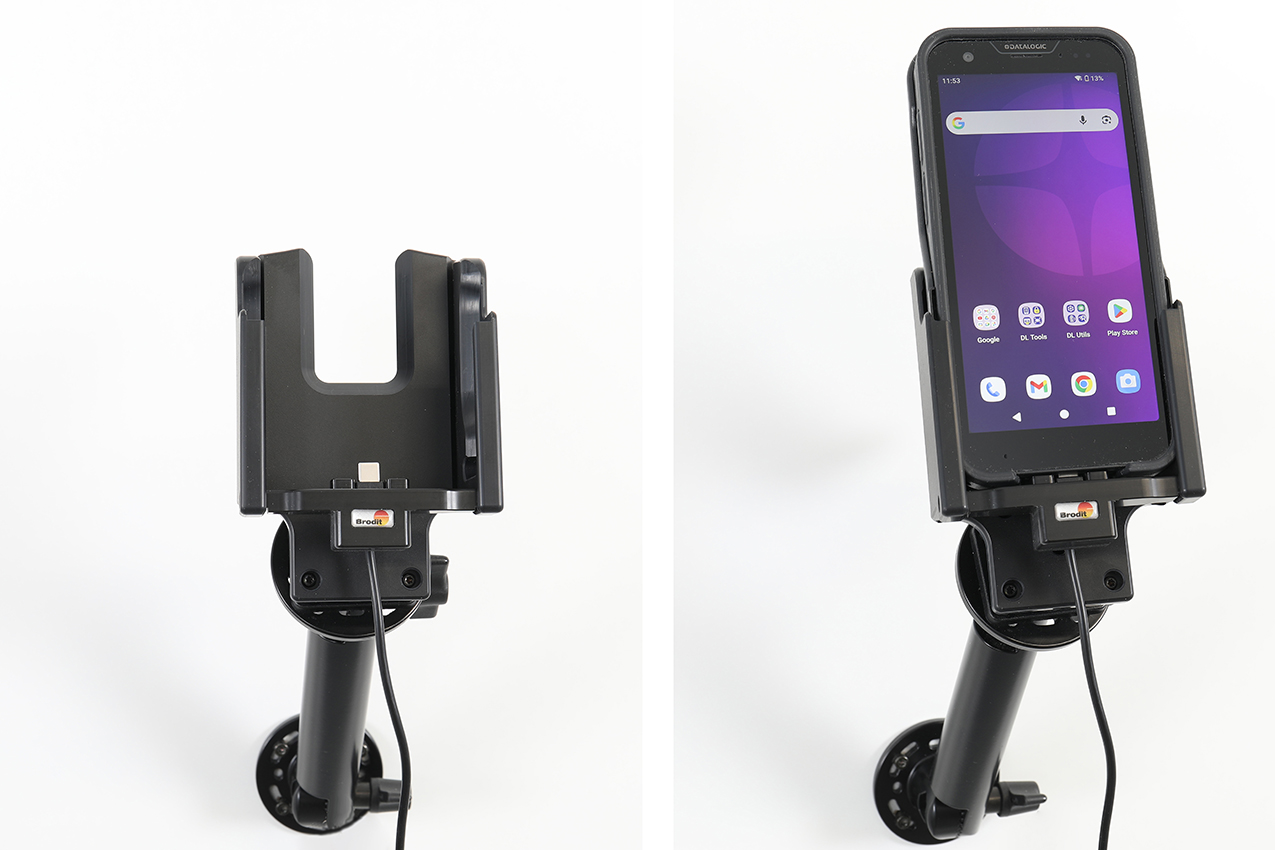

4. The holder is in place.

Használati útmutató letöltése

Kompatibilis modellek

  • Datalogic Memor 30
  • Datalogic Memor 35

Töltési specifikáció

Bemenet: DC 12-24V, Max 7A
Kimenet USB-C: DC 5V/3A, 9V/3A, 12V/2.5A, 15V/2A, 20V/1.5A Max 30W. PPS (DC 3.3-11V/3A)
USB-C Töltési Protokollok: PPS, PD 3.0, PD 2.0, QC 3.0, QC 2.0, AFC, FCP, PE 2.0, BC1.2, DCP, Apple 2.4A
Kimenet USB-A: DC 5V/3A, 9V/2A, 10V/2A, 12V/2.5A Max 30W
USB-A Töltési Protokollok: QC 3.0, QC 2.0, AFC, FCP, HVSCP, PE 2.0, BC1.2, DCP, Apple 2.4A
Méretek: 12,4cm(H)*3cm(Sz)*2,6cm(M)
Tanúsítványok és Tesztelési Szabványok, CB+CE-Biztonság, UKCA-Biztonság, CE-EMC, UKCA-EMC, FCC-SDOC & IC
VOC, CA PROP 65, RoHS, REACH SVHC 241, NOM, ECE, ESD (10KV Közvetlen és 16KV Lég).
