736458 - Zárható tartó kulccsal

736458 - Zárható tartó kulccsal

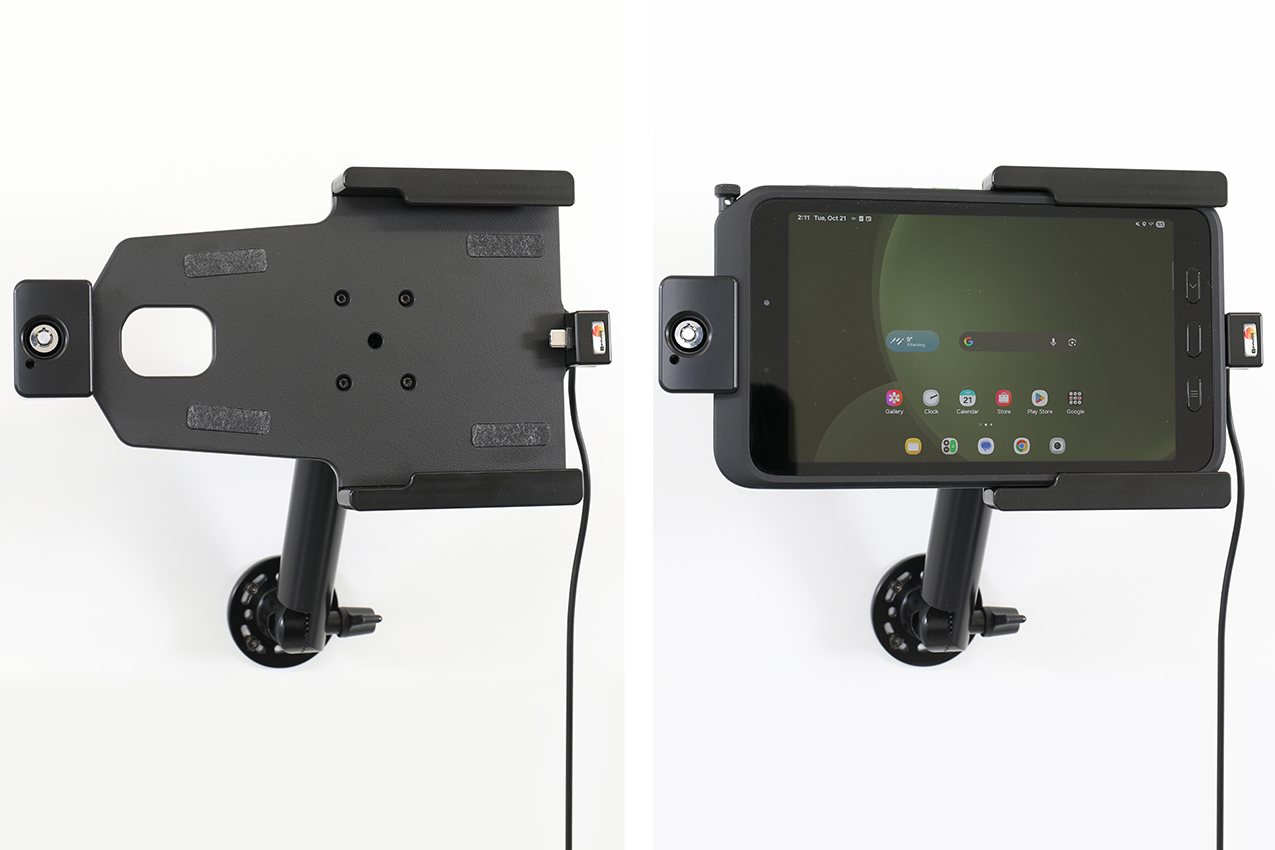

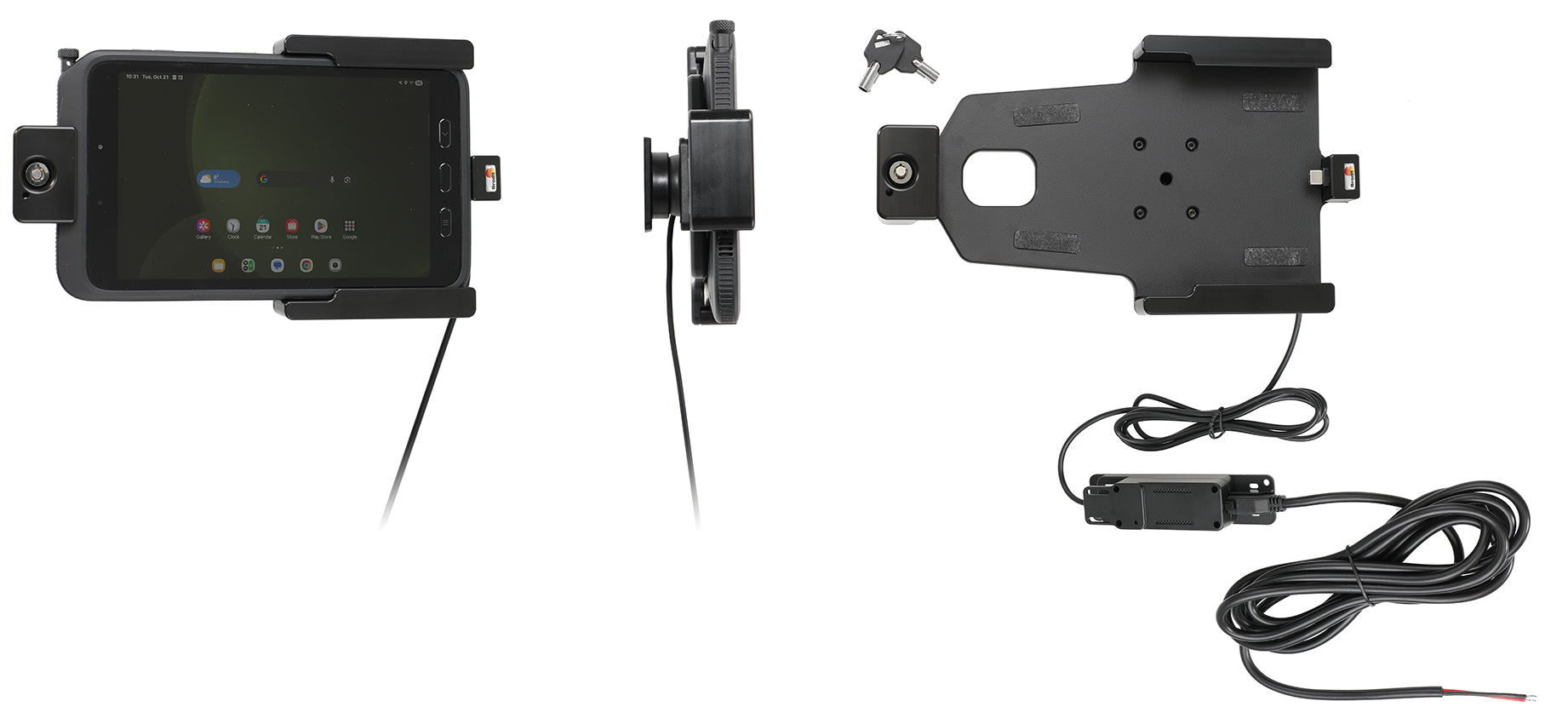

Active holder for fixed installation. With USB-C cable. 2 USB ports Type-A and Type-C. With tilt swivel. 2 keys included. Fits the device with original skin.

Normál ár 94.990 Ft
Normál ár Akciós ár 94.990 Ft
Akciós Elfogyott
This holder is to be used when you will secure your device and still have it easy accessable. Perfect for use in stores, at exhibitions and any place where you want to use your device without having it easy removable. In order to remove the unit  from the holder you need the key or a certain amount of violence is required. The holder includes a lock and two keys.

Charging holder with hard-wired power supply for a discreet, neat installation without cables hanging over the interior! Keeps your battery fully charged at all times and your device in an upright position for better reception. Charging via USB-C connector enables for quick charging. The charging box has two USB ports: Type-A (free for power supply of additional device) and Type-C (connected to the holder). 12/24Volt.

The holder is equipped with a tilt swivel so you can easily adjust the angle for better viewing, or switch between portrait and landscape mode. Tilts 17° and swivels 360°. Mounting plate 42x50 mm with 4 mm AMPS-holes. Made of high grade black ABS/Acetal plastic. Made in Sweden. For easy and optimal installation, attach the holder onto a custom ProClip Vehicle Mount, a Pedestal Mount or attach it directly to any surface.

Choose installation placement with care, devices must not be placed in positions where they may block the view or important controls. The cradle should only be attached onto a suitable place. Installations always take place at the customer's own discretion and responsibility.
  • Egy éves garancia
Minden részlet megtekintése

TOVÁBBI INFORMÁCIÓK

Összecsukható tartalom

Beszerelés lépései

alternatetext alternatetext alternatetext alternatetext

Kérjük, olvassa el az összes utasítást és nézze meg a képeket, mielőtt felszerelné a tartót.

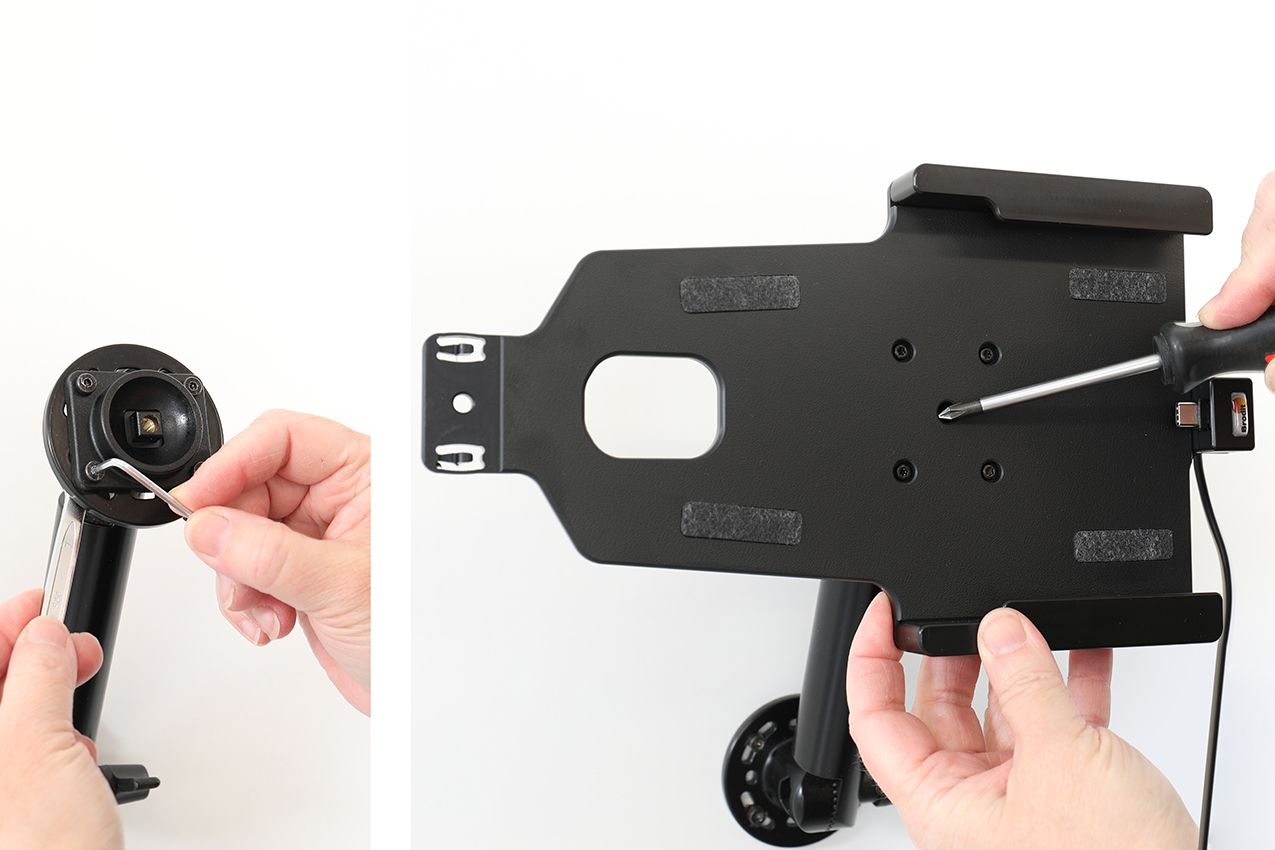

1. Lazítsa meg a tartó közepén található csavart, hogy eltávolíthassa a hátsó csuklót.

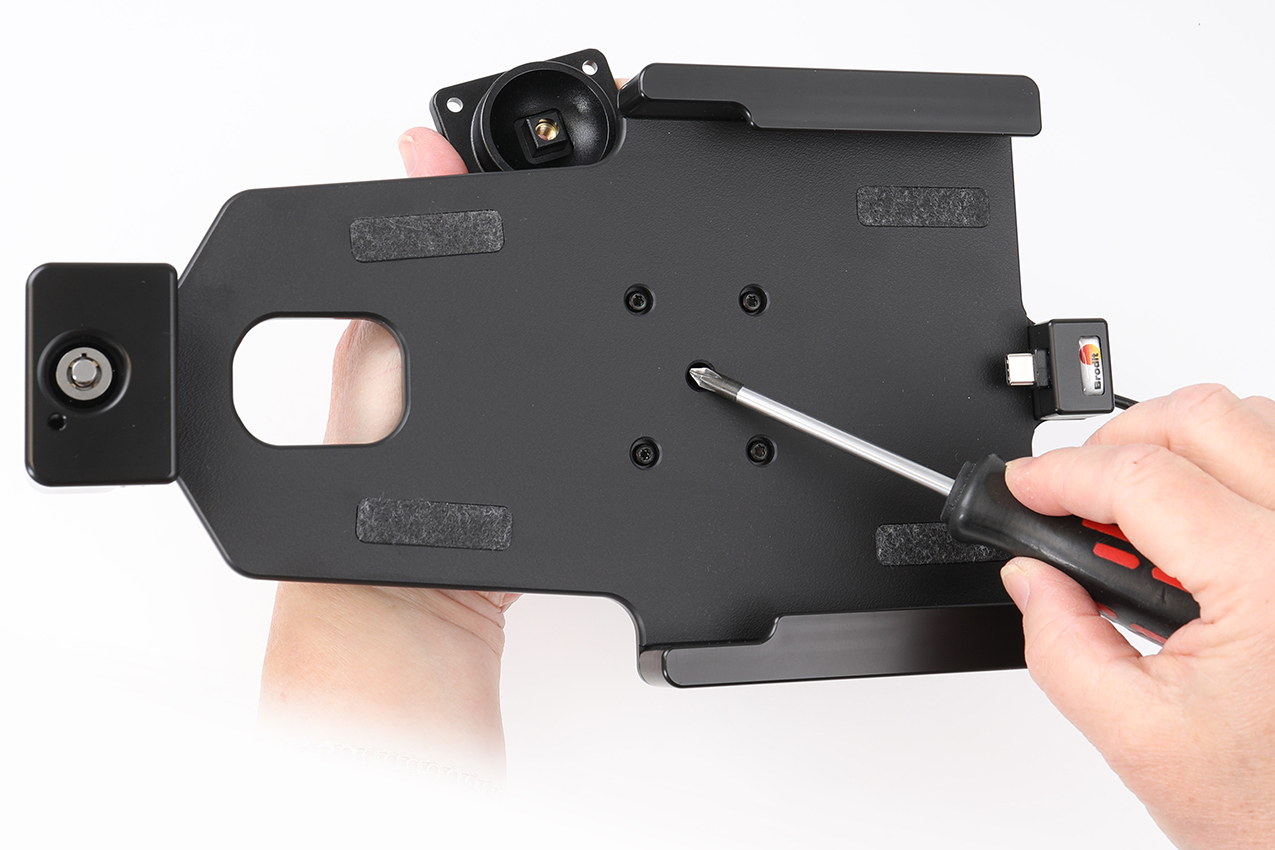

2. Helyezze a csuklót a kívánt pozícióba. Csavarozza a csuklót a mellékelt csavarokkal. Helyezze a tartót a csuklóra úgy, hogy a csavar illeszkedjen a dönthető forgócsap lyukába. Csavarozza a tartót a csuklóra. Húzza meg a csavart, hogy a tartó szilárdan a helyén maradjon, de még mindig állítható legyen.

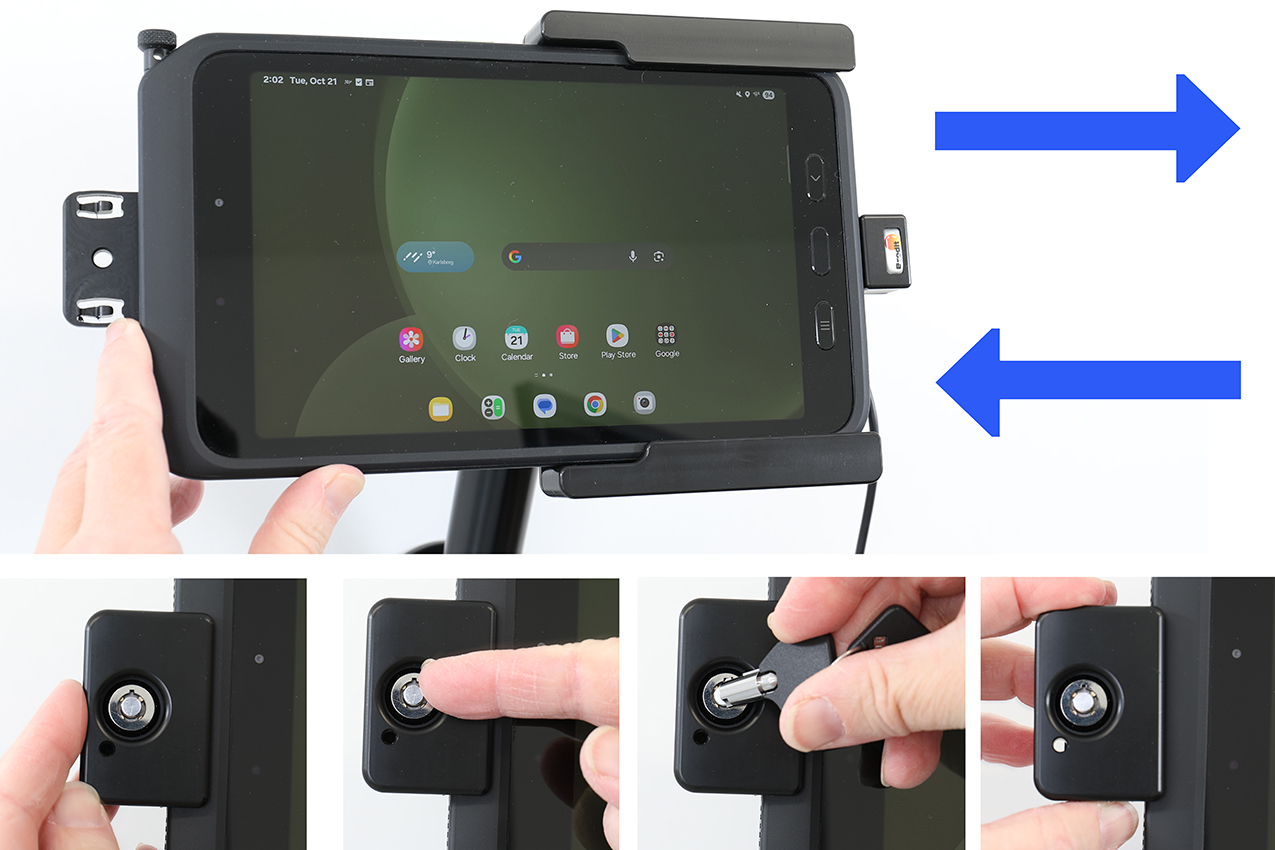

3. Óvatosan csúsztassa oldalra a készüléket a tartóba. Nyomja oldalra a reteszt a tartó bal oldalán. Nyomja meg a gombot a retesz bezárásához. A mellékelt kulccsal nyissa ki a reteszt. Oldalra csúsztatva vegye le a reteszt a tartóról. Óvatosan csúsztassa oldalra a készüléket a tartóból.

4. A tartó a helyén van. A tartó kívánt helyzetbe fordításával válthat a álló és fekvő mód között.

Kompatibilis modellek

  • Samsung Galaxy Tab Active 5 SM-X300/SM-X306B

Töltési specifikáció

Bemenet: DC 12-24V, Max 7A
Kimenet USB-C: DC 5V/3A, 9V/3A, 12V/2.5A, 15V/2A, 20V/1.5A Max 30W. PPS (DC 3.3-11V/3A)
USB-C Töltési Protokollok: PPS, PD 3.0, PD 2.0, QC 3.0, QC 2.0, AFC, FCP, PE 2.0, BC1.2, DCP, Apple 2.4A
Kimenet USB-A: DC 5V/3A, 9V/2A, 10V/2A, 12V/2.5A Max 30W
USB-A Töltési Protokollok: QC 3.0, QC 2.0, AFC, FCP, HVSCP, PE 2.0, BC1.2, DCP, Apple 2.4A
Méretek: 12,4cm(H)*3cm(Sz)*2,6cm(M)
Tanúsítványok és Tesztelési Szabványok, CB+CE-Biztonság, UKCA-Biztonság, CE-EMC, UKCA-EMC, FCC-SDOC & IC
VOC, CA PROP 65, RoHS, REACH SVHC 241, NOM, ECE, ESD (10KV Közvetlen és 16KV Lég).
