752458 - Zárható tartó kulccsal

752458 - Zárható tartó kulccsal

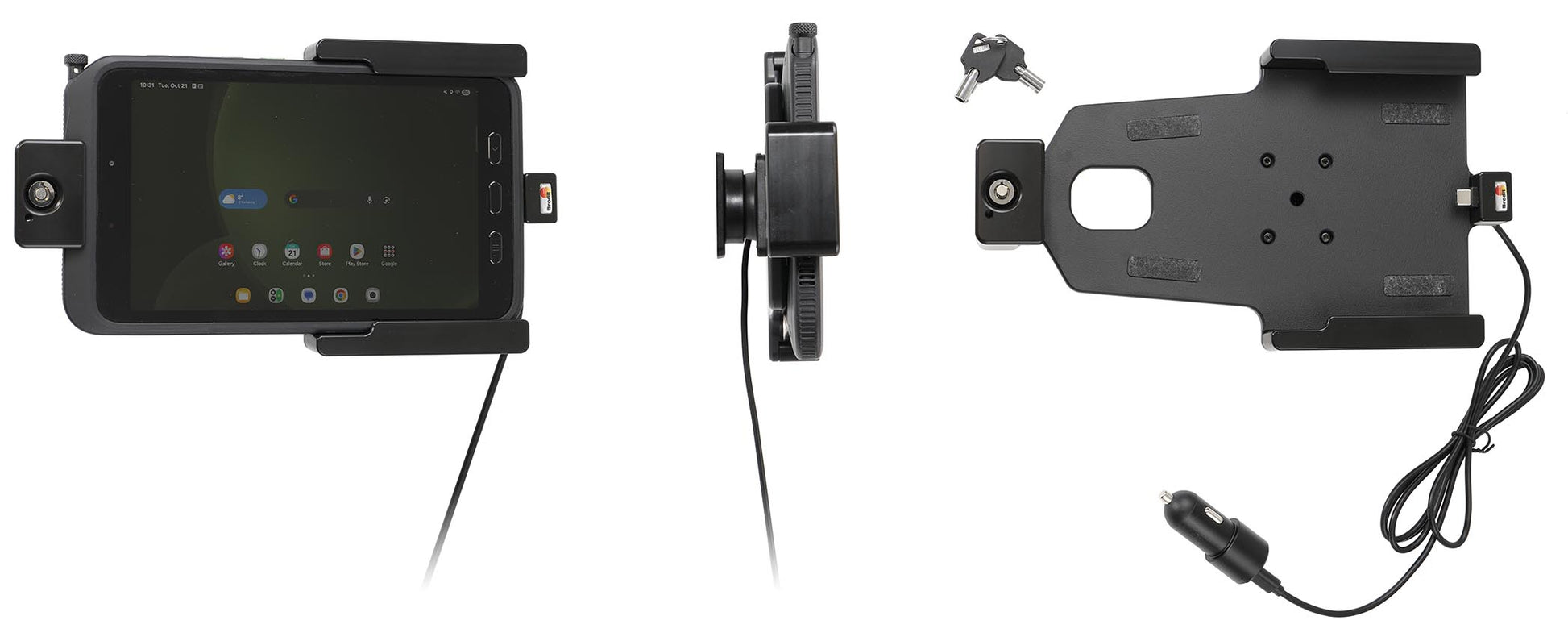

Active holder with USB-C + cig-plug adapter with 2 USB ports: USB-A and USB-C. With tilt swivel. 2 keys included. Fits the device with original skin.

Normál ár 84.300 Ft
Normál ár Akciós ár 84.300 Ft
Akciós Elfogyott
This holder is to be used when you will secure your device and still have it easy accessable. Perfect for use in stores, at exhibitions and any place where you want to use your device without having it easy removable. In order to remove the unit  from the holder you need the key or a certain amount of violence is required. The holder includes a lock and two keys.

Keep your unit's battery fully charged in an active holder, always within easy sight and reach! Neat, discreet and convenient. Custom made with a perfect, firm fit. With USB-C cable with cig-plug adapter, choose to connect either to the vehicle's USB-C outlet or the 12/24V socket. The cig-plug adapter has two USB ports: USB-A and USB-C. USB-A (free for power supply of additional device) and USB-C (connected to the holder). You have full access to the camera and all buttons when the device is in the holder. It is easy to slide the device into place in the holder so it connects to the charging, and to take it out of the holder when leaving the car.

The holder is equipped with a tilt swivel so you can easily adjust the angle for better viewing, or switch between portrait and landscape mode. Tilts 17° and swivels 360°. Mounting plate 42x50 mm with 4 mm AMPS-holes. Made of high grade black ABS/Acetal plastic. Made in Sweden. For easy and optimal installation, attach the holder onto a custom ProClip Vehicle Mount, a Pedestal Mount or attach it directly to any surface.

Choose installation placement with care, devices must not be placed in positions where they may block the view or important controls. The cradle should only be attached onto a suitable place. Installations always take place at the customer's own discretion and responsibility.
  • Egy éves garancia
Minden részlet megtekintése

TOVÁBBI INFORMÁCIÓK

Összecsukható tartalom

Beszerelés lépései

alternatetext alternatetext alternatetext alternatetext

Please read all of the instructions and  look at the pictures before attaching the holder.

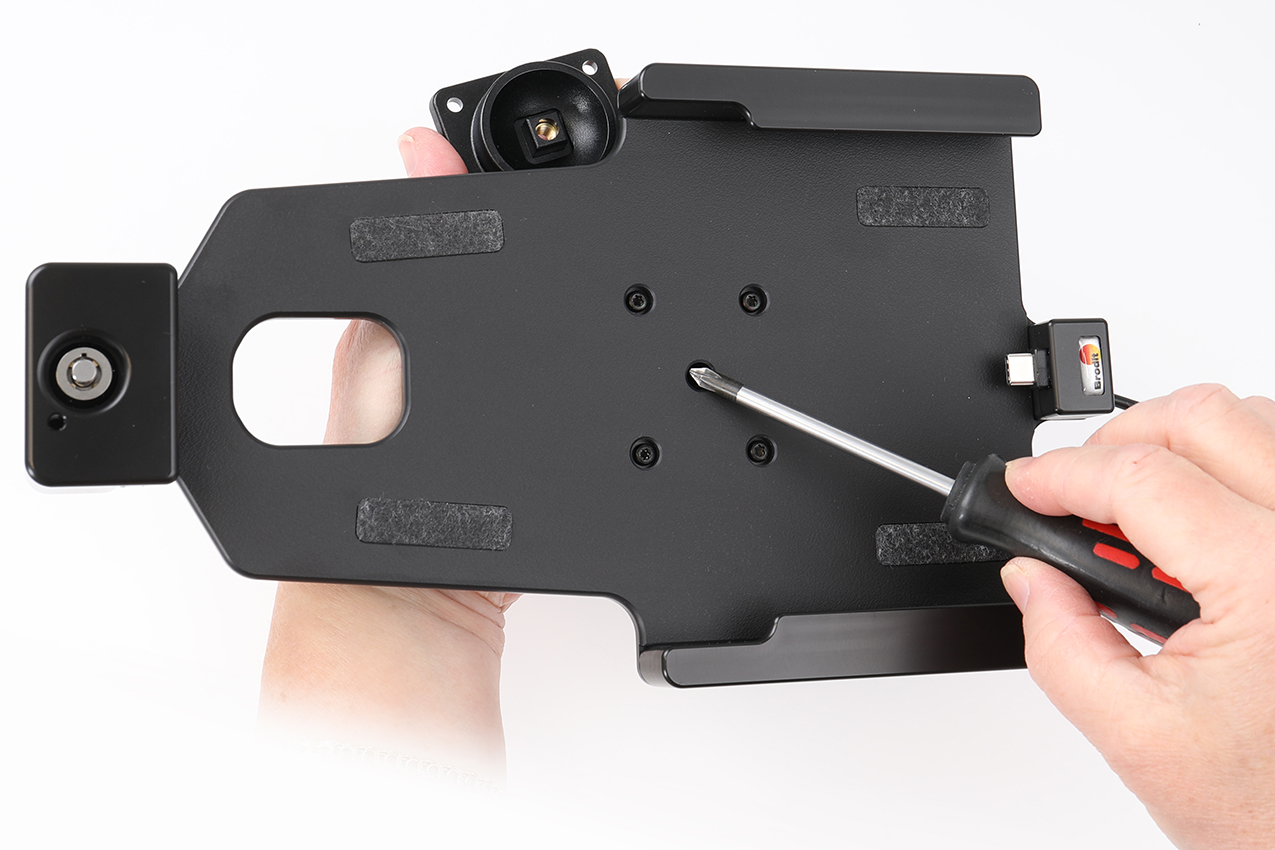

1. Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back.

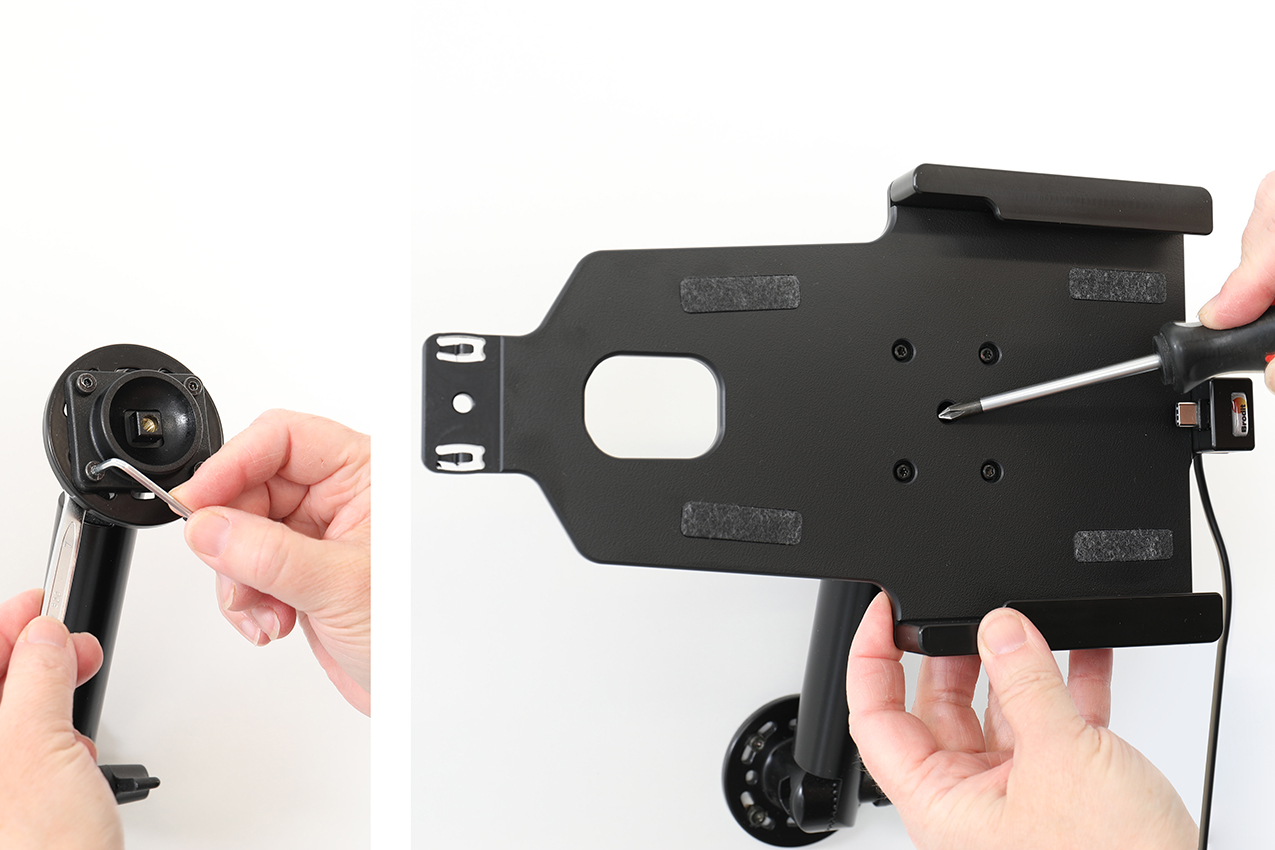

2. Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws. Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel. Screw the holder onto the attaching plate. Tighten the screw so the holder is firmly in place, but still can be adjusted.

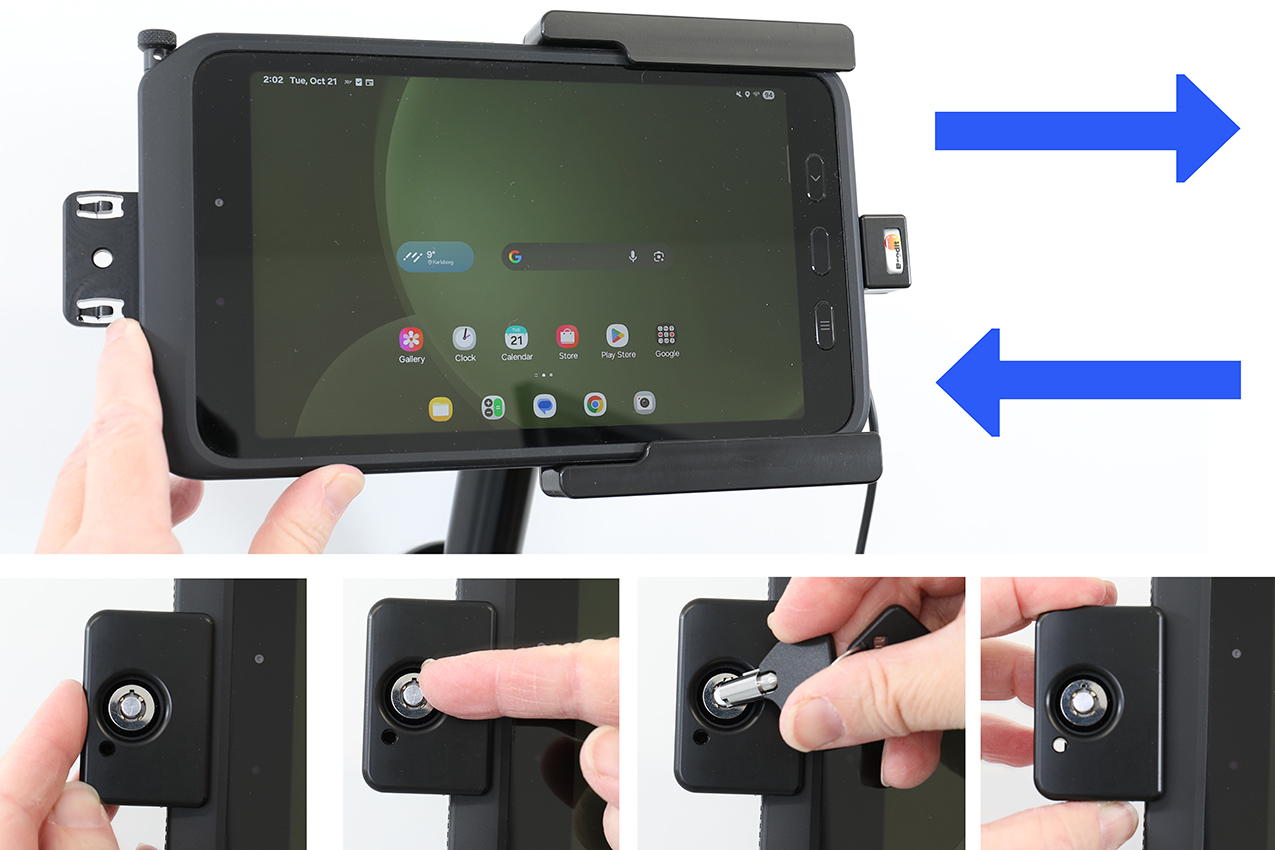

3.  Slide the device sideways carefully into the holder. Press the lock sideways onto the left part of the holder. Press the button to lock. Use the enclosed key to open the lock. Remove the lock by slidning it sideways away from the holder. Slide the device sideways carefully out of the holder.

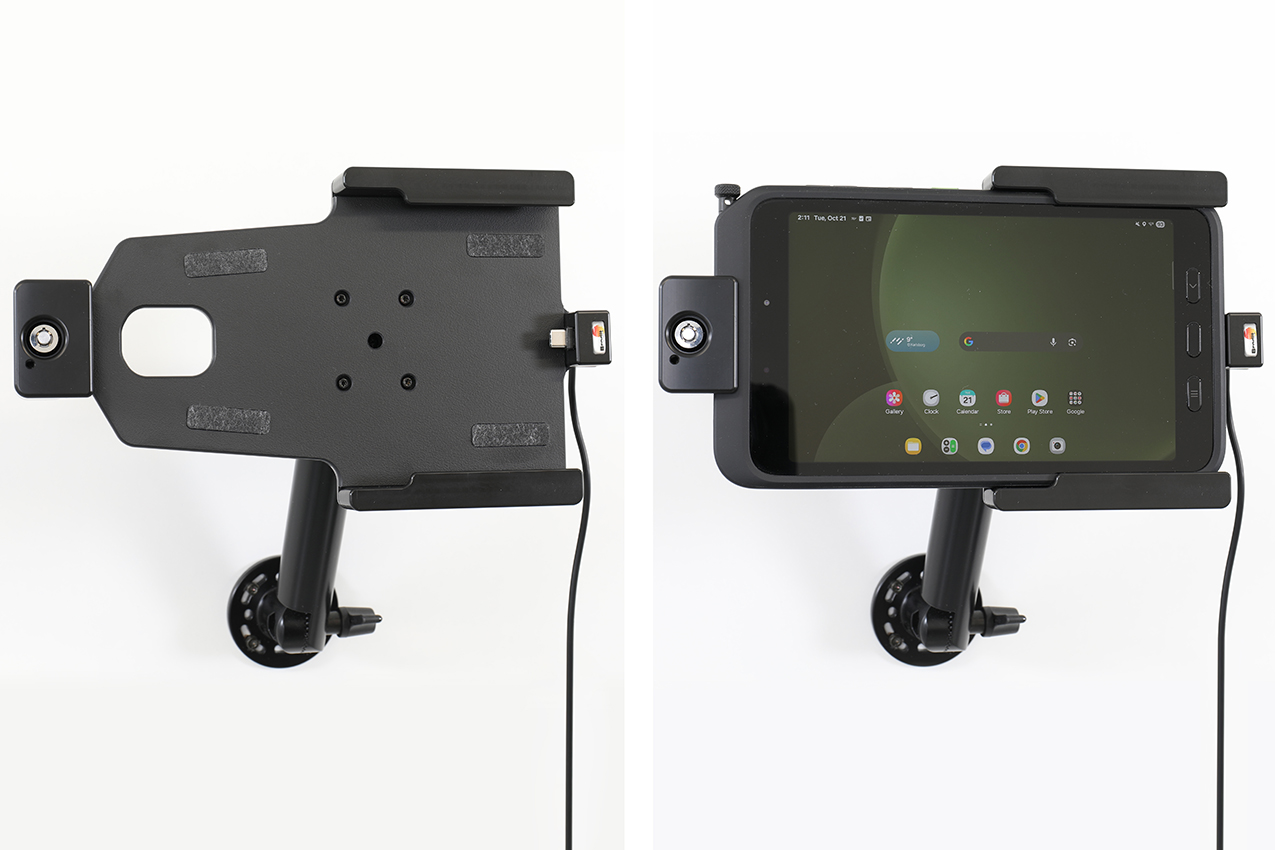

4. The holder is in place. Switch between portrait and landscape mode by turning the holder into desired position.

Kompatibilis modellek

  • Samsung Galaxy Tab Active 5 SM-X300/SM-X306B

Töltési specifikáció

- Bemeneti feszültség: DC12-24V 7A Max
- Kimenet USB-A: 5V/3A, 9V/2A, 10V/2A, 12V/2.5A 30W Max
- Kimenet USB-C: 5V/3A, 9V/2.77A, 12V/2.5A, 15V/2A, 20V/1.5A 30W Max
- Összesen: 60W Max
- Jóváhagyások: CE, RoHS, FCC, UKCA
- Anyagok: Ház: alumínium ötvözet. Felső műanyag borítás: tűzálló PC.

Ne felejtse el a járművéhez tartozó Proclipet sem:
